Specifications
5 gallon mineral water filling production line1.Automatic PLC control
2.3 &5 Gallon bottle
3.CE & ISO
4.SUS304 Material

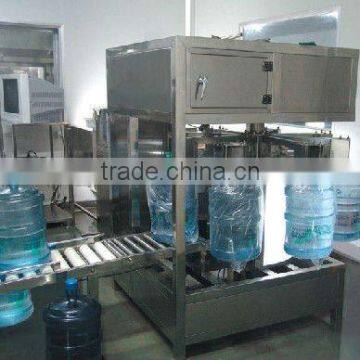

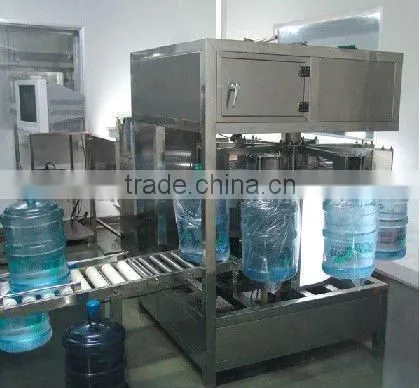

5 gallon mineral water filling production line 1.QGF series barreled production line consists of washing, filling and capping.
*It is suitable for filling all kinds of round and square barrels with drinking water.
*Those types(barrels/hour) are:100 type,150 type,200 type,300 type,450 type,600 type,900 type,1200 type.
*The whole line is made of superior stainless steel, anti-corrosive and easy to clean.
*The bottle washer can carry out multiple injections of washing to sterilize the bottles.
*This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy.
Modle |
QGF-100 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
Filling Heads |
1 |
3 |
4 |
8 |
8 |
8 |
Volume (L) |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
Barrel Size(mm) |
Φ270*490 |
Φ270*490 |
Φ270*490 |
Φ270*490 |
Φ270*490 |
Φ270*490 |
Production Capacity(b/n) |
100 |
300 |
450 |
600 |
900 |
1200 |
Gas Pressure (Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
Gas Consumption(m³/ min) |
0.37 |
0.6 |
0.9 |
1.2 |
1.8 |
2.4 |
Motor power |
1.38 |
3.8 |
3.8 |
7.5 |
9.75 |
13.5 |
Rated Voltage |
380V 50HZ |
380V 50HZ |
380V 50HZ |
380V 50HZ |
380V 50HZ |
380V 50HZ |
Weight (kg) |
680 |
1500 |
2100 |
3000 |
4000 |
5500 |
quality promise ;
*Fixed Equipment for Quality Control
*Professional team for Quality Control
*Randomly checking before get in warehouse
