Specifications
Profile Extrusion Line1,low speed ratio of cutting
2,Easy operation
3,long use-life
4Save time and high produt
SXJZ300 Profile Extrusion Line price for door and window
(Zhangjiagang City B&E Machinery Co., Ltd. )
1.Description of PVC Windows and Door Profiles Extrusion Line:
The door and windows profile is made of PVC powder. It is widely used as window and door profile, as well as decorative material. With modern technology and optimized design, it has the property of high output capacity, long life and plastic evently.
This kind of production line is designed for extrusion of PVC plastic door’s and window’s profiles and cross-section communication cable pipes, Aluminum-plastic composite profiles, etc. It has stable plastification, high output, low sheering force, long life service and other advantages. PVC profiles can be used in the building industry and home or office.
This PVC Door Window and Profiles Extrusion Line consists of control system, conical twin screw extruder, extrusion die, calibration unit, haul-off unit, film covering machine and stacker. The extruder is equipped with alternating-current converter, imported temperature controllers. The calibration unit’s pump and haul-off unit’s reducer are the famous brand products.
After simple changing of the die and crew, it also become possible to produce foam profiles.
2.Main Technical Data
Model | Max.Width mm | Extruder | Assistance Power | Output kg/h | Speed m/min |
SJSZ-180 | 180 | 51/105 | 22kw | 80-100 | 0.6-6 |
SJSZ-240 | 240 | 65/132 | 26kw | 180-240 | 3-3.5 |
SJSZ-300 | 300 | 80/172 | 30kw | 300-350 | 4-5 |

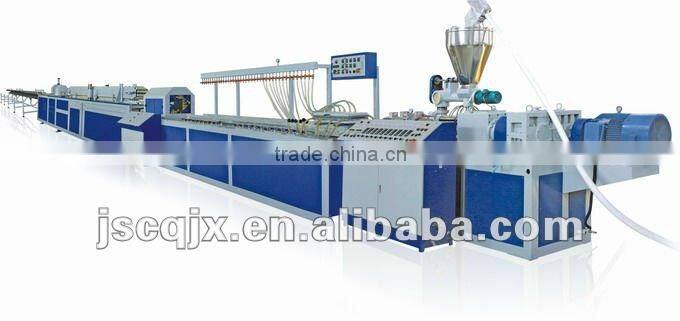

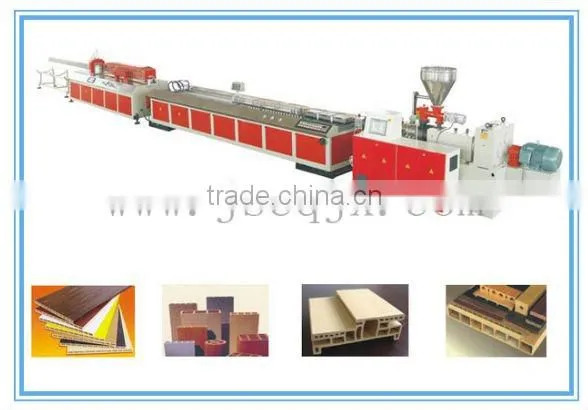

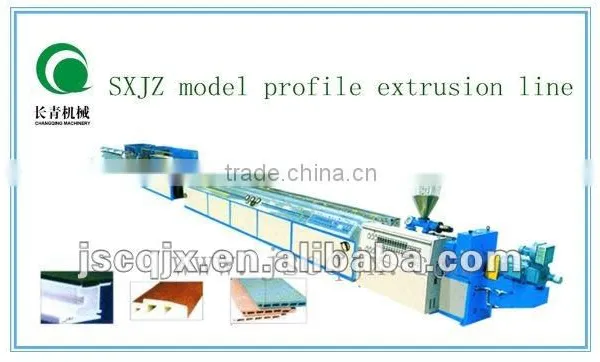

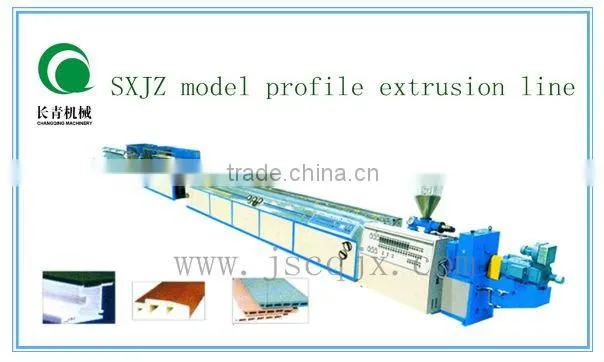

Machine image shows:
Double Screw Profile Extrusion Line
(Zhangjiagang City B&E Machinery Co., Ltd. )
