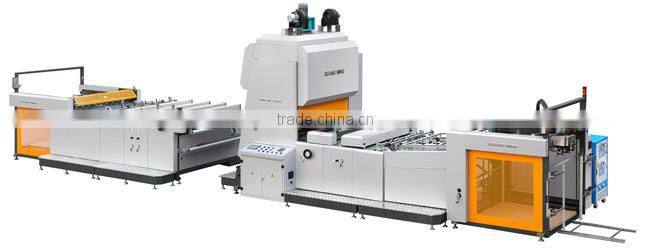

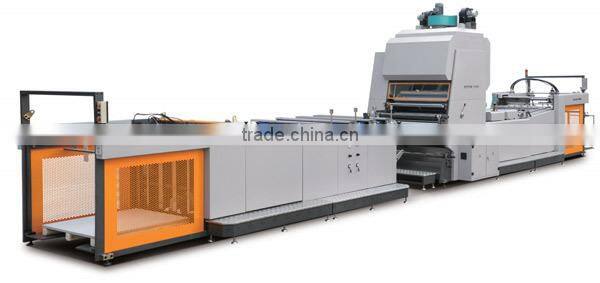

SDFM-1100Fully automatic High-speed water-base Laminator
APPLICATIONS:
The multi-functional laminator suits water-base lamination, oil-base lamination, glueless film lamination and pre-glued film lamination.

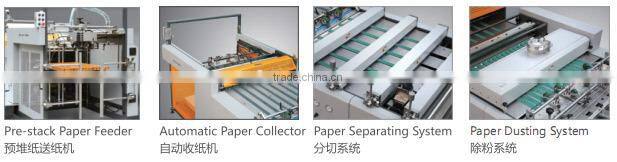

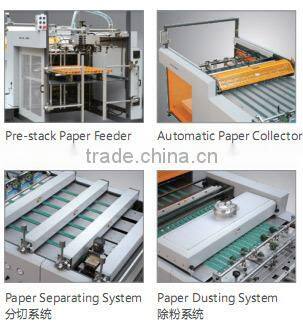

1.Pre-stack paper feeder improves working efficiency;belt conveyor furnished with air aspirator regulates
conveyed paper sheets much better.
2.Dusting system clears efficiently dust on paper surface, and perfects laminating quality so much.
3.Big diameterr of mirror laminating roller is equipped with water cycle heating system.
4.Ceramic,which is netlike design,furnished with frequency converter can adjust the speed
independently. What's more, it could make coating more even and avoid wasting the glue.
5.Film release device is equipped with air expansion shaft and clutch to control film tension.
6.The adjustable air expansion shaft can load and release the film more conveniently. It's easy to operate.
In addition, it will not make the coating with glue corrugated while running.
7.Pneumatic paper collector can be adjusted easily upon needs, and receives paper sheets regularly.
8. The imported servo motor and Taiwan side lay which can be adjusted could efficiently keep the
machine running precisely.
Model | SDFM-1100 |
Max Paper Size | 1100×1200mm |
Min Paper Size | 300×300mm |
Laminating Speed | 10-65m/min |
Paper Thickness | 100-500gsm |
Voltage | 380V |
Gross Power | 60 kw |
Overall Dimensions | 13000×2600×3100mm |
Weight | 9000kgs |
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
