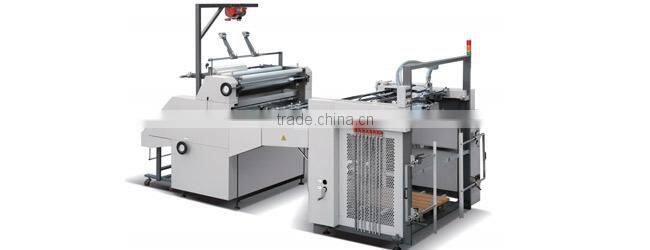

SZFM-1100AAutomatic Water-base Laminator
Model SZFM-1100A is an automatic water-base laminator updated upon previous model SZFM-1100 and long-term of application experience. If compared with SZFM-1100, this model is of much more humanization and automation. Color touch screen makes the control of mechanics, electrics, pneumatics and photoelectricity much more simple and convenient. Pre-stacker feeder, electric film lifer etc. automated equipments improve further the machine working efficiency. SCHNEIDER, OMRON etc international brands of electrical and photovoltaic parts equipped perfect the running stability and safety of the laminator. For high efficiency of water-base lamination, this model is an excellent choice.
APPLICATIONS:
To suit automatic water-base lamination
1.Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically. And paper can be added even when the machine is kept running.
2.Automatic paper feeding system is equipped with no paper protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. When no paper, paper break or paper superposition occurs, the machine will stop automatically for self-protection.
3.Conveying table is furnished with air aspirator, side lay and front lay etc. to guarantee paper conveying and overlap stable and regular, and paper feeding precision can be perfected effectively.
4.Automated operation is controlled by PLC system. Color touch screen simplifies the machine operation.
5.Transmission system equipped SCHNEIDER frequency converter for continuously speed variation. Speed adjustment is more stable and accurate.
6.Dip coating saves glue, and ensures glue coating homogenized. And the thickness of glue coating is adjustable.
7.Glue supplying system supplies and recycles water-base glue automatically for water-base lamination.
8.Electric lifter of film roller settles the loading trouble of big and heavy film roll.
9.Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
10.Serrated perforating wheel perforates film edge for the automatic cut of laminated paper.
11.PHILIPS IR drying lights guarantee smooth working in damp atmosphere.
12.Automatic rewinder can roll up laminated paper automatically. And magnetic powder clutch is equipped on the rewinder to make the adjustment of rewinding tension more convenient and effective.
13.The winded paper shall be put on cutting machine for automatic cut.
Technical Parameter:
|
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
