Specifications
CE certifacation; ISO 90012. Excellent plasticity
2. PLC control
3. Special twin screw
pvc pipe production machine
No. |
Machine |
Qty. |
1 |
ZJF Feeder |
1set |
2 |
SJZ80/156 conical twin-screw extruder & Electrical cabinet |
1set |
3 |
SJZ65/132 conical twin-screw extruder & Electrical cabinet |
1set |
4 |
Mould for drain pipe |
|
5 |
Vacuum Calibration tank |
1set |
6 |
Haul-off (four claws) |
1set |
7 |
Planetary cutter |
1set |
8 |
Stacker |
1set |
|

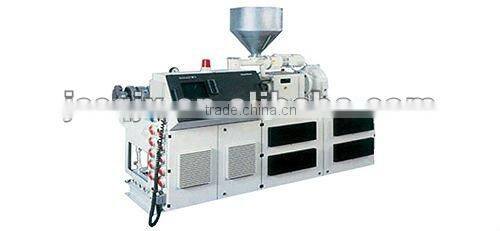

SJZ80/156 conical twin-screw extruder
|
Screw diameter:80/156mm Machine barrel and screw material:38CrMoAl nitriding processing Effective length of screw:1800mm Screw speed:4-32rpm Rotating direction:opposing outward Main motor power:55KW Speed of main motor:1500rpm Drawing-in device:feeding frequency 0.75KW Vacuum pumping system: 2.2KW output:300-400Kg/h heating sections and power:machine barrel 4 sections ;36KW center height:1000mm machine barrel cooling –down system:wind cooling control circuit apparatus:main motor adopts DC motor speed regulator;temperature controller adopts Siemens;contactor and circuit breaker adopts Siemens.
|

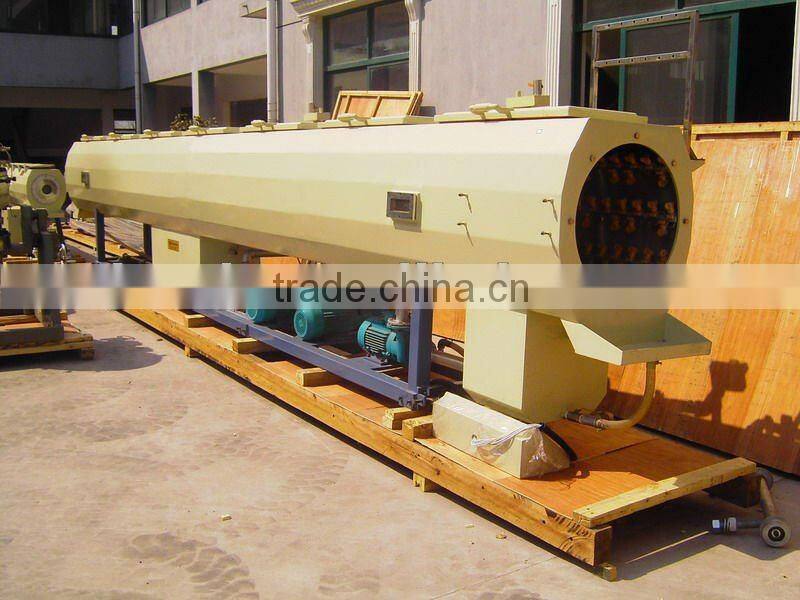

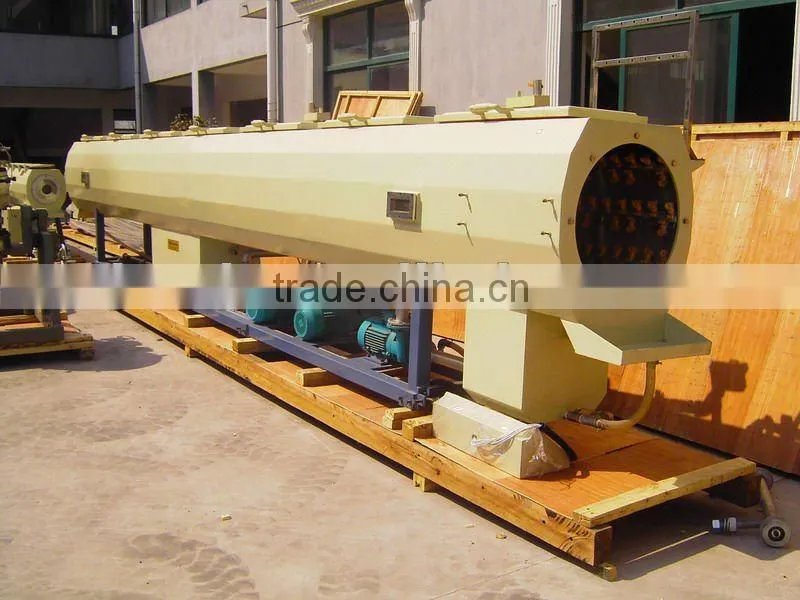

Vacuum calibration tank |
Vacuum Water spray Moving |
|
|
Vacuum pump power:4*2KW
Water pump power:4KW×2units
Cycloidal-pin gear speed reducer:1.5KW
Length:6 meters
Material :stainless steel Pipe scope: φ110-φ250
| ||
