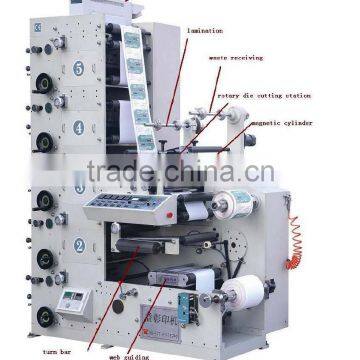

Specifications
Adopts ceramic mesh roller to convey ink.Magnetic powder brake and slutch control the feeding and rollingor discharging
Parameters:
1. Adopts ceramic mesh roller to convey ink.
2. Magnetic powder brake and slutch control the feeding and rollingor discharging.
3. Each printing unit adopts 360-degree registering adjuster.
4. Each printing unit is equipped with an assemble of auto infrared drying installation.
5. The inking roller can depart fromth emachine and rotate at low speed in order to keep the ink from drying when its stops.
6. The main motor adopts stepless governor converter.
7.It can finish in one time from feeding paper webs ,printing, printing in corotating-reverse manner, glazing, automatic infrared drying, laminating, cross cutting and rolling. It is an ideal machine for the printing factories to print high-grade self-adhesive trademarks.
Main technical parameter:
Model |
HSR320-6B |
HSR480-6B |
Printing speed |
50m/min |
50m/min |
Printing color |
4colors |
6colors |
Max. Web width |
330mm |
480mm |
Max. Printing width |
320mm |
460mm |
Max. Unwinding diameter |
600mm |
600mm |
Max. Rewinding diameter |
550mm |
550mm |
Printing girth |
180-420mm |
180-420mm |
Precision of registration |
±0.10mm |
±0.10mm |
Dimensions |
2100*1100*2500(mm) |
2300*1200*2700(mm) |
Machine weight |
About 1800kg |
About 1900kg |
