Help CenterLarge Caliber UPVC Water Pipe/cable Pipe Extrusion Machine/line
Related Products
Specifications
large caliber UPVC pipe production line1,Traction big
2,Traction stability
3,easy operation
4,CE
PVC pipe production line with competitive price
PVC pipe production line is mainly used to produce PVC pipes with various diameters in the aspects of agricultural irrigation, water supply, drainage and wire conduit etc. The extruder adopts frequency conversion.The screw core adopts automatic system to control the temperature.The screw adopts specially designed super cone structure. The output can be increased by 50% and 20-30% power saving. Hardened reducer can continuous trouble-free operation. All units integrated design,the host and the auxiliary work at the same time. It’s an ideal line for production of pipes with high efficiency, high performance, high stability.
The main components of PVC,UPVC ,CPVC pipe machine including:
1. powder feeder

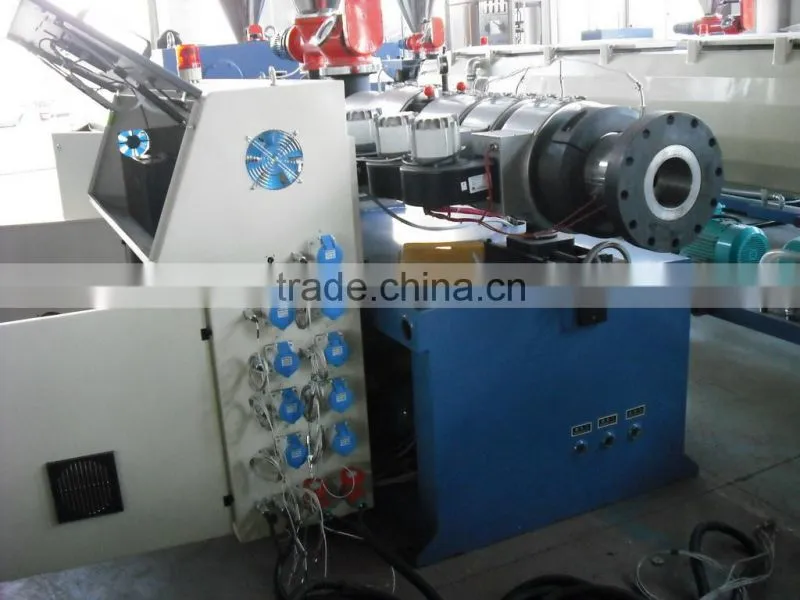

2. twin-screw extruder

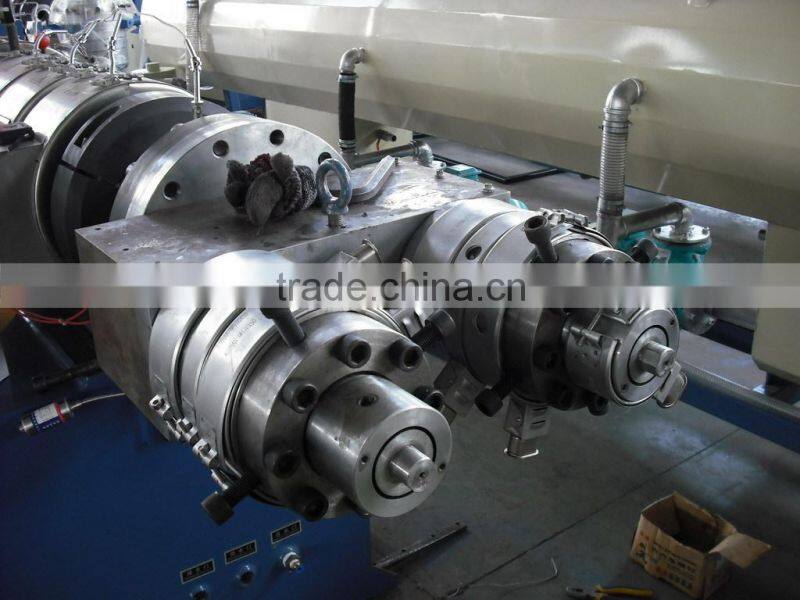

3. mould

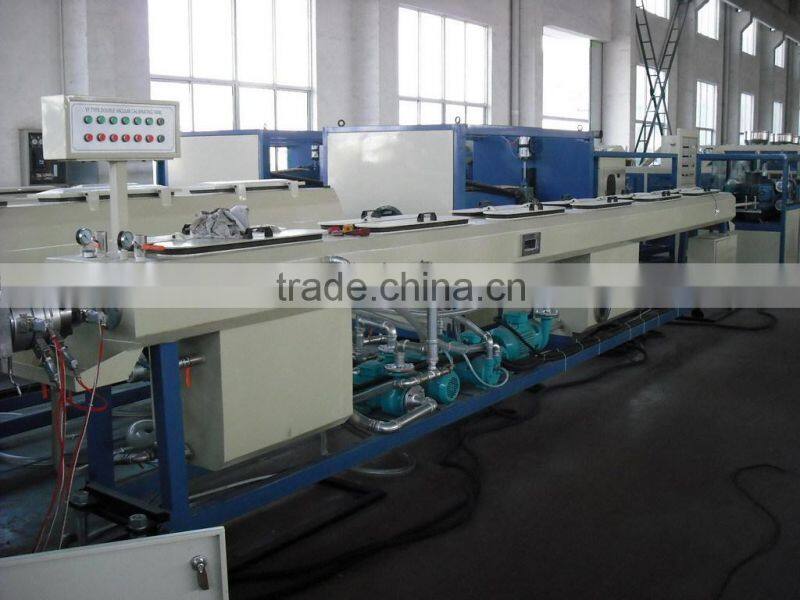

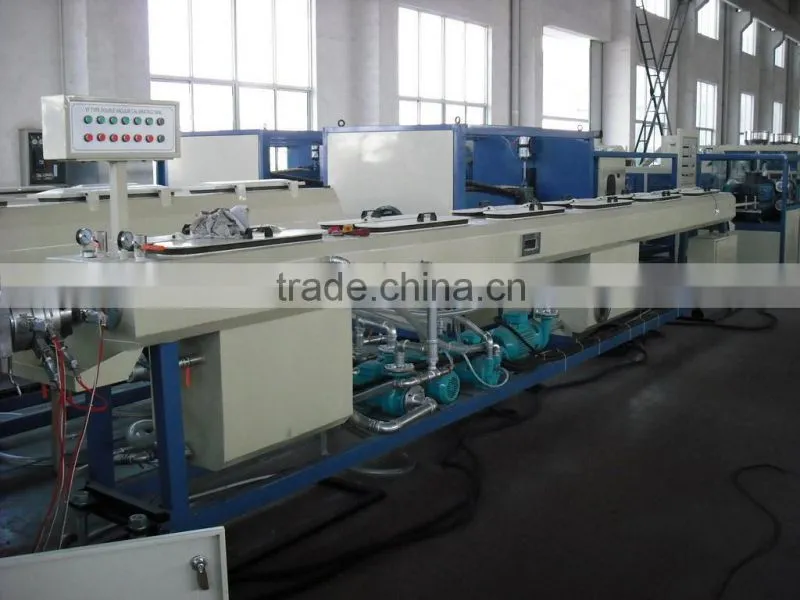

4. vacuum calibration and cooling unit

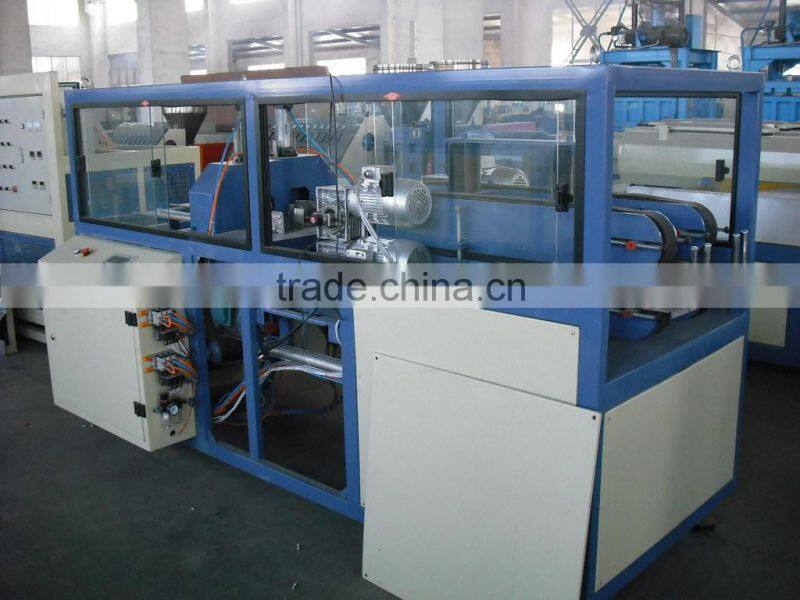

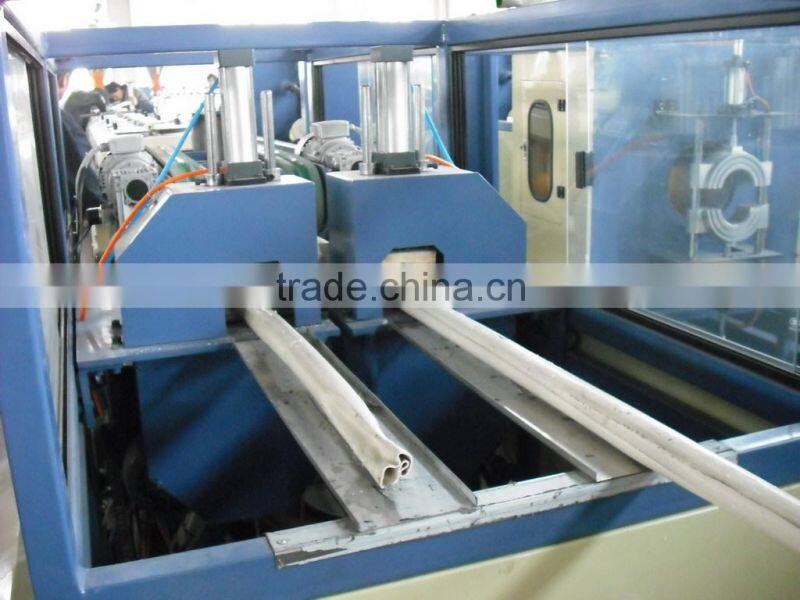

5. haul-off unit
6. cutting unit
7. pipe stacker
| Item | PVC63 | PVC160 | PVC250 | PVC315 | PVC450 | PVC630 |
| Produced Pipe Specification(mm) | φ16-φ50 | φ50-φ110 | φ125-φ250 | φ180-φ315 | φ200-φ450 | φ355-φ630 |
| Vacuum forming length(mm) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Degree of vacuum(Mpa) | -0.03~0.08 | -0.03~0.08 | -0.03~0.08 | -0.03~0.08 | -0.03~0.08 | -0.03~0.08 |
| Max hauling force(N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
| Hauling speed(m/min/max) | 10 | 6 | 4 | 3 | 2 | 1.4 |
| Effective hauling length(mm) | 1000 | 1500 | 1500 | 1500 | 1800 | 1600 |
| Compressed air consumption(m3/h) | 0.4 | 0.6 | 1.0 | 1.2 | 1.5 | 2.0 |
| Refilled water volume(m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Line length(m) | 20 | 22 | 30 | 30 | 36 | 42 |
