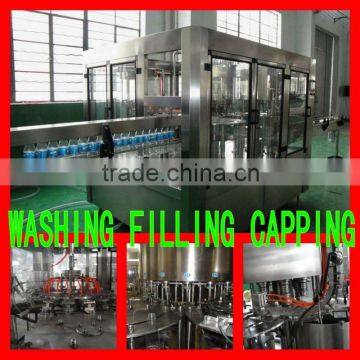

Water Rinsing Filling Capping Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

CGF18-18-6 PET Bottled Filling Machine/Line

Zhangjiagang City B

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name CQ

Model Number CGF18-18-6 PET Bottled Filling Machine/Line

Specifications

Rinsing Filling Capping Machine FOR WATER
PET bottle/Glass bottle
Volume:200-2000ml,
10years experience
CE&ISO

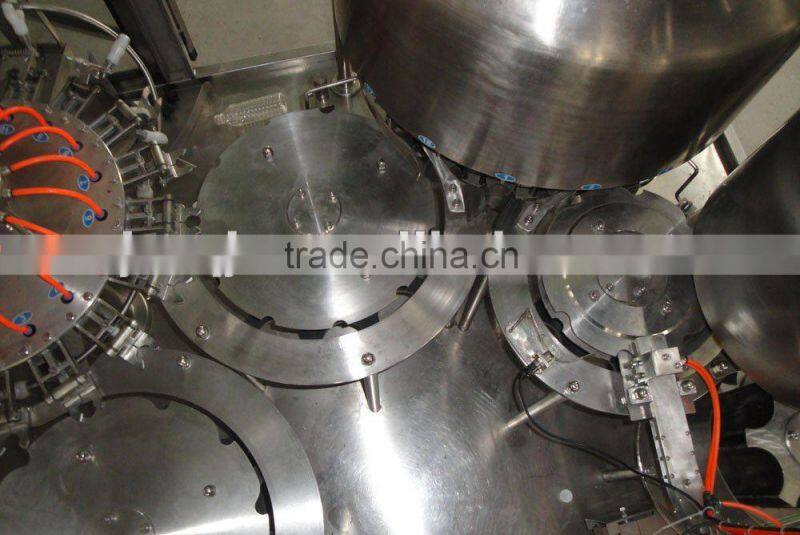

Water Rinsing Filling Capping Machine

Characteristic:

1.This beverage machine carres out bottle washing filling and capping into one machine.

2.The whole machine design is reasonable, appearance is beautiful, maintenance is convenient.

3.It adopts hanging type conveying bottle structure to make bottle size changing more convenient, faster and easier.

4.The main machine adopts advanced PLC control technology. The key electric components adopt international famous products.

Technical parameter:

Model	CGF16126	CGF18186	CGF24248	CGF32328	CGF404012
Heads of washing, filling, sealing	16-12-6	18-18-6	24-24-8	32-32-8	40-40-12
Production capacity	3000-4000BPH	5000-7000	8000-12000	12000-15000	16000-20000
Spraying pressure	0.2-0.25Mpa	0.2-0.25Mpa	0.2-0.25Mpa ³	0.2-0.25Mpa	0.2-0.25Mpa
Motor power	2.2kw	2.5kw	3kw	5.5kw	7.5kw
Stainless steel	SS304	SS304	SS304	SS304	SS304
PLC	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Circuit contactor	Siemens	Siemens	Siemens	Siemens	Siemens
Overall dimension mm	240016502500	250018002500	310023002800	380028002900	460028002900
Weight	2500kg	3500kg	4500kg	6500kg	8500kg
