PET Bottle Shrink Wrapping Machine/Shrink Package Machine/bottle Shrink Wrap Machine

PET Bottle Shrink Wrapping Machine/Shrink Package Machine/bottle Shrink Wrap Machine thumbnail-1
PET Bottle Shrink Wrapping Machine/Shrink Package Machine/bottle Shrink Wrap Machine thumbnail-2
PET Bottle Shrink Wrapping Machine/Shrink Package Machine/bottle Shrink Wrap Machine thumbnail-3
PET Bottle Shrink Wrapping Machine/Shrink Package Machine/bottle Shrink Wrap Machine thumbnail-4
PET Bottle Shrink Wrapping Machine/Shrink Package Machine/bottle Shrink Wrap Machine photo-1
PET Bottle Shrink Wrapping Machine/Shrink Package Machine/bottle Shrink Wrap Machine photo-2
PET Bottle Shrink Wrapping Machine/Shrink Package Machine/bottle Shrink Wrap Machine photo-3
PET Bottle Shrink Wrapping Machine/Shrink Package Machine/bottle Shrink Wrap Machine photo-4
US$ 9,500 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang City B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Plastic, Wood
Automatic Grade Automatic
Driven Type Electric
Power 22KW
Place of Origin Jiangsu, China
Brand Name BE
Model Number BE-10
Dimension(L*W*H) 5000*900*1800mm
Weight 5000kg
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

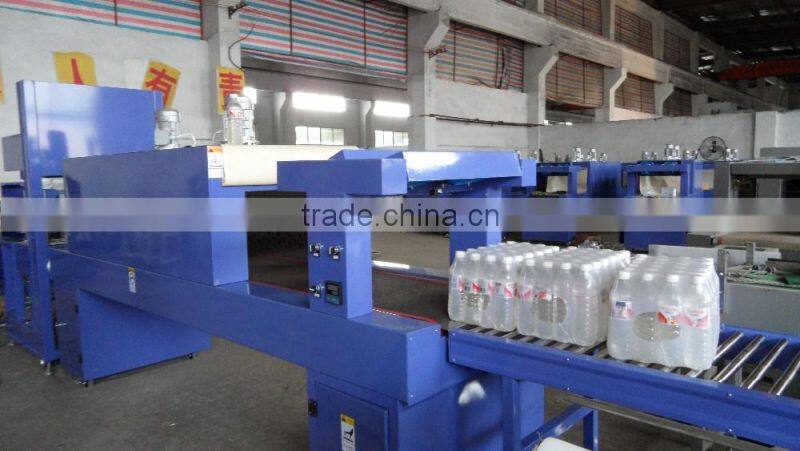

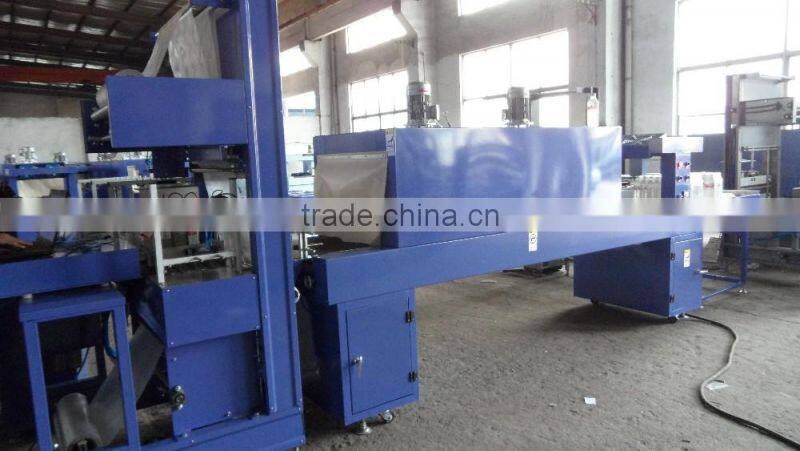

Automatic PET bottle packaging machine

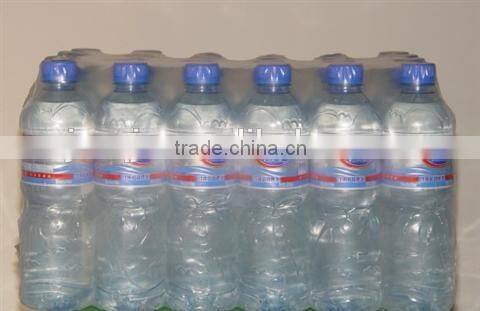

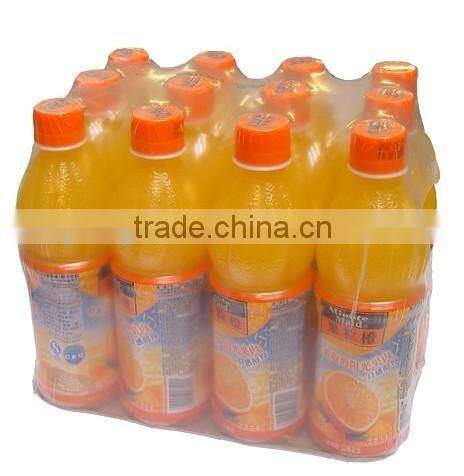

Normal bottles per wrappage (round or square)

4 lines 4*6 4*5 4*4  suitable bottle diameter: 40-67mm

3 lines 3*4 3*3 3*5  suitable bottle diameter: 73-98mm

2 lines 2*3 2*4     suitable bottle diameter: 98-140mm

1 line  1*2        suitable bottle diameter: 140-300mm



TYPE 1-Package speed:8-12Package/min

Technical Parameters:

Maximum size of package

L420×W278×H 390mm

Minimum size of package

L210× W140×H 100mm

Wrappage

PE

Wrappage thickness

0.03-0.15mm (Special requirement is available)

Heating temperature

0-260 (Adjustable )

Processing capacity

720 packages

Main heating power

18kw

Consumption

15kw/ hour

Voltage

380/220V

Equipment dimension

5950*2500*1800(L*W*H)

Working air pressure

0.6-0.8Mpa,Air consume 0. 3 Stere / Min.

G. W.

1100KG

Widely used in the beverage, food, medical and chemical industrial packaging

 PET bottle Shrink Wrapping Machine/Shrink package machine/bottle shrink wrap machinePET bottle Shrink Wrapping Machine/Shrink package machine/bottle shrink wrap machinePET bottle Shrink Wrapping Machine/Shrink package machine/bottle shrink wrap machine

PET bottle Shrink Wrapping Machine/Shrink package machine/bottle shrink wrap machinePET bottle Shrink Wrapping Machine/Shrink package machine/bottle shrink wrap machinePET bottle Shrink Wrapping Machine/Shrink package machine/bottle shrink wrap machinePET bottle Shrink Wrapping Machine/Shrink package machine/bottle shrink wrap machine





TYPE 2-Package speed:0-25Package/min

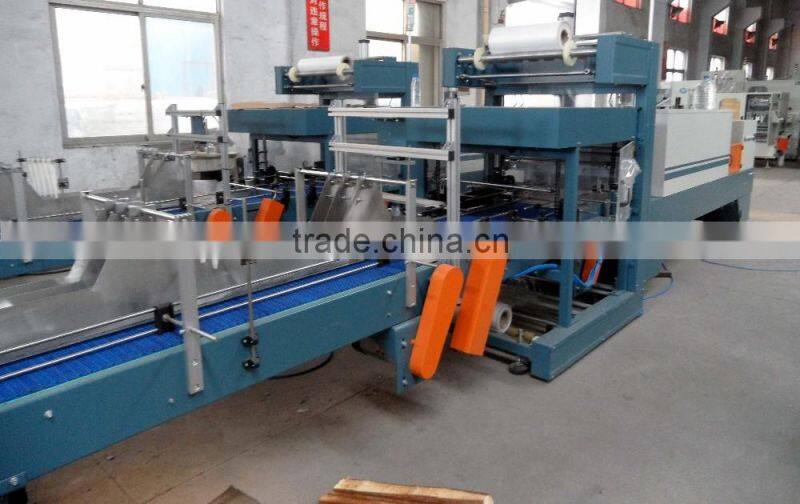

LYBS-20Thermal Shrinkage Film Packaging Machine

Ⅰ. Use and features of the machine

1.Use of machine

BS-20 full automatic shrink packaging machine can not only be solely used, but used simultaneously with other equipment to form packaging production line. It can automatically array, aggregate and align PET beverage bottle or other similar articles, then package it with shrinking film, finally produce finished products after shrinking by heating, cooling and forming. The packaged product is firmly bound with excellent appearance, which can be opened conveniently. Therefore, it is widely used in industries such as foodstuff, medicine, chemical and other light industrial products.

2. Features of machine

1) The temperature can be controlled automatically and changed as required.

2) Isothermal sealing cutter

3) Original guide bar cylinder with steady operation

4) Programmable logic controller (PLC) control

5) Non bottom support packaging, suitable for package with different bottle diameters and different combinations

6) Simple operation and easy repair.

Ⅱ. Main technical parameters

Model

BS 20

Packaging speed

20-25 Pcs/minute

Sealing and Cut Time/Temperature

 0.5-1s / 180℃-260℃

Operating Power

TN-S 380V 35KW

Air Pressure

0.6-0.8Mpa

Air Consumption

0.6m3/minute

Transfer Belt Dimension

550mm

Dimension For The Whole Unit

12000×1100×2100mm  (L×W×H)

Thermal Shrinkage Passage Dimension

2400×650×450mm  (L×W×H)

Max.Package Dimension

600×400×350mm  (L×W×H)



PET bottle Shrink Wrapping Machine/Shrink package machine/bottle shrink wrap machinePET bottle Shrink Wrapping Machine/Shrink package machine/bottle shrink wrap machine
