Specifications
orange juice filling plantautomatic washine filling capper/capacity1000-20000BPH
materila ss304 food grade
CE ISO9001
orange juice filling plant/machine
- Bottle diameter: Φ50-Φ100mm
- Bottle volume: 250ml-2000ml
- Bottle highness: 160-300mm
- Bottleneck: diameter of bottle neck is 28mm or wait for customer’s supply
- Bottle cap: 28 diameter flat screw cap or wait for customer’s supply
- But this equipment can be customized according to exceptive bottles and caps supplied by guest.
Specification
Model | RCGF14-12-5 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-8 | RCGF40-40-10 | RCGF60-50-15 |
Capacity BPH/500ml | 3000 | 8000 | 10000 | 12000 | 18000 | 24000 |
Filling Pressure (MPa) |
0.4 | |||||
Applicable Bottle Type | Bottle Diameter: 50-100 mm Bottle Height : 150-320 mm Volume: 330-1500 ml | |||||
Applicable Cap Shape |
Plastic Screw Cap | |||||
Gas Source Pressure (MPa) |
0.6 | |||||
Gas Consumption (m3/min) |
0.2 |
0.3 |
0.4 |
0.5 |
0.55 |
0.6 |
Total Power (KW) | 4.6 | 5.03 | 6.4 | 8.07 | 9.56 | 11.18 |
Total Weight (kg) | 2500 | 4200 | 5800 | 7000 | 9000 | 12000 |
Outer Dimension (mm) | 2350* 1700* 2150 | 2830* 2030* 2030 | 3220* 2400* 2600 | 3450* 2510* 2710 | 3800* 2800* 2710 | 4510* 3400* 2900 |

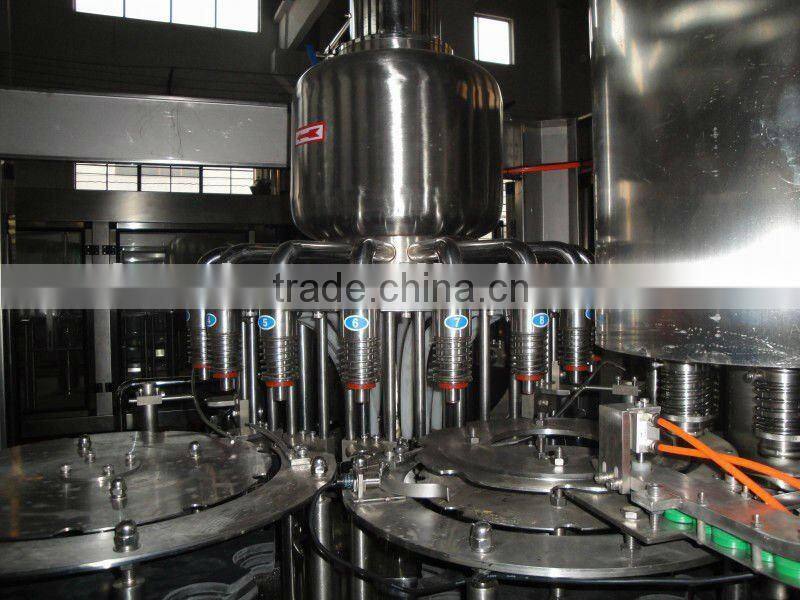

filling parts
washing parts
filling and capping parts
Beverage Machinery-Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change of the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
7. Equipped with a constant temperature system, temperature controlled and circumfluenting automatically
