Specifications
Washing filling and capping machinecapacity:1000-2000BPH
Control:automatic
motor:Simens
PLC:Omron CE&ISO9001

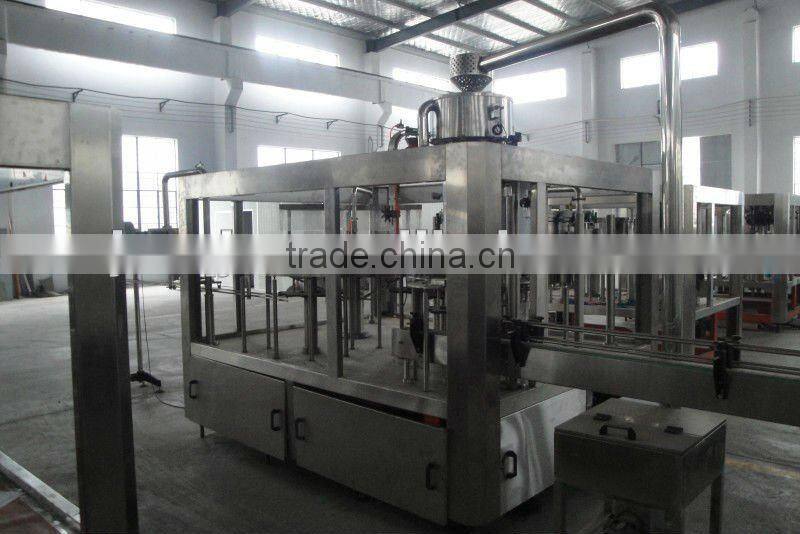

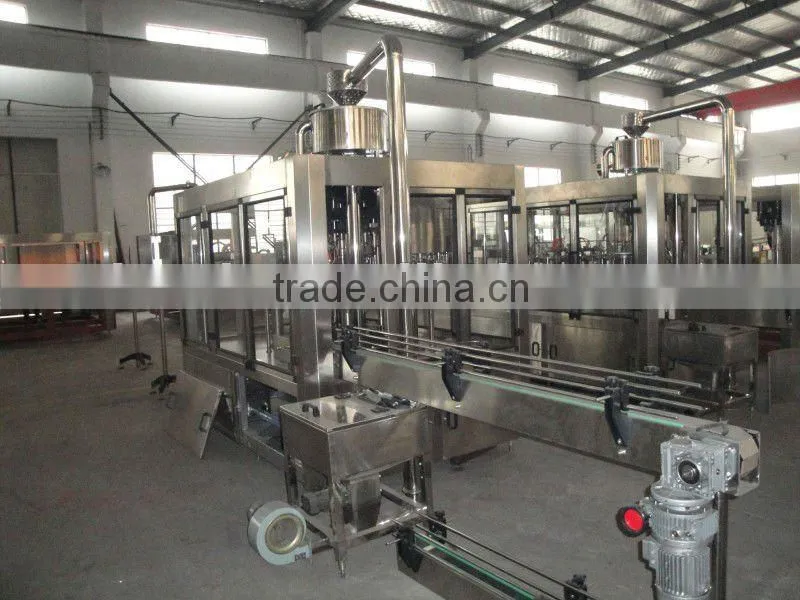

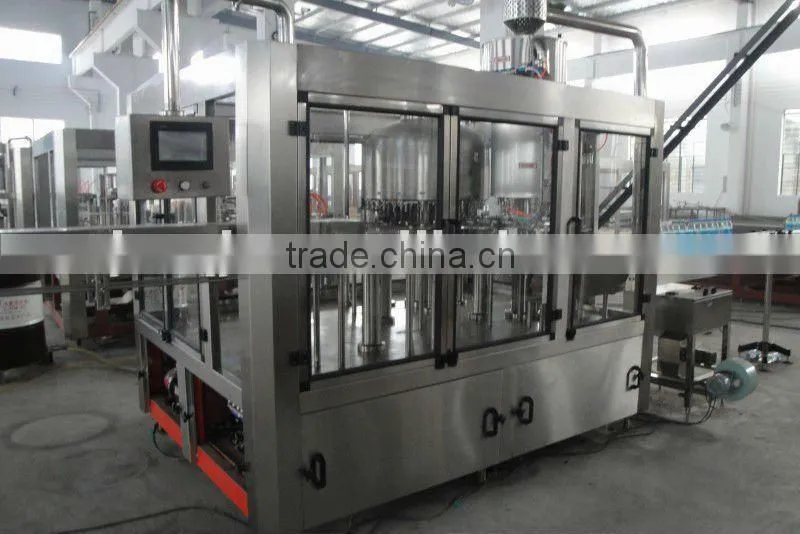

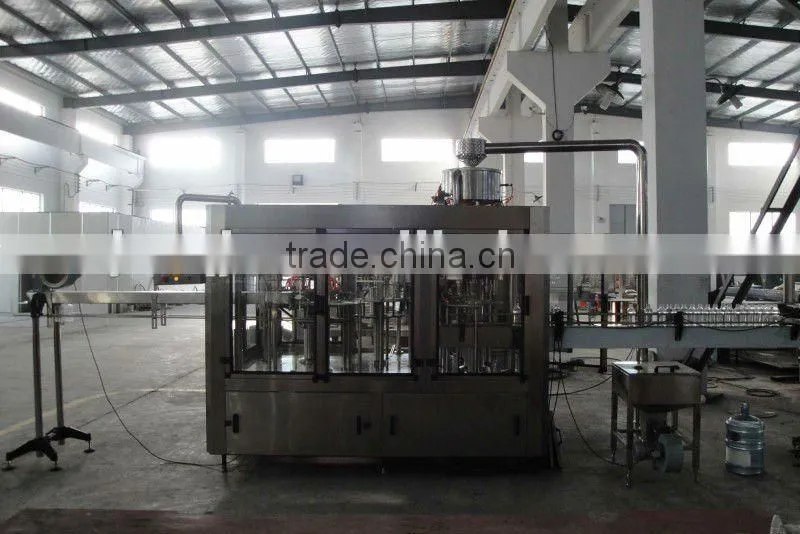

Washing filling and capping machine
1.Capacity1000-30000bph
2. Filling size250-1500ml
3. High Efficiency
4. Advanced Technology
The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.
Main Technical parameters | |||||||
Model |
CGF16126 |
CGF18186 |
CGF24248 |
CGF32328 |
CGF404010 |
CGF484812 |
CGF606015 |
Heads |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-8 |
40-40-10 |
48-48-12 |
60-60-15 |
Production |
2000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
16000-20000 |
20000-24000 |
25000-30000 |
Suitable bottle diameter(mm) |
diameter=50-100mm H=170 330-1500ml |
||||||
Spraying pressure |
2~3 |
||||||
Motor power |
Main |
Main motor 2.2kw |
Main motor 3kw |
Main motor 4kw |
Main motor 7.5kw |
Main motor 9.5kw |
Main motor 12kw |
Power of |
0.75 |
1.1 |
1.5 |
2.2 |
2.2 |
3 |
4 |
overall dimension |
2100x 1400x 2500 |
2460x |
3100x 2100x 2650 |
3500x 2500x 2650 |
4600x 1800x 2650 |
5200x |
6500x 4500x 3400 |
Weight |
2500 | 3500 |
4200 |
5500 |
6800 |
7600 |
9800 |
