Specifications
5 Gallon Water Filling Line1.Production:500BPH
2.Low maintenance,
3.High efficiency,use facility
4.CE.ISO

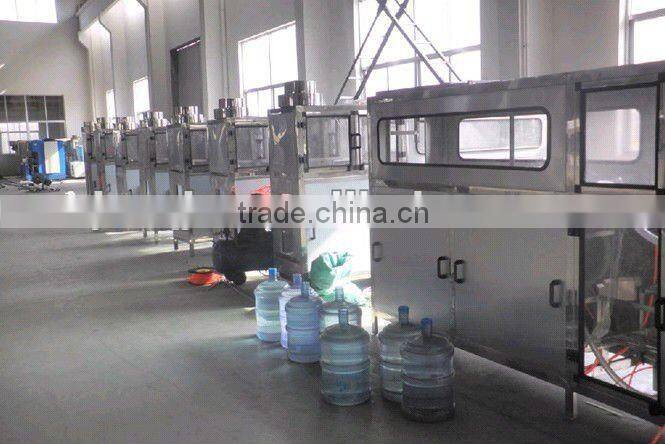

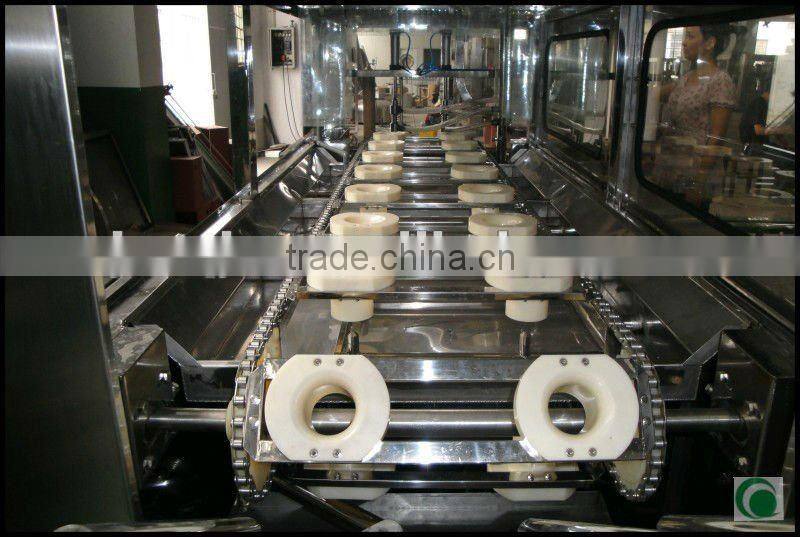

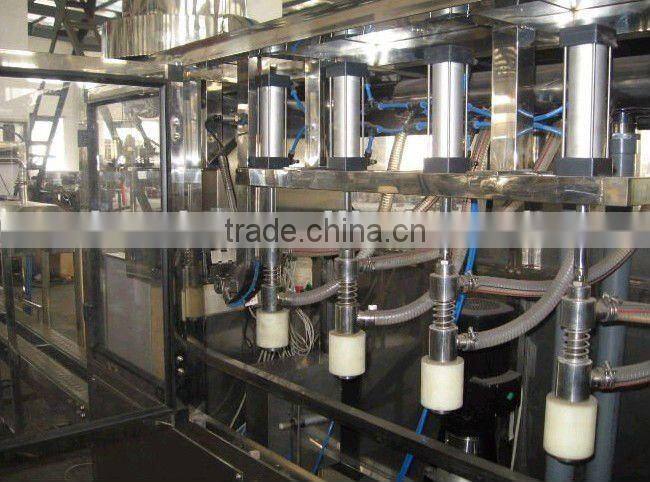

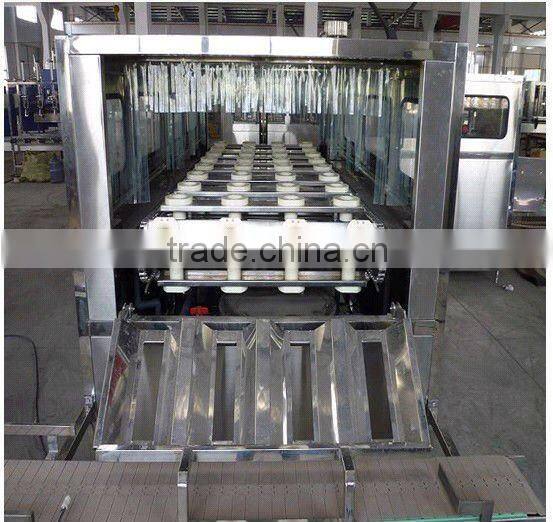

5 Gallon Water Filling Line
The machine combines the automatic washing internal bottle, filling water, placing cap, pressing cap and products outputting in one unit.
1. PLC (Programmable Logical Controller) control, full-automatic working, filling volume adjustable in high precision
2. which with Panasonic brand and the Air TAC brand pneumatic elements making the machine working more functionally
3. The international famous brand electric appliances such as LG, OMRON, pneumatic elements choose the Air TAC brand, which ensure the machine working more safely, and heavy duty running
4. The main body & frame of the machine are made of 304 stainless steel, all fine polish, sanitary & good looking
5. The high pressure inject spraying washing system can wash bottles more perfectly
6. Inchmeal filling system, adjustable filling time, no water spatter when flushing the bottle.
Standard Features - Filler/Capper Parts
1. Emergency stop buttons
2. 304 Stainless steel construction
3. Filler tube, valves and parts are 304 stainless steel, sanitary design
4. Automatic capper, 304 stainless steel capping head
5. Stainless steel filler/capper conveyor
6. Fill cycle controlled for precise level
Rated Power | 220/380V 50Hz three phase |
Power input | 1190W |
Power output | 3600W |
Specification of the bottle | φ270*490*φ56mm φ230*415*φ56mm |
Bottle Volume | 5 gallon & 6 gallon bottle |
Specification of the cap | φ58*40mm Pigtail L18*W7.5mm |
Working capacity | 100 Bottles per hour |
Overall size of the main machine | 2940*500*1480(mm) |
Package size | 3000*580*1700(mm) wooden crate |
