Specifications
20L Bottle Filling Machinecapacity:120-900BPH/ bottle volume:20 L
material:ss304
control:PLC
ring pump:nanfang china

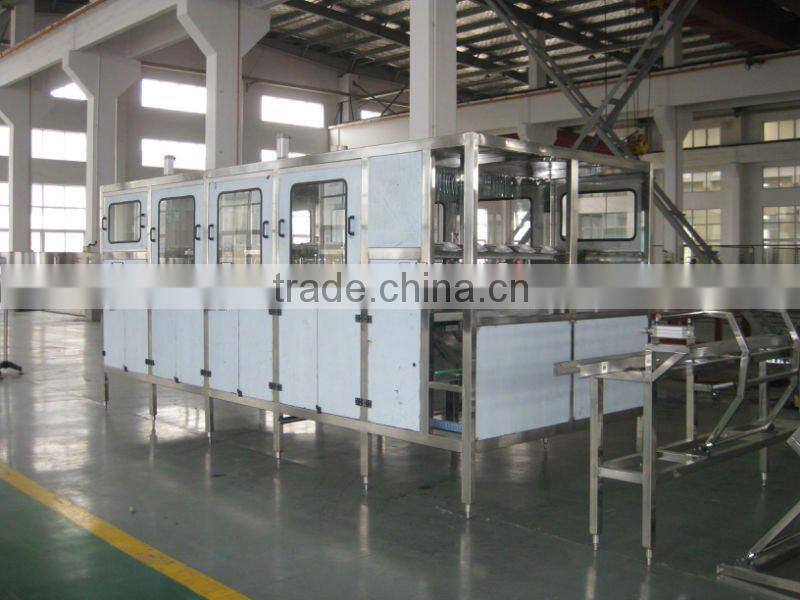

20L Bottle Filling Machine
1.5Gallons Barreled Water Filling Machine
2.3Gallon Bottle Filling Machine
3.19L Water Filling Machine
4.100-1200BPH
20L Bottle water filling Machine ,in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly. This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging. It is a new kind of barreled water auto-producting line, which integrates mechanism, electricity and pneumatics technologies together.
Main Technology Parameter:
Model | QGF-120 | QGF-240 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
Filling Heads | 1 | 2 | 3 | 4 | 6 | 8 |
Volume(L) | 18.9 | |||||
Barrel Size(mm) | φ270×490 | |||||
capacity(b/h) | 120-150 | 240-300 | 400-450 | 500-600 | 700-800 | 1000-1200 |
Gas Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Gas Consumption(m 3 /min) | 0.37 | 0.6 | 0.8 | 1 | 1.2 | 1.5 |
Moto Power(kw) | 1.38 | 1.75 | 3.8 | 7.5 | 9 | 13.5 |
Rated Voltage(V) | 380V/50Hz | |||||
Weight(kg) | 680 | 1200 | 1600 | 2000 | 3500 | 4500 |
pictures
