Specifications
PET bottle mineral water machine1.capacity:2000bph~30000bph
2.filling size:0.25~2000ml
3.Water filling machine for PET
PET bottle mineral water machine
Washing-Filling-Capping (Three-in-One) Unit made by our company is a new product which is researched and developed on the base of importing ,assimilating and absorbing the advanced technology of the same kind of domestic and foreign products, combining several-year-production experience of the company. The unit collects washing, filling and capping together. It is driven by a transmission motor. It has advantages, such as high automation level, compact structure, beautiful appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity and others. It is an ideal no-gas liquid filling production equipment in the country. It is mainly suitable for filling and capping of round or square polyester bottles. According to the demands of different specifications of users, it is only changed a little in design to meet the user’s demands.
PET bottle mineral water machine /water bottling turn-key project
A to Z project:
Bottle blowing machine
Pure/mineral water treatment
Water filling unit(wahser-filler-capper)
Packing part(inject machine, labeling machine and film packing machine)
PET bottle mineral water machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. Most elements of the electrical system employ
Foreign advanced products. Each machine element that contacts with the liquid is made of high quality stainless steel. They obtain the advantages of good abrasive resistance, high stability, low failure rate, etc. The quality of the equipment reaches the international advanced level.
model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
production capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000(0.5L) |
filling precision | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) | ≤±5MMLiquid Level | ≤±5MM(Liquid Level) |
polyester bottle standard(mm) | bottle diameter40-80; | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) |
height | height:130-280 | (Height):150-320 | (Height):150-320 | (Height):150-320 |
suitable cap shape | Plastic Screw Cap | (Plastic Screw Cap) | Plastic Screw Cap) | (Plastic Screw Cap) |
water pressure of washing bottle(MPa) | 0.18 | 0.18 | 0.18 | 0.18 |
water consumption for water bottle (kg/h) | 800 | 1600 | 2500 | 3500 |
Spraying position | 5 | 5 | 6 | 12 |
dripping bottle position | 3 | 3 | 3.5 | 7 |
gas source pressure(Mpa) | normal pressure | normal pressure | normal pressure | normal pressure |
gas consumption(m3/mm) | 0.3 | 0.3 | 0.4 | 0.5 |
total power | 4.23 | 5.03 | 6.57 | 8.63 |
total weight | 2000 | 3500 | 5500 | 8000 |
dimension(L*W*H) | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 | 3500×2200×2250 |
PET bottle mineral water machine electrical elements
1. PLC program: Mitsubishi, Japan
2. Inverter: Mitsubishi, Japan
3. Contactor:Delixi
4. Breaker: Delixi
5. Touch Screen: Weinview, Taiwan
6. Cylinder:Airtac

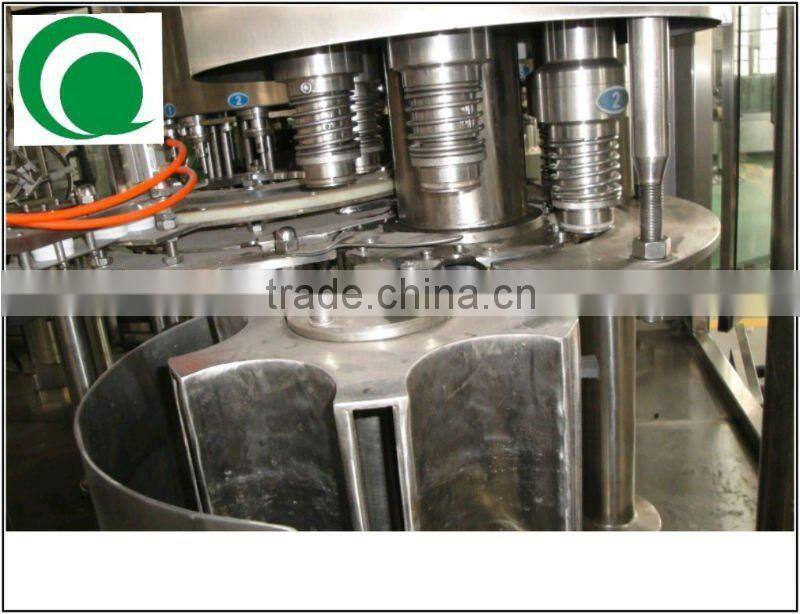

PET bottle mineral water machine Pictures
