Specifications
Heating cable Thermostat-Digital programmable thermostat
-LCD display
-Load: 16A
-CE
Heating Cable Assembly Temperature Thermostat
Introduction
Heating thermostat with LCD screen, which has manual mode.The thermostat is recommended for the control of electric heating deviceor on/off valve actuator in
hydronic underfloor heating.
This intelligent temperature controller applies to electric heating control(heating cable) or hot water heating system’selectrically operated valve.
Date
1 - Character: LCD display, with backlight
2 - TC43PE: with internal and external sensor
3 - Voltage:230V (±10%)
4 - Electrical Current :<16A
5 - Output Format: relay contact
6 - Temperature controlling range: +5~50oC
7 - Temperature controlling precision: ±1oC
8 - The surface material: PC+ACS engineer plastic, Fire-resistant
9 - Environment Temperature :-5oC~+50oC
10 - The length of external sensor: 3m
Features
1 - Integration,standard 86 type wall mounted directly.
2 - Tilt interface LCD,better read.
3 - Power off,completely cut off the power.
4 - Week cycle,six period one day, according to temperature program design.
5 - Sensor selection:Internal single sensor controller,External sensor controller.
6 - Child lock function.
7 - Temperature sensor failure alarm.

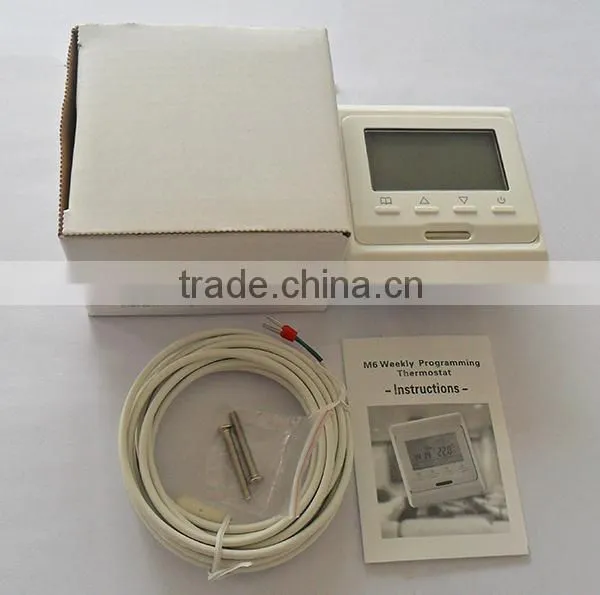

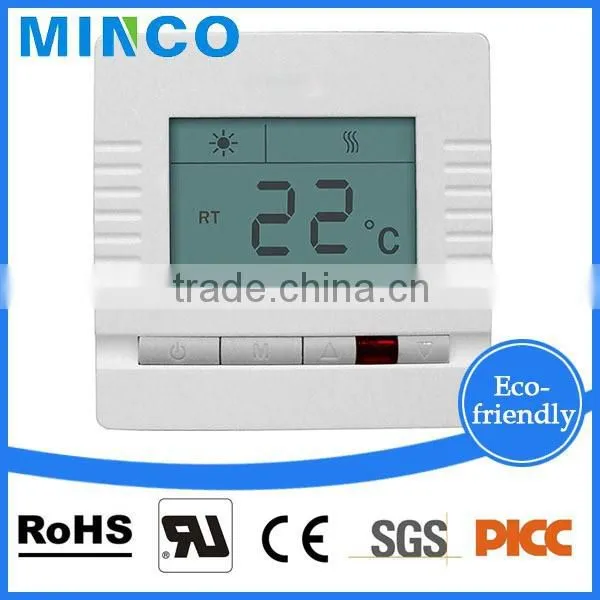

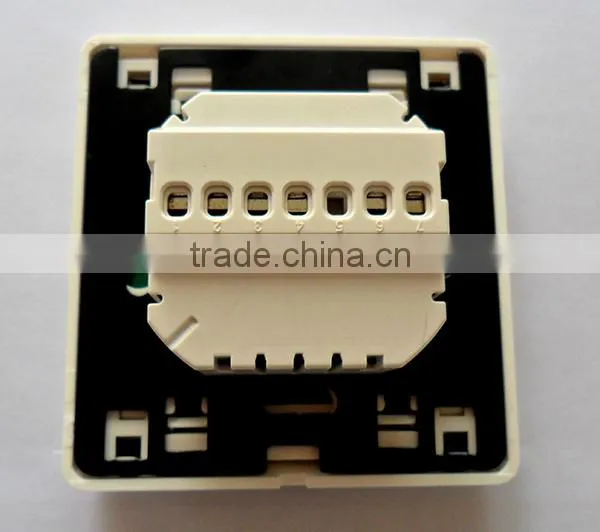

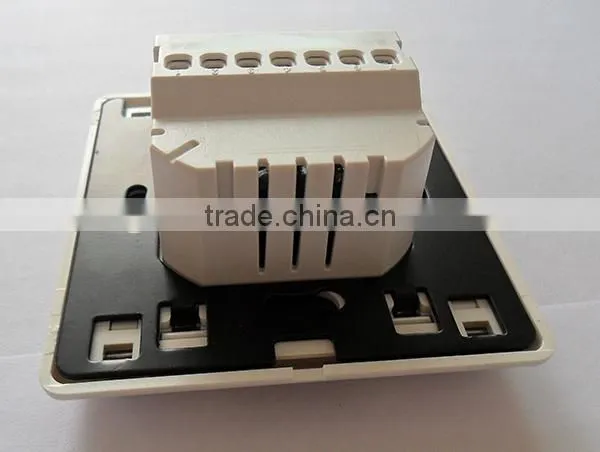

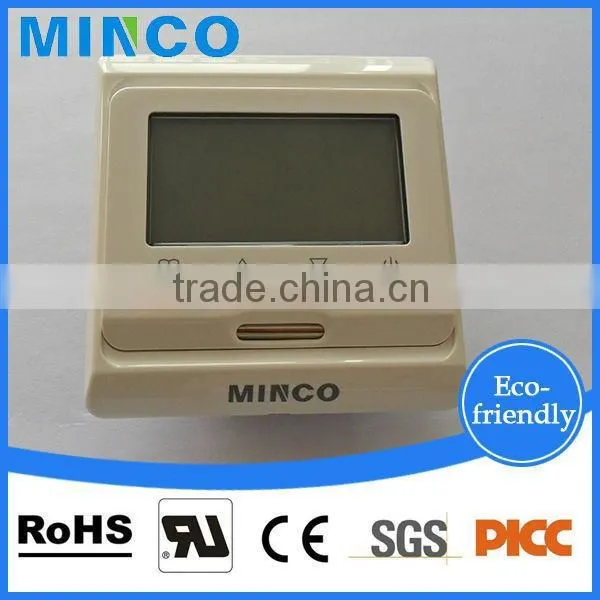

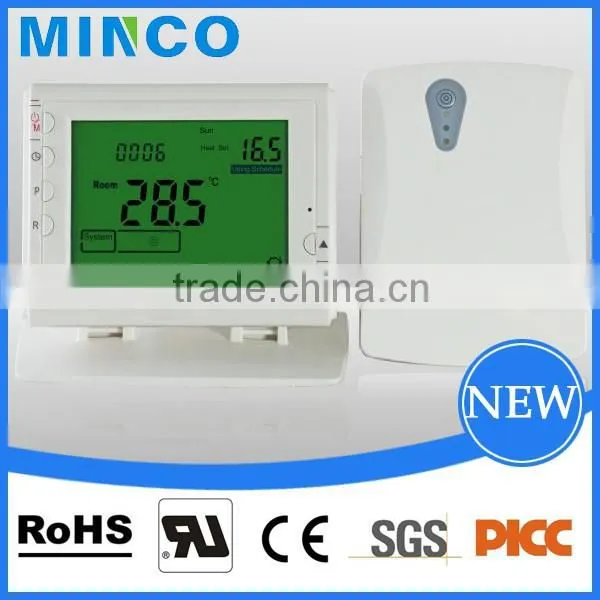

Photos
Purchasing together with heating cable, please click:
https://img13.fr-trading.com
