Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Three-phase DC 12V 24V Water Brushless Pumps With DC Water Pump Controller

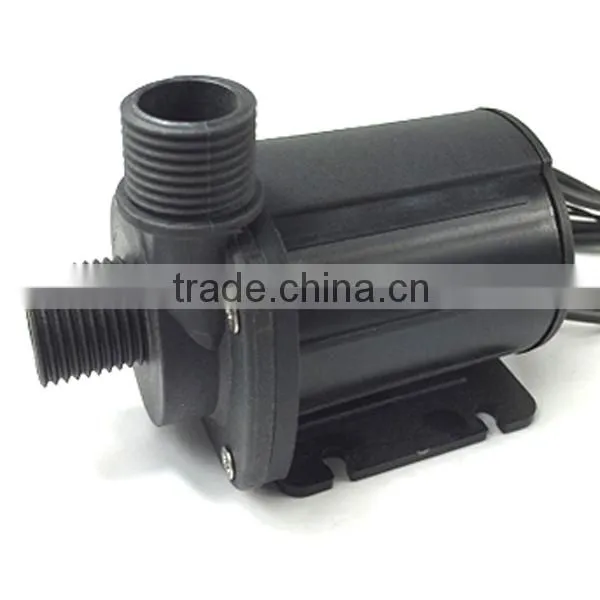

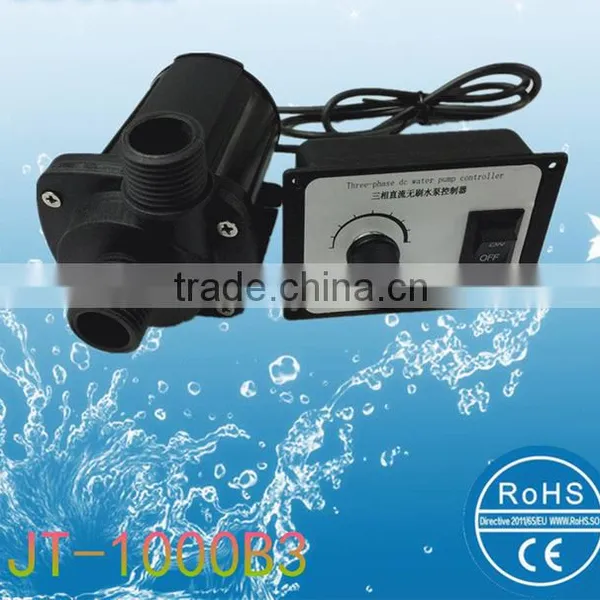

Three-phase DC 12V 24V Water Brushless Pumps With DC Water Pump Controller
US$ 1 - 55
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Javtop
Model Number:
JT-1000B3
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V 24V Brushless DC Water Pump 3000 L/HUS$ 1 - 40MOQ: 1 Piece -
12V 24V BIG POWER DC Mini Pump, Submersible Brushless DC Magnetic Driven, For Circulation, Fountain, Cooling System, Etc.US$ 1 - 35MOQ: 1 Piece
-
Electric 12V 24V Brushless DC Submersible Water Pump 650 L/HUS$ 1 - 25MOQ: 1 Piece
-
Solar DC 12V 24V Water Pump Mini Plastic Gear PumpUS$ 1 - 20MOQ: 1 Piece
-
12V 24V Solar Pumps, Booster Pumps, Brushless DC Pumps, Auto Cooling Pump 1000L/HUS$ 1 - 25MOQ: 1 Piece
Place of Origin
China
Brand Name
Javtop
Model Number
JT-1000B3
Theory
Reciprocating Pump
Structure
Other, Booster Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other
Pressure
Low Pressure
Application
Submersible

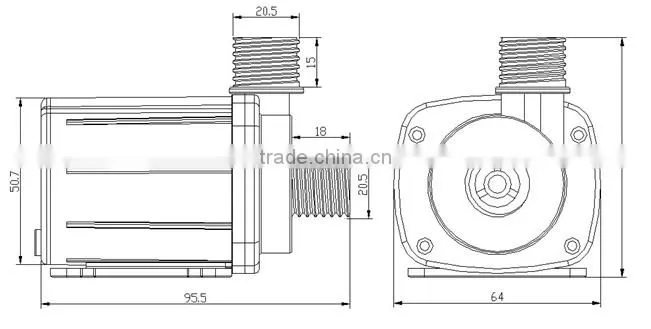

Three-phase DC 12V 24V Water brushless pumps with DC water pump Controller
| Model | Voltage Scope(DC) |
Current(A) | Power(W) | Max Water Head(M) |
Max Flow Rate(L/H) |
Starting Voltage | waterproofing grade |
| JT-1000B3-12 | 12V | 3 | 36 | 6 | 2600 | 6 | IP68 |
| JT-1000B3-24 | 24V | 3.5 | 84 | 8 | 3000 | 9 | IP68 |
1. Ambient temperature: -40~100C
2. Operating Humidity: less than 90%RH
3. Liquid temperature: -40~100C
4. Using liquid: water or Nonflammable liquid with good fluidity
5. Operation place: Medical, fountains and so on
6. Unpitched sound: less than 35dB
7. PUMP shell Material: ABS
Notice:
1. The water pump is DC pump, DC voltage must be for DC power supply (e.g., battery, with DC power supply, transformer), voltage and within the prescribed voltage range, just can use.
2. It is strictly prohibited without water for a long time idling.
3. It is strictly prohibited to used in acidic and alkaline solution.
4. It is strictly prohibited in the liquid impurities and permeability is greater than 0.35 MM particles, such as the water too dirty to clear in time the pump pump chamber of the impurities.
2. It is strictly prohibited without water for a long time idling.
3. It is strictly prohibited to used in acidic and alkaline solution.
4. It is strictly prohibited in the liquid impurities and permeability is greater than 0.35 MM particles, such as the water too dirty to clear in time the pump pump chamber of the impurities.
