self limiting no need controller self regulating drive way electric heater cable
The low-temperature self-regulating heating cable developed by Minco is widely used in fire protection,
petroleum,chemical industry, iron and steel, electric power and so on to keep pipes, tanks warm and prevent frostbite. This cable is suitable for ordinary areas, hazardous areas and corrosive areas and more...
Product type: DWK self-regulating heating cable series

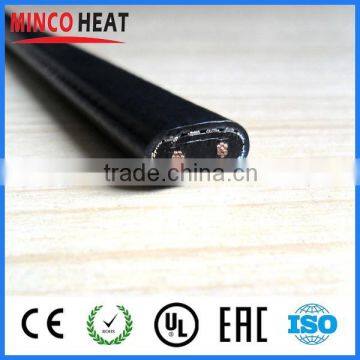

Product pictures:
Cable structure:
1. Copper-core wire: 7×0.50, 19×0.32
2. Conductive plastic layer: common PTC, fire-retardant PTC, fluorin-contained PTC
3. Insulation layer: modified polyolefin, fire-retardant polyolefin, fluorin-contained polyolefin,
fluorin material
4. Shielding layer: tinned copper braid, covering density: 80%
5. Restrictive coating: modified polyolefin, fire-retardant polyolefin, fluorin-contained polyolefin,
fluorin material.
Specifications:
1. Standard color: black, (custom)
2. Temperature range: Max. Working temperature 65±5°C; Max. Exposure temperature 85°C; Max. Enduring temperature: modified polyolefin105°C; fire-retardant polyolefin:105°C;fluorin-contained polyolefin: 180°C; fluorin material: 205°C
3. Minimum installation temperature:-40°C
4. Start-up current ( 10°C ): ≤0.7A/m
Applications:
Self regulating heating cable is designed for residential,commercial and industrial filed.mainly used for Pipe freeze
protection,or temperature maintenance of metal or plastic pipework and vessels.roof and gutter deicing applications.
snow melting outdoor according to the filed that you need.also include some special requirements,such as flue gas
desulfurization for electricity generating station,oil well,ocean ship and fire it is ideal for using in freeze
protection,temperature maintenance,keep the fluid flow and in right degree.in a word,meet process requirements.
Other similar application products:
heating cable for greenhouse system and poultry farm system
heating cable for roof, gutter and road snow melting device
pipe defrosting heat tape
Voltage grade: 12;24; 36V;110; 220;380 Volt
Nominal power output (w/m at 10°C):15w/m, 20W/m, 25W/m, 30W/m 35w/m
Quality guarantee: 10 years
Offer free sample
Advantage:
1. Equal temperature safe and reliable.
2. Save electric energy.
3. Rapidly Temperature increase
4. Low cost of installation and operation
5. Easy to install and maintain.
6. Convenient for automatic management.
7. No pollute environment.
We will prepare shipping ASAP once we receive your money, and give you the tracking number after we send out your goods. Usually within 5-35 working days you can receive your item.
Normally, the cable will be packed by carton (37.5*37.5*37.5cm). But, if you have any other request of package, we will try our best to satisfy you.
Payments: T/T, Western Union, Bank of China, ESCROW
Q:Self Regulating Heating? Best Choice Or Not?
-------Self regulating heating cable controls the temperature is not too high nor too low compared to other heating devices, because the temperature is automatically adjusted. With explosion-proof, all-weather performance, high reliability and long service life. It can solve other difficult issues, such as: long-distance pipeline heat tracing, narrow space heating and so on. May be self regulating heating cable one-time investment is higher,but it is the most economical heating measures in long running.
More Similar heating cable, click: http://mkheatingcable.en.china.cn/
Contact us: Tony Tong
SKYPE: tony724sky
