Specifications
heat resistant floor matenergy saving,eco-friendly,no noise
10 years warranty
OEM
CE,ROHS,GOST,FIRE RESISTANT
Warm Touch Floor Heat TEFLON wire cable Heat Resistant Floor Mat
Brief Introduction
Minco Heating Mats can be used in: underfloor heating system(bathroom, kitchen, living room,ceilling...) and outdoor snow melting(enterway, driveway , walkway...), which bring the warmth underfloor/underground and creat most comfortable atmosphere inside and convenience for going out!
Heating mats details
|
Single conductor heating mats |
Characteristics |
General technical data |
| Self-adhesive net | Cable structure-one-way | |
|
Two double-side adhesive tapes without liner |
Shape of cable-annular | |
|
The reinforced net to guarantee better connection between two floors |
Diameter-2.5mm |
|
| Good flexing, with all lengths | Cold lines-two lines of four meters |
|
| As thin as only 4-5.5mm | Intensity of deformation-at least 600 Newton |
|
|
Both 100 watts and 150 watts can create maximum comfort |
Voltage-220V (customized) |
|
Two cold lines |
Insulation-TEFLON |
|
10 years of warranty |
Cover-TEFLON |
|
Shield-copper wire |
Heating mats (single conductor 150W/M²)
Type |
Voltage |
Power |
Linear power |
Resistance |
Cable length |
Square meter |
HSVF-150 |
220 |
150 |
12 |
322.67 |
12.5 |
0.5*2 |
HSVF-150 |
220 |
225 |
12 |
215.11 |
18.8 |
0.5*3 |
HSVF-150 |
220 |
300 |
12 |
161.33 |
25.0 |
0.5*4 |
HSVF-150 |
220 |
375 |
12 |
129.07 |
31.3 |
0.5*5 |
HSVF-150 |
220 |
450 |
12 |
107.56 |
37.5 |
0.5*6 |
HSVF-150 |
220 |
525 |
12 |
92.19 |
43.8 |
0.5*7 |
HSVF-150 |
220 |
600 |
12 |
80.67 |
50.0 |
0.5*8 |
HSVF-150 |
220 |
750 |
12 |
64.53 |
62.5 |
0.5*10 |
HSVF-150 |
220 |
900 |
12 |
53.78 |
75.0 |
0.5*12 |
HSVF-150 |
220 |
1050 |
12 |
46.1 |
87.5 |
0.5*14 |
HSVF-150 |
220 |
1200 |
12 |
40.33 |
100.0 |
0.5*16 |
HSVF-150 |
220 |
1350 |
12 |
35.85 |
112.5 |
0.5*18 |
HSVF-150 |
220 |
1500 |
12 |
32.27 |
125 |
0.5*20 |
HSVF-150 |
220 |
1800 |
12 |
26.89 |
150 |
0.5*24 |
Advantages
1.CE ROHS GOST and FIRE RESISTANT certificated
2. 10 years warranty
3. Almost 50 years lifespan.
4. A one-time investment, a lifetime of use.
5. Eco-friendly, energy saving and no noice.
6. Controlled by MINCO programmable thermostat

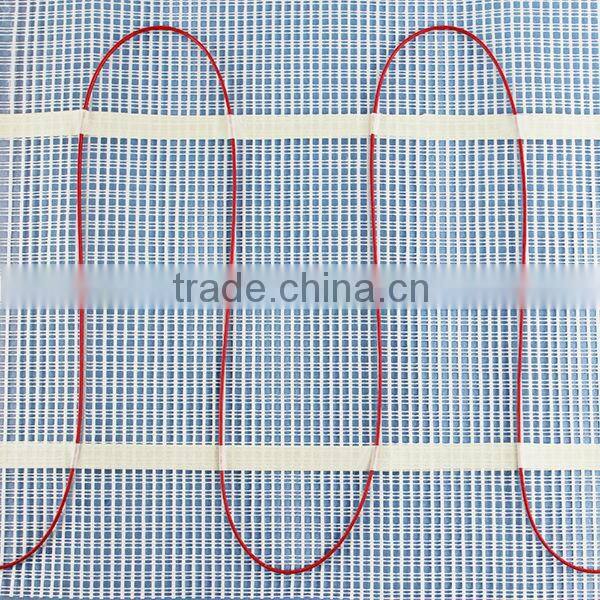

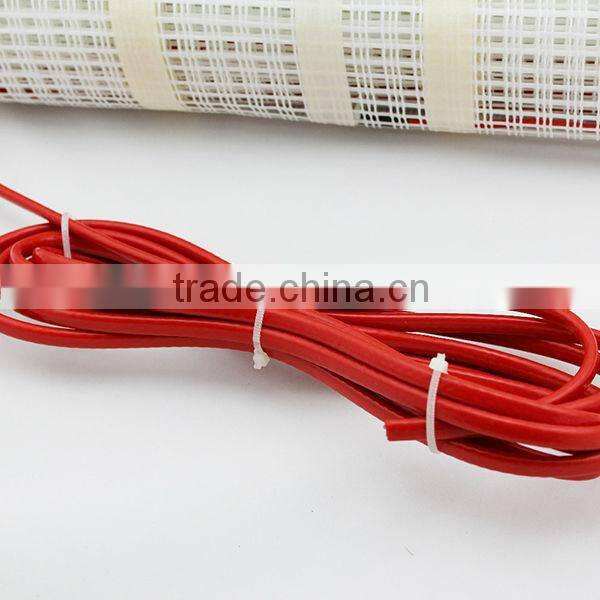

Product pictures

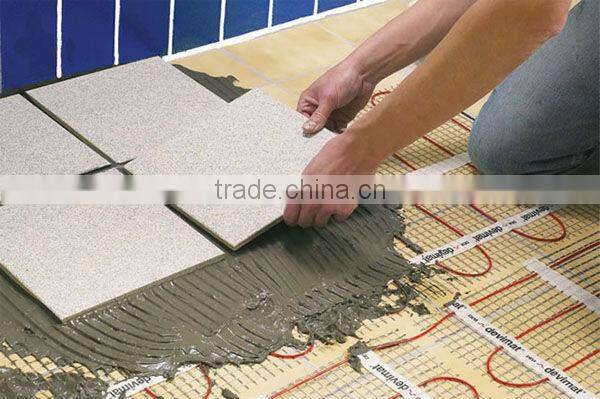

Installaion
Procedure
1. Checking the laying area to confirm the construction conditions.
2. Chean up the laying area
3. Laying the insulating layer
5. Testing the norminal resistance and insulation resistance of heating mat
6. Open the mat,keep the mat upwards, when the mat reached the area edge, you can cut off the fiberglass wire mesh, but can't cut off the cables.
7. Testing the nominal resistance and insulation resistance of heating mat
8. Pouring the concrete layer(by decoration construction group)
9. Testing the norminal resistance and insulation resistance of heating mat
10. Install the thermostat
11. Laying ground decroation material(by decoration construction group)

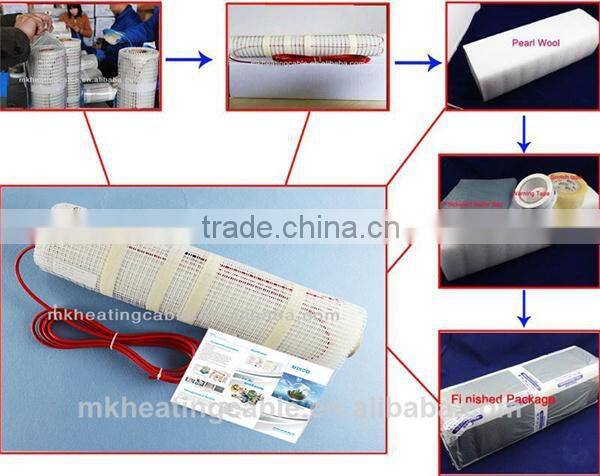

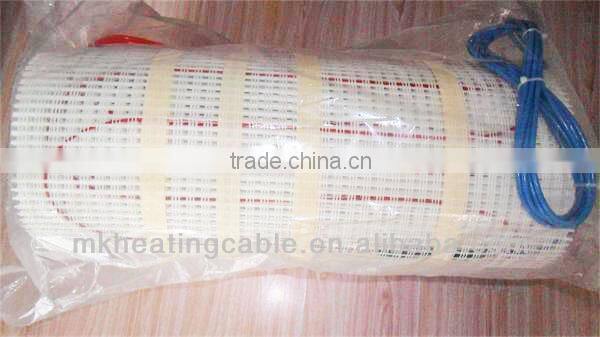

Package
Applications
Minco heating mats are widely used in:
Floor heating: kitchen, bedroom, bathroom, etc.
Snow and icemelting: outdoor road, rampway, garage, etc.
Heating for baby animal husbandry: heating in the care room and parturition room, etc.
Other applications: soil heating, etc.
Certification
