Specifications
Heating cable accurate temperature controller-explosion proof
-corrosion proof
-accurate control
-quality guarantee
Self-regulating heating cable accurate temperature controller
Explosion proof junction box--
Anti-explosion power junction box used to connect power line with heating cable in anti-explosion area.the junction box can one-way output or two-way output.
Technical parameter--
1 - Rated voltage:220V/380V
2 - Rated current:40A
3 - Protection level:IP54
4 - Thread of heating cable:G3/4
5 - Anti-explosion mark;Exem11T4
Attention--
1 - When find the junction box broken,shell deformation,crack,pls don’t use it and replace new one.
2 - When install the heating cable,attention the short circuit between core wire,heating wire and sheild copper wire,ensure enough the electic clearances no less than 8mm,creepage distance no less than 10mm.
3 - Unused entry holes should be blocked by board that thickness no less than 2mm.
4 - The shell of power junction box have cable,if the current lower than 15A,choose 3×2.5mm2.rubber cable,If the current higher than 15A,choose 3×4mm2 rubber cable.
5 - The power junction box have earthing terminal so that the heating cable earth connection.
6 - Seal the entrance of power junction box after installation.
Photos--

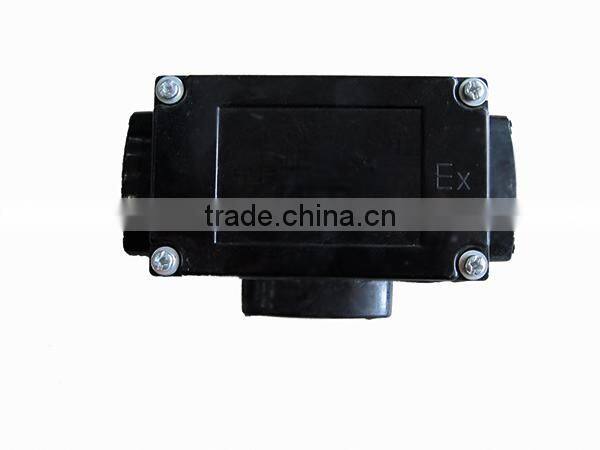

Explosion-proof T-shaped Junction Box

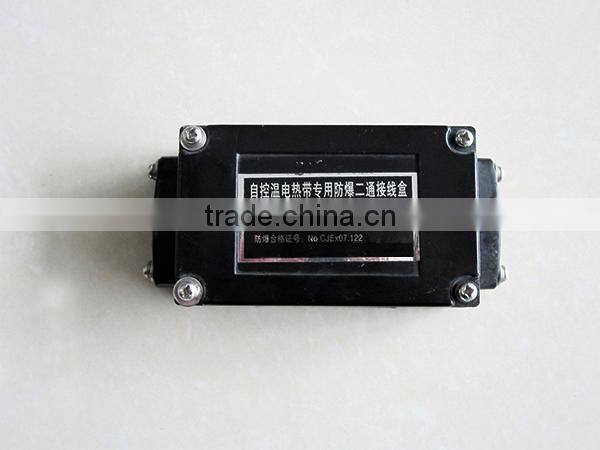

Explosion-proofTwo-way Junction Box

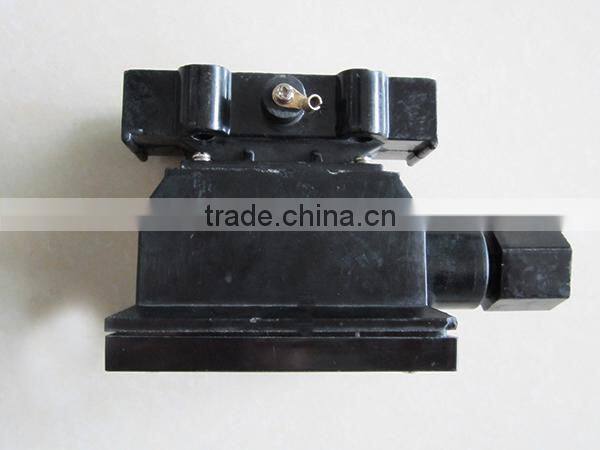

Explosion-proof Temperature Controller

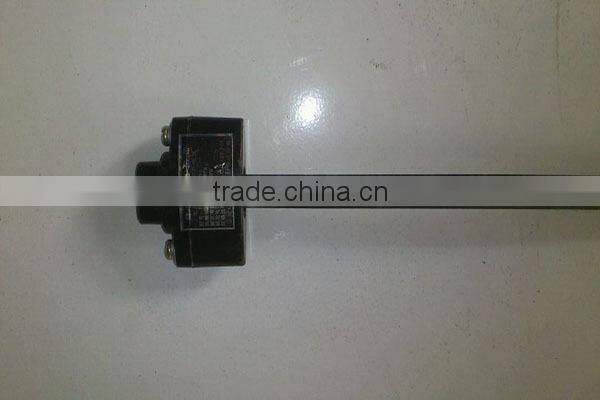

Explosion-proof End Seal Box
Using together with self regulating heating cable, please click:
http://mkheatingcable.en.china.cn
