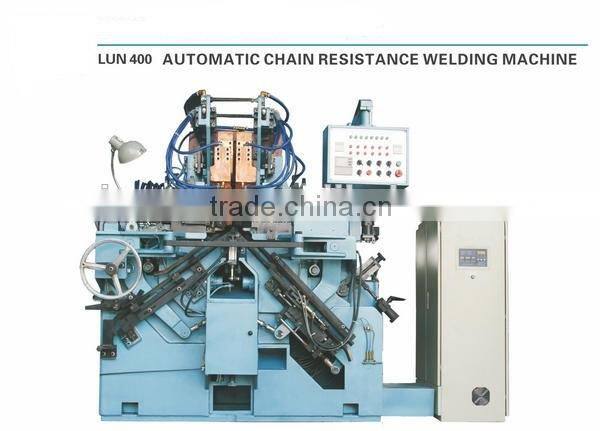

LUN400 Automatic Transmission Chains Resistance Welding Machine
This welding machines are following the most advanced England technology and our independent research development, which is the high efficient full automatic chain Flash welding machine,use for the big size alloy steel wire chain welding production. The machine includes the chain transmission unit/chain link clamping unit/preheating unit/flash welding and up slider unit/servo welding control unit/hydraulic deburring unit/PLC control system.
The construction of this machine is very compact, with more safety and reliable working, high speed welding in full automatic, is the best choice for the big size steel chain welding production.
Speification Details
Model |
Welding Transformer Power |
Motor Power |
Wire Diameter |
Output Chain Links |
Weight |
Size |
LUN75 |
75KVA |
2.2KW |
Φ3.5-6 |
40-45 ring/minute |
2T |
1800*1000*1700mm |
LUN125 |
125KVA |
3KW |
Φ6-10 |
35-42ring/minute |
3T |
2500*1400*1950mm |

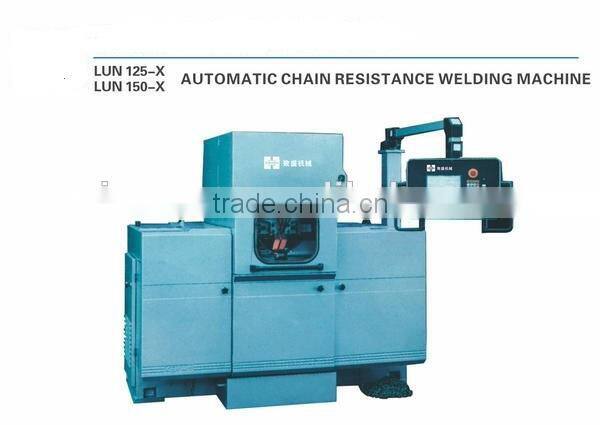

LUN125-X |
125KVA |
3KW |
Φ5-10 |
50-70 ring/minute |
3.8T |
4000*2800*2300mm |
LUN150-X |
150KVA |
3KW |
Φ8-13 |
35-55ring/minute |
4.8T |
4400*3300*2500mm |

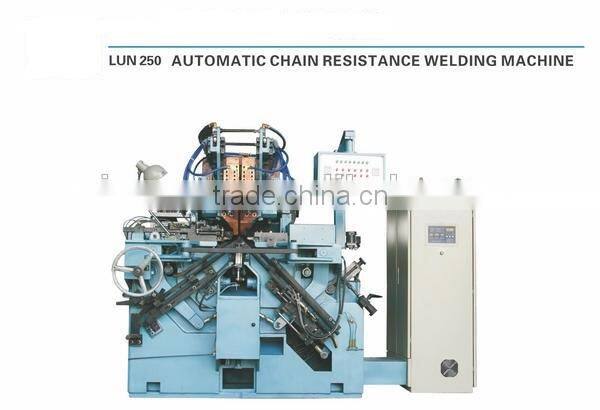

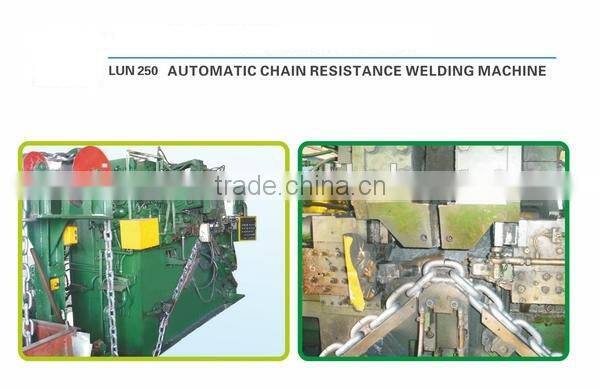

LUN250 |
250KVA |
5.5KW |
Φ11-16 |
25-32 ring/minute |
6.8T |
3100*1800*2600mm |
LUN400 |
400KVA |
7.5KW |
Φ13-19 |
10-18 ring/minute |
11T |
4200*2200*3000mm |

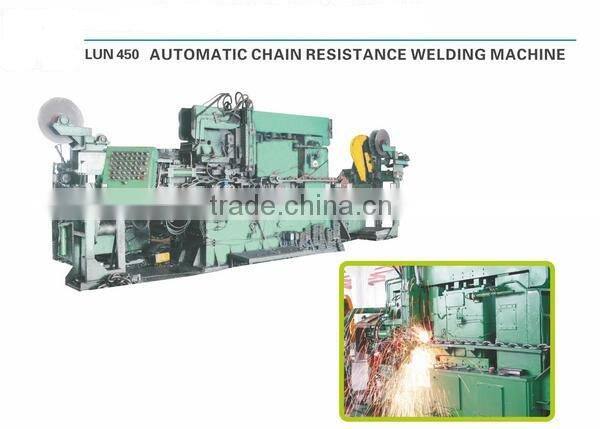

LUN450 |
450KVA |
36KW |
Φ20-36 |
5-10 ring/minute |
14T |
7100*3000*2600mm |
