Beautiful in colors LED display wireless nurse call button for patient emergency service call bell system

one unit of emergency service call bell system in a standard box packing

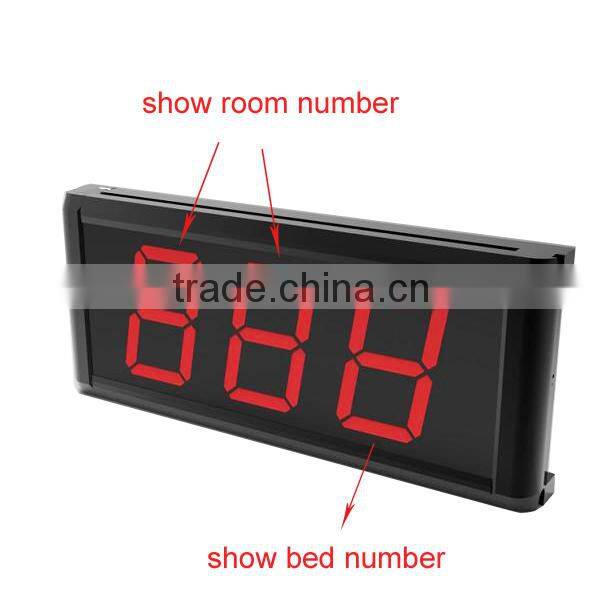

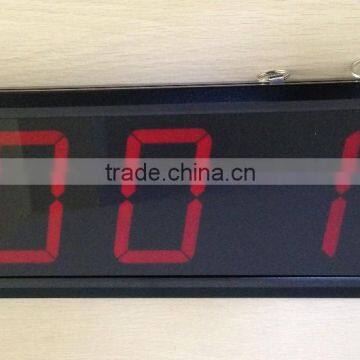

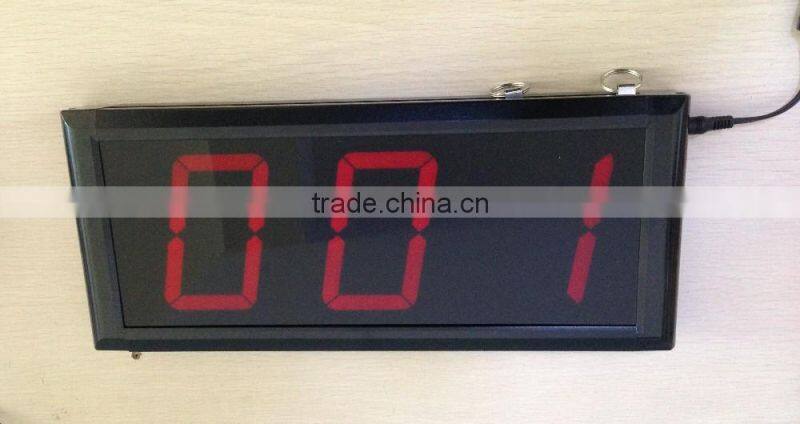

Specification of display receiver K-403:

1 with high strength aluminum alloy shell,durable in use
2 Use digital code technology and the function is steady and reliable
3 wall mounted
4 Show 3-digit number,from 001-999
5 It can work with 999 1-key in max
6 It can save 30 calling info in turn,and apply in basic service places
7 Dimension:365*158*40mm

Technical parameters:

Working voltage:DC12V~18V
Working current:<20mA
Working Frequency:315MHz or 433MHZ

Size: 365*158*40mm

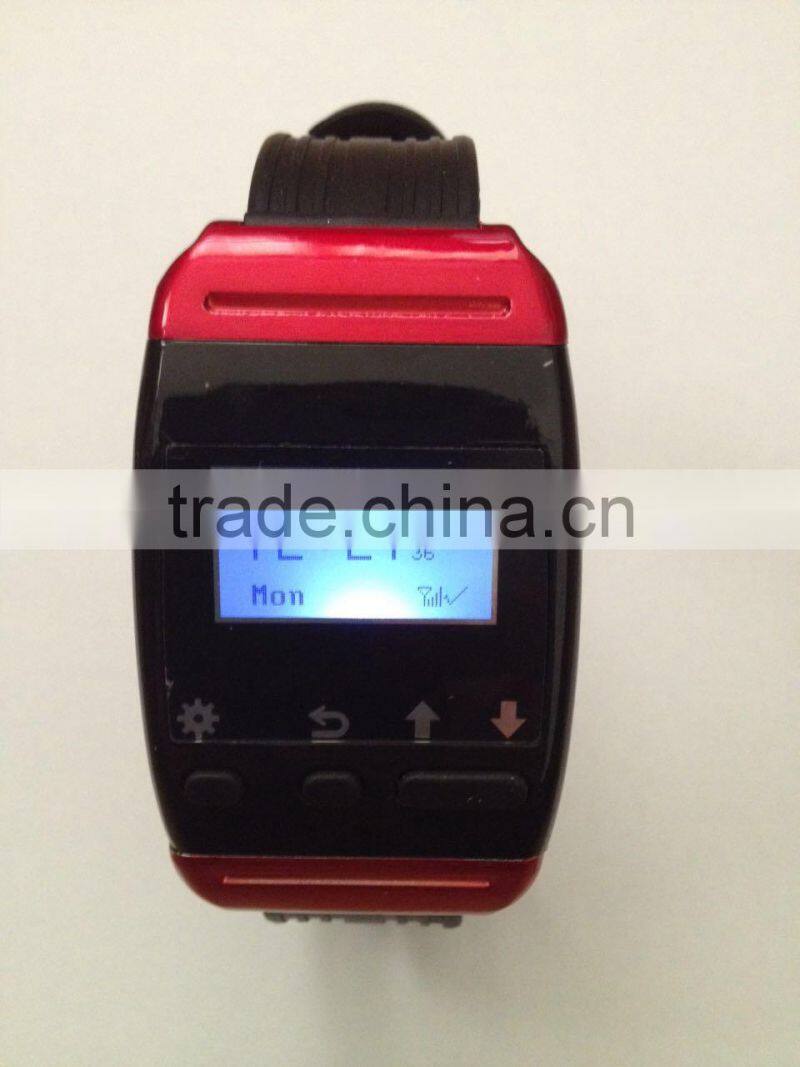

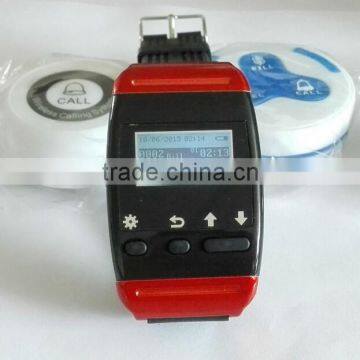

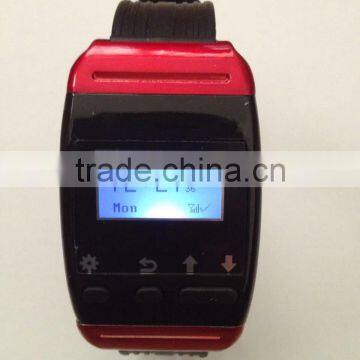

Specification of Watch Pager Y-650:

1. Can work with 500pcs 1-key and multi-key transmitter in max
2. Can show 3 group call number in one time
3. Show 4-digit number from 0001-9999 and first letter can be A-Z
4. Can indicate different service type via words or letter.(call; bill; drink; dessert; help etc and A-Z)
5. Can record when call come in and Can count the call times of each number
6. Can store 50 calls and track the history calls up and down
7. Shows current time when stand-by
8. 3 reminder ways:sound promt and vibration or both
9. Battery is rechargeable
10.Dimension:50*41*16mm

11. Three color: black, green,red

12.Two display mode:live view and queue view
      --“live view” means, when No.1 No.2 No.3 call in turn, screen is show 0003 0002 0001. Newest call number show on the top of screen.
      --“queue view” means, when No.1 No.2 No.3 call in turn, screen is show 0001 0002 0003. Oldest call number show on the top of screen.

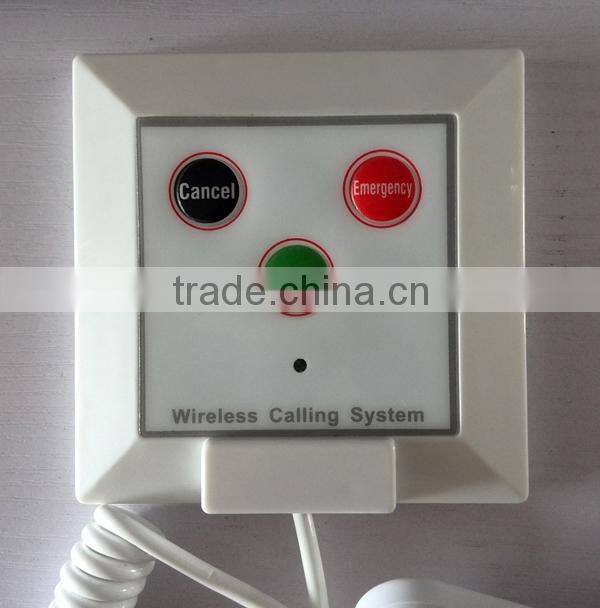

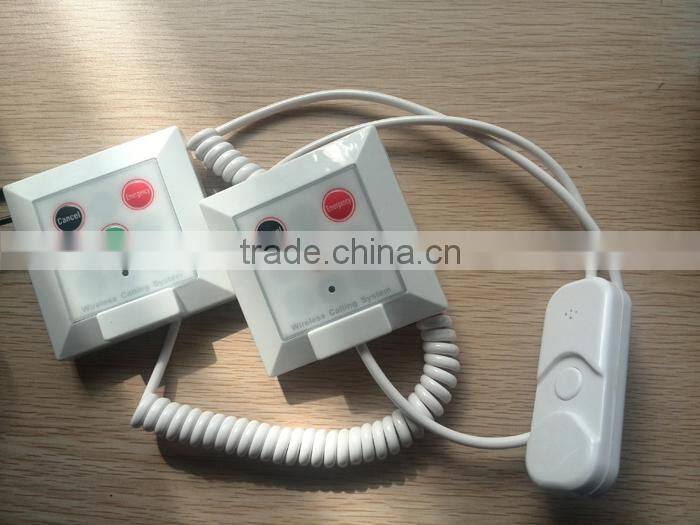

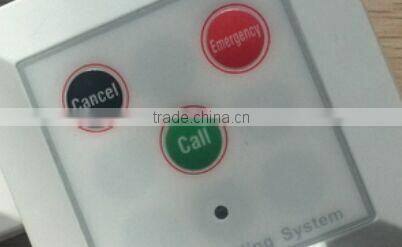

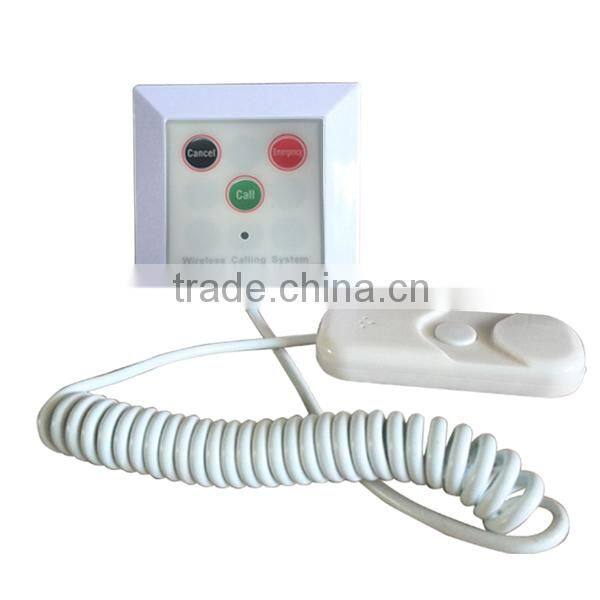

Specification of K-W3-H call button
1.Work with our receiver to combined the wireless calling system
2.Can be installed on wall-mounted installation.
3.When the customers or patients need help only push cord to call, the calling number will be shown on the screen, so everyone can easy to know who is calling.
4. 4-key:Call button from cord;Call button, Emergency button and cancel button
5.Color: White
6.Material: PC

Technical Parameter:
Working voltage:DC12V
Working current:≤35mA
Use Frequency: 433.92mhz
Transmitted Power:≤10mW
Transmitted Distance: >300m in open area
Dimension:80*80*10mm

Any language any LOGO acceptable

Install and Maintain

*Wireless device, no wiring involved.

*The Display and Signal Enhancer are operated by 100-240V power supply.

*The button work with 12V 23A battery.

*The buttons number can be registered by the Display Setting, the button can fixed or paste on the wall or table. and the button is waterproof.

*Some of buttons any language and logo is acceptable .Welcome your OEM.

Advantage of our system

1) Revolutionary product to increase staff efficiency, lower labor costs.

2) Simple but elegant, value for money.

3) Customer do not need to shout or wave hands to call waiters, improving customer appreciation of service.

4) Provide a comfortable atmosphere.

If you are interested in emergency service call bell system, please feel free to contact me. I will reply to you in 24 hours, thanks.
