Upset Forging Machine
cold forging machine: working factory
Our factory produces Multistage bearing cold former. From type 11Bfive stages to 33Bsix dies with 20types machine.We also could make special machine according the customers requirement.
The main body adopt qt500 cast metal. Great tensile strength, high resistance to wear.
The main slide block adopt V types design and alloy steel. Strict heat treatment. It could guarantee the high precision and stability under high speed working.
The driving gear of tongs adopt planetary gear. It could strict control tongs overturn/translation and make the feeding correctly.
The machine have air brake system/automatic malfunction detection system/safety protect device. It will be automatic stop when it has malfunction. Easy operation, High Safe.
cold forging machine: on testing
Specification
19B-5S Multistage Cold Former
Dies: 5
Stage Gap: 80mm
Main Slide Block Trip: 100mm
Max Shear Length:15mm
Max Shear Diameter:20mm
Max Speed: 170piece per minute
Back Out Length:22mm
Main Power: 22KW
Net Weight: 15000KG
Dimension: 3500*2600*1500mm

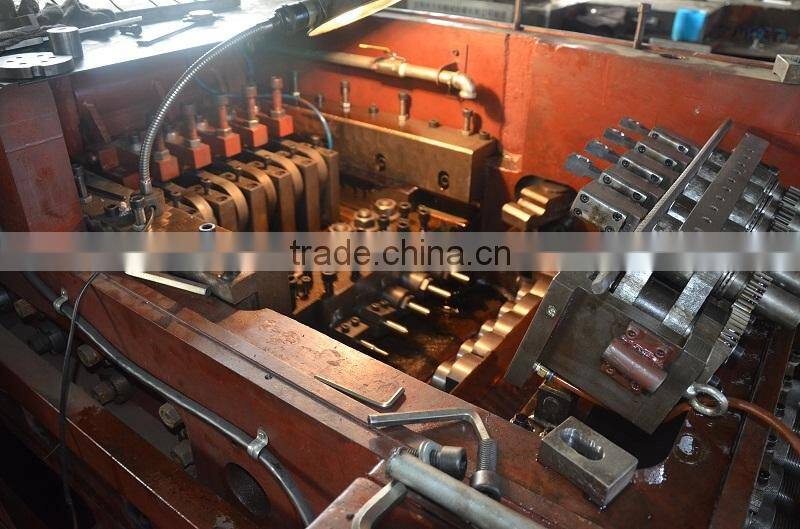

cold forging machine: on working

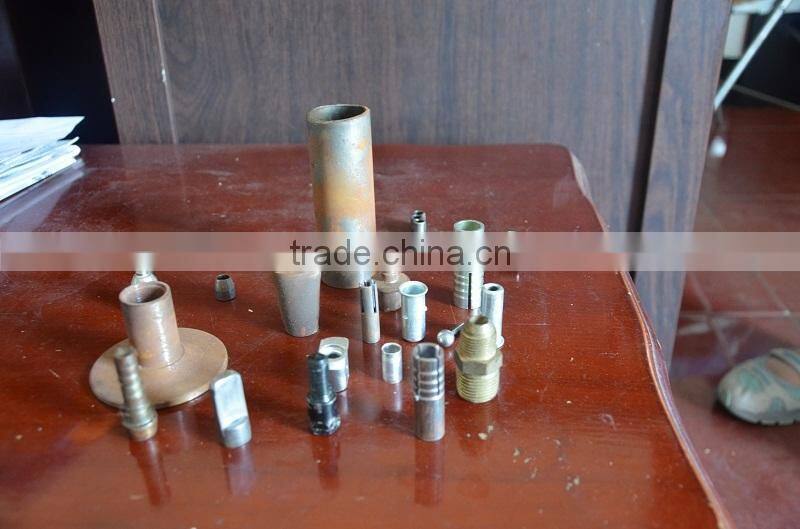

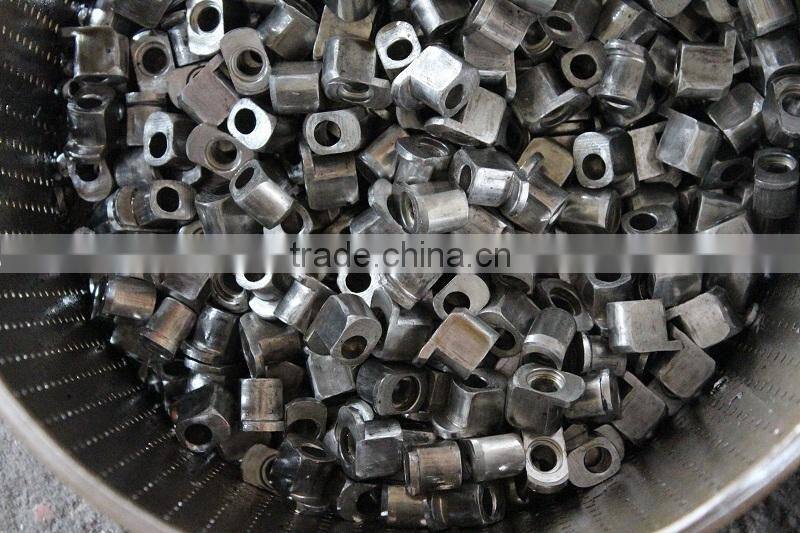

China Automacold forging machine:finished products samples

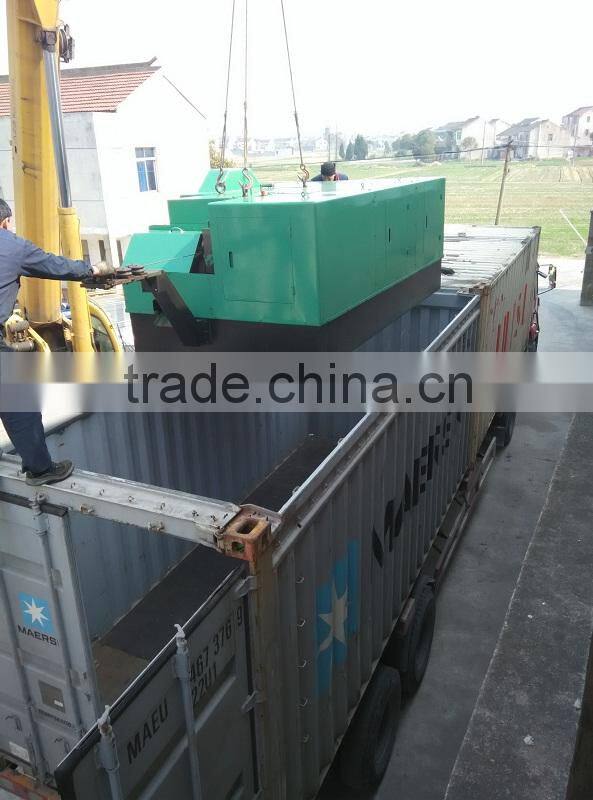

cold forging machine: loading into container(export to Russia)
Welcome to visit our cold forging machine in factory and Shanghai, China.
