roof turbine ventilator
1.Model 200mm, 300mm, 500mm, 600mm, 900mm
2.Material: made of stainless steel by stretching forming, attractive appearance, no rust.
3.Bearing: wholel sealing bearing, which can ensure it operates smoothly and constantly.
4.Special central shaft design, high-class lubricating bearing system: preventing turbine blades
5.rotating at high speed from deformation, and extending the service life.
6.Inside support frame: cast iron.
Advantages
1, Automatically running. wind drive. One time investment, no anymore cost.
2. No operating cost, no electricity consumption, environmental protection, energy-saving.
3. No need maintenance, long life working.
4. Light weight, strong and durable construction.
5. Weather resistance, self-cleanness, high revolving sensitivity and high air venting efficiency.
6. Easy installation:.installation position: flat roof, pitched roof, concrete roof and contour plate of
various industrial plants.
7, waterproof efficiency may reach 100%.

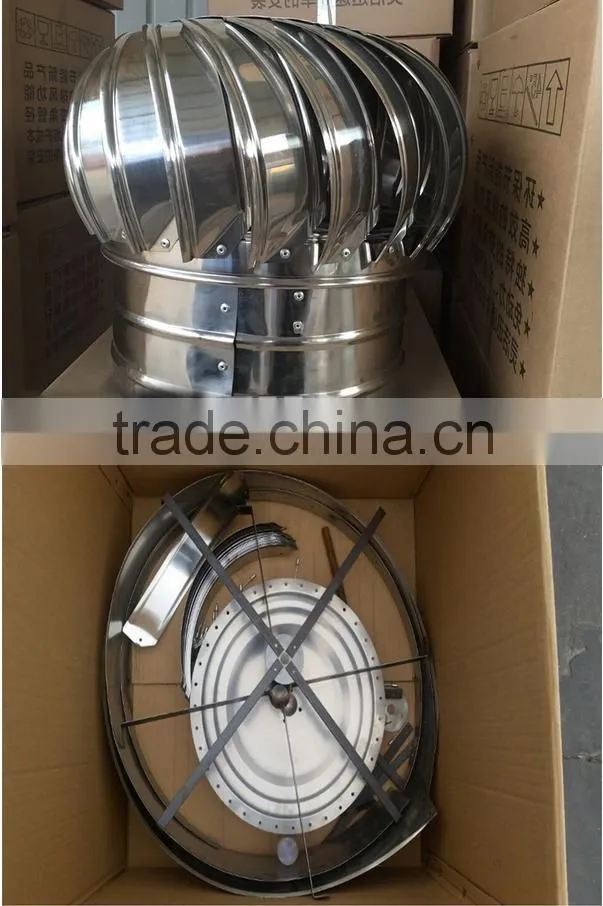

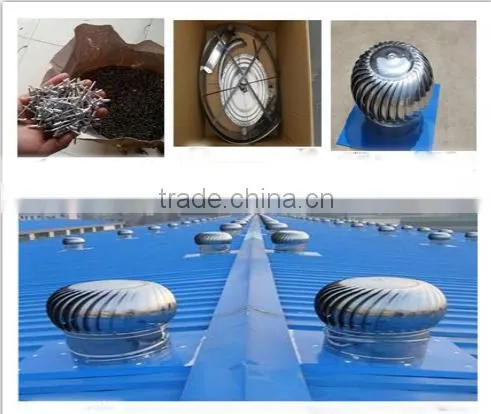

Product Picture
Function:
1)Exhausting turbid, humid hot air to exterior and supplying fresh air to interior.
2)Produce air convection as a heat radiator, reducing indoor temperature, increasing air fresh.
3) Reduce air conditioning load, increasing the cooling effect.
Widely used in these places
1) Ware house;
2) Factories and workshops (such as paper mill, galvanized products producing factories,
painting factories);
3) Garage and other buildings which need air ventilate.
1.Benefits Light weight, high revolving speed, strong corrosion resistance, high air exhausting efficiency, sturdy and durable, clean and smooth, uniform color, and easy maintenance.
2.Working Condition Temperature difference between indoor and outdoor is 0.45, It begins to revolve at the wind speed of 0.12m/ s.
3.Roofing Angle Applied in different roofing in the scope of 0-22.5°oblique angle.
4.Warranty 15 years
5.Applicable scope Industrial workshop, commercial and civil housing.
Origin of product China
NORMAL SPECIFICATION
Type |
Material |
Base thickness |
Weight
|
Blades number
|
Blades thickness
|
300mm |
Stainless steel201 |
0.40mm |
3.5kg |
24 |
0.25mm |
400mm |
Stainless steel201 |
0.40mm |
4.2kg |
28 |
0.31mm |
500mm |
Stainless steel201 |
0.40mm |
5kg |
32 |
0.31mm |
600mm |
Stainless steel201 |
0.40mm |
7kg |
36 |
0.35mm |
700mm |
Stainless steel201 |
Need order specially as requirements |
|||
800mm |
Stainless steel201 |
0.40mm |
9.5kg |
42 |
0.37 |
NOTE: material(stainless steel 201,stainless steel 304,color steel sheet,,pre galvanized steel sheet,aluminum),standard,package, can be ordered according to your own requirements.
Ventilators are available for a wide variety of colors by powder coating. So it can not only make your home comfortable but also match with your roof. For more colors, please feel free to contact with us.
If you are interested in our products, please feel free to contact us!
