Help CenterDIN 24 340 Sandwich Plate Pilot Operated Check Valve Z2S 10 L3X
Related Products
-
Sandwich Plate Pilot Operated Check ValveUS$ 20 - 50MOQ: 50 Sets -
Pilot Operated Check ValveUS$ 20 - 50MOQ: 50 Sets
-
Taper Seat Sub-plate Mounting Check Valve Type RVPUS$ 20 - 50MOQ: 50 Sets
-
Sub-plate Mounting Check Valve Type SUS$ 20 - 50MOQ: 50 Sets
-
Flow Divider Combiner FD10US$ 20 - 50MOQ: 50 Sets
Z2S-10-A-1-L3X-V
1 2 3 4 5 6
Order Form of hydraulic valve:

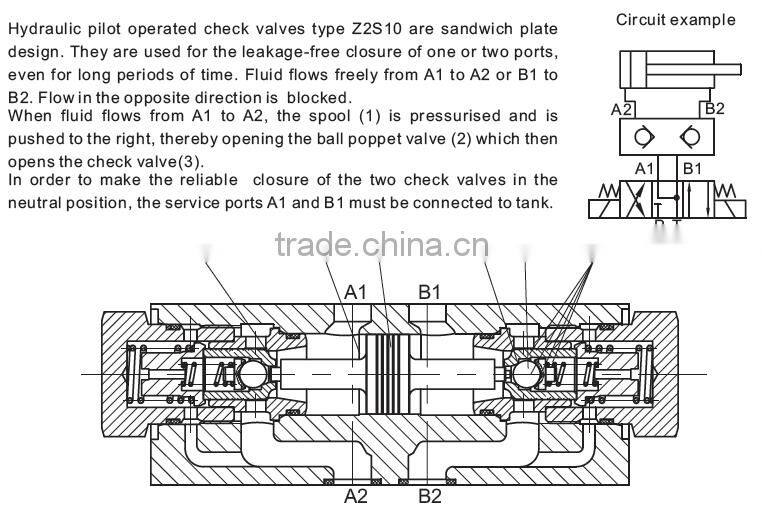

1. Z2S: Check valve, hydraulically pilot operated
2.Nominal size 10
3. -: Check alve in channels A and B
A: Check alve in channel A
B: Check alve in channel B
4.1: crack pressure 0.15MPa
2: crack pressure 0.3MPa
3: crack pressure 0.6MPa
4:crack pressure 1.0MPa
5. L3X: Series L30 to L39: L30 to L39 uncheanged installation and connection dimensions
6. No code: NBR seals ; V: FPM seals

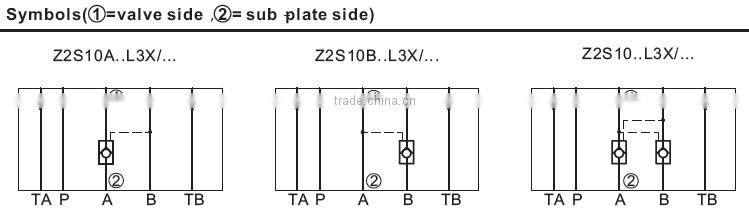

Symbol of ball valve:

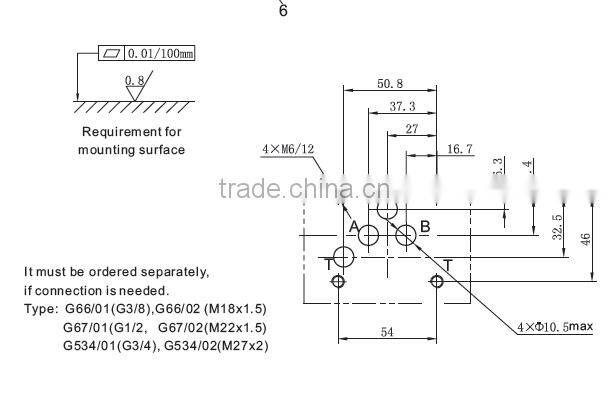

Overall Dimension of valve:
Specifications:
1. Series Code: Z2S10
2. Valve Body Material: QT500
3. Operating Temperature: 1. -30~+80°C, 2. -20~+80°C
4. Other Airproof:No code-NBR, V-FPM
5. Medium: Mineral oil suitable or Phosphate ester
6.Viscosity range(mm2/s):2.8 to 500
7. Design Number: To Be Decided By The Manufacturer
More products for your to choose:
HRPC mainly export to Northern Euroe, include Germany, Italy, Finland, UK, France, Spain, ect
Our products reputed of high quality and quick delivery time.
Strength of HRPC high pressure ball valves
1) 13 yesrs Experience
2) Steady production Capacity
3) Competitive Price
4) High standard quality
5) Strict inspections
6) good after-sale service
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
