Product Details
Type: | Valves | Model Number: | KHB-NPT1 | Brand Name: | HRPC |
Place of Origin: | Zhejiang, China |
Product Description
HYCON KHB3K-1NPT-1-1-1-4/L, BALL VALVE, 3 WAY, 1" NPT, 5000 PSI, NNB
npt ball valve
high pressure 5000psi
2 way full port dn25
female thread 1 inch
Symbol:
Overall Dimension:
PORT:
Specific dimension sheet:
Model | PN(Bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | SW1 | SW2 |
KHB-NPT1 | 315 | 25 | 25 | NPT1 | 21 | 113 | 65 | 57 | 79 | 28.5 | 64 | 12 | 46 |

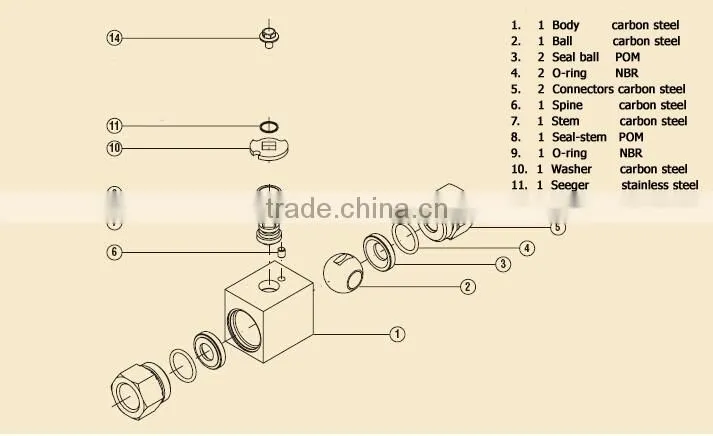

Material sheet:
Dimension Sheet:
KHB Series Ball Valve | ||
Size | Diameter | Pressure |
1/8" | 4mm | 7250psi |
1/4" | 6mm | 7250psi |
3/8" | 10mm | 7250psi |
1/2" | 13mm | 7250psi |
1/2" | 16mm | 5800psi |
3/4" | 20mm | 5000psi |
1" | 25mm | 5000psi |
1.1/4" | 32mm | 5000psi |
1.1/2" | 40mm | 5000psi |
2" | 50mm | 5000psi |
Specifications:
1. Series Code: KHB3K(BK3) Series Two-Position Three-Way Ball Valve
2. Joint Code: G**, **LR, **SR, PT**, NPT**
3. Valve Body Material: 1-Steel
4. Ball Body Material: 1-Steel, 2-Brass
5. Operating Temperature: 1. -25~+100°C, 2. -30~+170°C
6. Other Airproof: 2-NBR, 4-FPM
7. Handle Type: 02-Aluminium Crooked Handle, 04-Casting Zinc Crooked Handle, 06-Steel Crooked Handle, 09-Without Handle
8. Design Number: To Be Decided By The Manufacturer
9. Surface Disposal: Blank-Phosphoric Polish, G-Electroplated Yellow Zinc

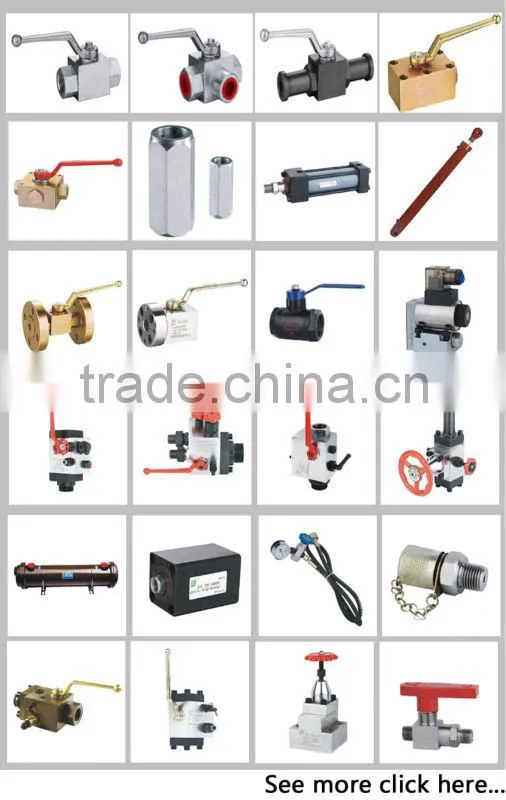

More products for your to choose:
we are producing ball valve and hydraulic cylinders with quick delivery and competitive price. Ball valves covers the size from 1/4 inch to 2 inch in 2-way & 3-way type, with the materials of carbon steel, stainless steel and brass, connection type include female thread, male thread, flange, manifold mounting.
Besides, customers can specify the surface disposal, such as Blank-Phosphoric Polish, G-Electroplated Yellow (or White) Zinc. and the handles can be designed for special requirements.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
