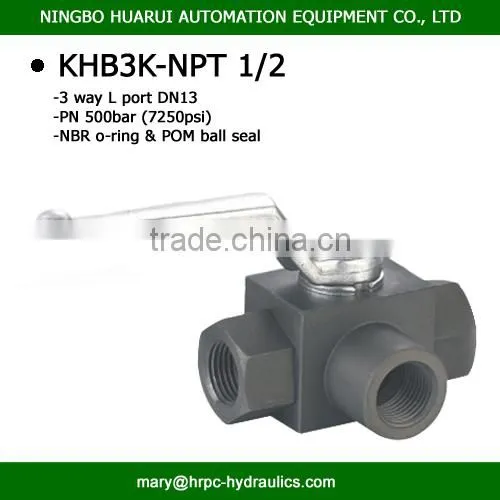

PRODUCTS NAME: hydac standard 3-way high pressure ball valves carbon steel or stainless steel China manufacturer
Ball valve drawing:
Symbol:
Overall Dimension:
PORT:
Specific dimension sheet:
| Model | PN(Bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | SW1 | SW2 | S |
| KHB3K-NPT1/2 | 400 | 13 | 12 | / | NPT1/2 | 16 | 83 | 48 | 35 | 49 | 17 | 40 | 09 | 30 | 40 |
Material sheet:
Dimension Sheet:
| KHB3K Series Ball Valve | ||
| Size | Diameter | Pressure |
| 1/8" | 4mm | 7250psi |
| 1/4" | 6mm | 7250psi |
| 3/8" | 10mm | 7250psi |
| 1/2" | 13mm | 7250psi |
| 1/2" | 16mm | 5800psi |
| 3/4" | 20mm | 5000psi |
| 1" | 25mm | 5000psi |
| 1.1/4" | 32mm | 5000psi |
| 1.1/2" | 40mm | 5000psi |
| 2" | 50mm | 5000psi |
Specifications:
1. Series Code: KHB3K(BK3) Series Two-Position Three-Way Ball Valve
2. Joint Code: G**, **LR, **SR, PT**, NPT**
3. Valve Body Material: 1-Steel
4. Ball Body Material: 1-Steel, 2-Brass
5. Operating Temperature: 1. -25~+100°C, 2. -30~+170°C
6. Other Airproof: 2-NBR, 4-FPM
7. Handle Type: 02-Aluminium Crooked Handle, 04-Casting Zinc Crooked Handle, 06-Steel Crooked Handle, 09-Without Handle
8. Design Number: To Be Decided By The Manufacturer
9. Surface Disposal: Blank-Phosphoric Polish, G-Electroplated Yellow Zinc
More products for your to choose:
HRPC mainly export to Northern Euroe, include Germany, Italy, Finland, UK, France, Spain, ect
Our products reputed of high quality and quick delivery time.
Strength of HRPC high pressure ball valves
1) 13 yesrs Experience
2) Steady production Capacity
3) Competitive Price
4) High standard quality
5) Strict inspections
6) good after-sale service
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
