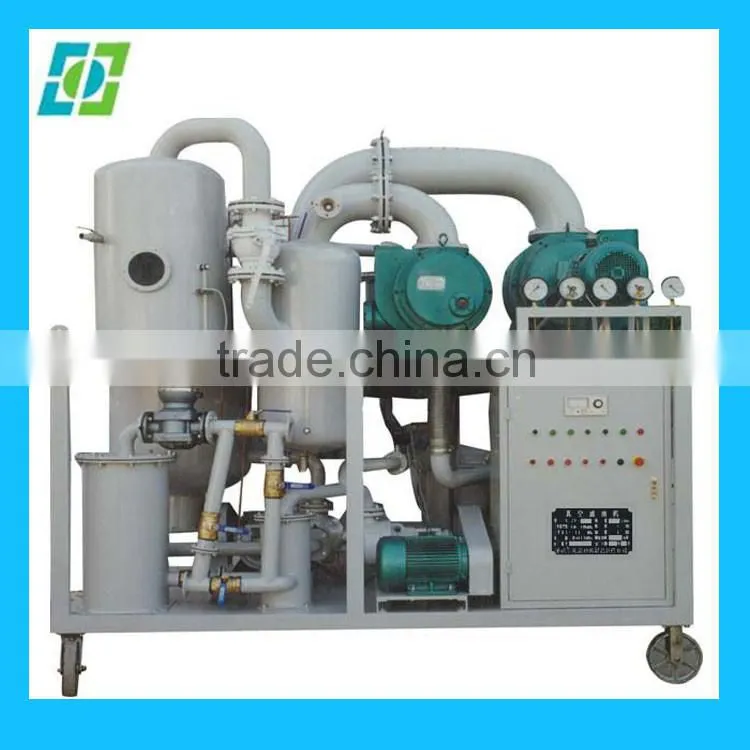

High-Vacuum Transformer Oil Filtration And Dehydration Plants
Trailer Type Double-stage Vacuum Oil Purifier Application
1.Used in power plants, power plants, electric power companies, Enterprise power maintenance department. Applicable to 110KV or more super high pressure and ultra high voltage transmission and transformation equipment and State of main transformer in power grid voltage, especially in altitude areas
2. As a high level of imported oil, and oil, transformer oil, EHV transformer oil of oil deep purification treatment
3. For a depth of oil requires very low water content dehydrating, such as capacitors, refrigeration oil
4. This equipment have vacuum oiling, vacuum pumping functions to meet the construction site, vacuum drying, hot oil circulation filtering functions
Unique Advantages Of High-Vacuum Transformer Oil Filtration And Dehydration Plants
Relay-style two-stage time, and power equipment-bridge connections, drain, filter, oil working independently can also be run at the same time. Nano-molecular flocculant application filtering technology of heavy metal ions, which limits than ordinary oil filter oil pressure value higher insulation value stability
Features Of DEDING Double Stage High Vacuum Insulating Oil Purifier
1. Two-stage relay high vacuum, real double-stage vacuum oil purifier, vacuum, high pumping speed
2. A filter can put pressure to 65KV, reducing heating oil filter several times causing the oil aging of hazard
3. The suction speed power ≥ 333L/s and satisfy the need for transformer vacuum
4. High efficiency dehydration and gas system, fast and efficient removal of oil in the water, trash, hydrocarbons and other harmful ingredients improve flash point and pressure-resistant strength of insulating oils
5. Photoelectric liquid level automatic control, automatic climate control, automatic foam, automatic pressure protection, easy operation, realization of human-machine separation
6. Can achieve above 110KV transmission and transformation equipment vacuum oiling, vacuum drying, vacuum filters
7. Heating system using multi-pipe design, ensuring even heating and temperature stability. Multiple sets of heating of the heating system, according to the oil temperature control of heating power, makes devices more energy-efficient.
8. Heating system using multi-pipe design, ensuring even heating and temperature stability. Multiple sets of heating of the heating system, according to the oil temperature control of heating power, makes devices more energy-efficient.
Trailer Type Double-stage Vacuum Oil Purifier Model
Index Item |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
Flow rate |
L/min |
30 |
50 |
100 |
150 |
200 |
250 |
300 |
Work Vacuum |
Mpa |
-0.08~-0.099 |
||||||
Working Pressure |
ppm |
≤0.3 |
||||||
Oil Breakdown voltage |
KV |
≥65 |
||||||
Water Content |
ppm |
≤5 |
||||||
Gas Content |
% |
≤0.1 |
||||||
Impurity particle size |
μm |
1~5 |
||||||
Constant temperature control range |
℃ |
20~80 |
||||||
Power Supply |
V/Hz |
380/50 or as your request |
||||||
Oil Breakdown voltage |
KV |
≥65 |
||||||
Noise |
dB |
≤75 |
≤75 |
≤80 |
≤80 |
≤80 |
≤82 |
≤85 |
Electric heating power |
KW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
Total Power |
KW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
Inlet (outlet) diameter |
mm |
25 |
32 |
42 |
50 |
50 |
60
|
60
|
Equipment weight |
KG |
450 |
550 |
900 |
1150 |
1450 |
1600 |
1950
|
Dimensions |
mm |
1250x900 x1700 |
1400x950 x1850 |
1750x1250 x1950 |
1800x1300 x1950 |
2000x1400 x2100 |
2050x1500 x2100 |
2500x1800 x2400 |
Remark |
The above data for reference only. |
|||||||
Optional configuration and equipment form:
1. According to the needs of the user can be equipped with PLC automatic control, touch screen operation, and dynamic display
2. The main components are imported products, matching with the added feature of flow meter
3. According to the customer using the site, matching BT level "or" CT-level explosion-proof
4. Machine can be specially made according to user requirements into a fixed, closed, half closed, marquee, AWNING, trailer type
5. User can choose device color you need material and equipment
Oil After Purification
Chongqing Yinqiao De Ding Filter oil machine Co.,Ltd ,is a professional engaged in the modernization of fluid purification processing research and development ,product manufacturing, technical services and equipment sales as one of the high-tech enterprises.
Company as a Chongqing second filter factory ,the 1998 reform ,a wide range of fluid international advanced purification technology .In 2002,company attracted Germany and Britain returned,
Company had development and production more than 100 products with independent intellectual property rights .Products are widely used in electric power ,petroleum ,chemical, metallurgy , mining machinery ,aviation, ship ,railway cement ,paper ,metal processing and others fields , At the same time , saving cost for customer ,reducing energy consumption ,play an important role in reducing pollution.
The company have five unique patent technology ,with high precision ,high stability ,high efficiency ,low energy consumption ,etc .get many successful multinational large projects.
“De Ding oil filter—focus can be experts” slogan was quickly recognized by customers.
1. What is your brand?
Q: Our own brand is “DEDING” but we can do OEM
2. Are you manufactory or Trade Company?
Q: DeDing is a Commerce Company, and we have our own manufactory as well.
3.Can you sign contract with us?
Q:Yes, We can sign a contract with you to be more safety.We trust that with us your money will be in safe and your business will be in safe.
QUALITY IS OUR CULTURE

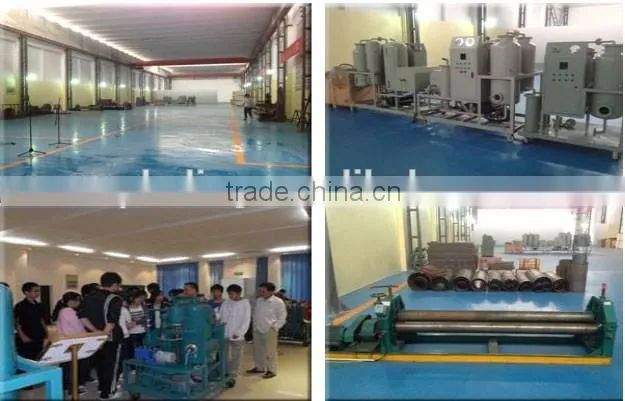

Welcome to our factory on-site inspection
