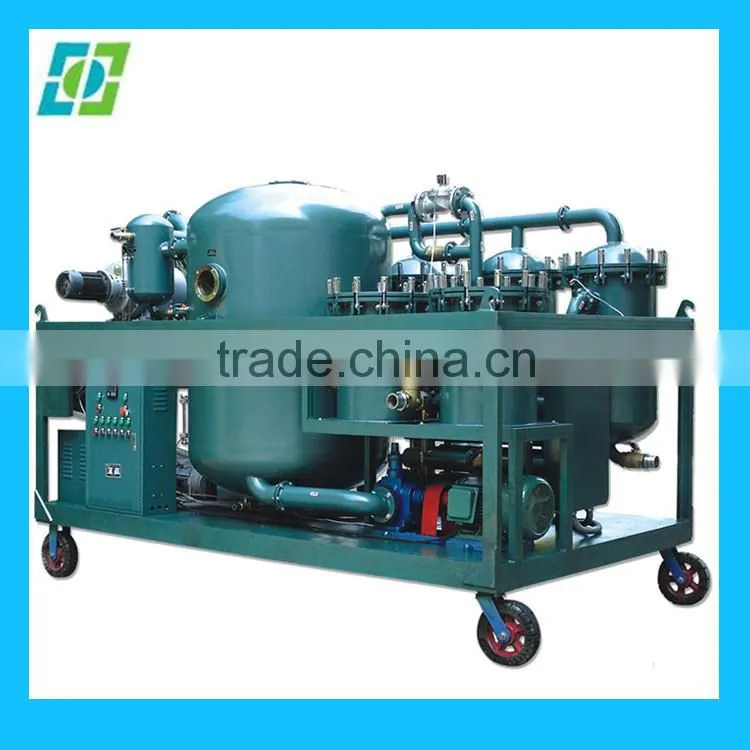

Two Stage Transformer Oil Filter Machine
ZYA Series Used Transformer Oil Filter Machine Application
1. For working with unqualified transformer oil, oil-oil circuit breakers, capacitors, cables, transformer oil, switch oil oil dewatering, degassing, impurity removal processing
2.For the maintenance of high voltage electrical equipment, installation and maintenance
3. Can also be used to dry wet vacuum of power equipment and transformer oil
Unique Advantages Of Used Transformer Oil Filter Machine
This Machine achine has multiple stereoscopic Flash UG technique in addition to water, and nano-flocculation filter to effectively remove heavy metals in the oil, ensure insulation values fall. its efficiency vacuum oil filter several times higher than the average.
Features Of DEDING Used Transformer Oil Filter Machine
1. Large multi-Echelon fine filtration effectively removes oil impurities and oxidation in fibres
2. Applies advanced three dimensional Flash technologies, efficient removal of water content in oil and gas
3. High efficiency dehydration and gas system, fast and efficient removal of oil in the water, trash, hydrocarbons and other harmful ingredients improve flash point and pressure-resistant strength of insulating oils
4. Photoelectric liquid level automatic control, automatic climate control, automatic foam, automatic pressure protection, easy operation, realization of human-machine separation
5. Field of power transmission and transformation equipment vacuum oiling, vacuum filtration
6. Heating system using multi-pipe design, ensuring even heating and temperature stability. Multiple sets of heating of the heating system, according to the oil temperature control of heating power, makes devices more energy-efficient.
7. Heating system using multi-pipe design, ensuring even heating and temperature stability. Multiple sets of heating of the heating system, according to the oil temperature control of heating power, makes devices more energy-efficient.
Two Stage Transformer Oil Filter Machine Model
Index Item |
Unit |
ZYA-10 |
ZYA-20 |
ZYA -30 |
ZYA -50 |
ZYA -100 |
ZYA -150 |
ZYA-200
|
Flow rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
Work Vacuum |
Mpa |
-0.06~-0.095 |
||||||
Working Pressure |
ppm |
≤0.4 |
||||||
Oil Breakdown voltage |
KV |
≥65 |
||||||
Water Content |
Mg/L |
≤5 |
||||||
Gas Content |
|
≤0.1 |
||||||
Mechanical Impurities |
% |
NO |
||||||
Constant temperature control range |
℃ |
≤70 |
||||||
Power Supply |
V/Hz |
380/50 |
||||||
Noise |
dB |
≤65 |
||||||
Total Power |
KW |
17.5 |
27 |
27 |
33 |
65 |
66 |
81 |
Inlet (outlet) diameter |
mm |
25 |
25 |
32 |
42 |
42 |
50
|
60
|
Equipment weight |
KG |
400 |
400 |
600 |
1000 |
1200 |
1500
|
1800
|
Dimensions |
mm |
1100x800 x1400 |
1100x800 x1400 |
1600x800 x1400 |
1700x1000 x1800 |
1800x1000 x1900 |
2000x1100 x2000 |
2300x1250 x2300 |
Remark |
The above data for reference only. We can make OEM,ODM |
|||||||
Optional configuration and equipment form:
1. According to the needs of the user can be equipped with PLC automatic control, touch screen operation, and dynamic display
2. The main components are imported products, matching with the added feature of flow meter
3. According to the customer using the site, matching BT level "or" CT-level explosion-proof
4. Machine can be specially made according to user requirements into a fixed, closed, half closed, marquee, AWNING, trailer type
5. User can choose device color you need material and equipment
ZYA Series Used Transformer Oil Filter Machine Flow Graph
Oil After Purification
Chongqing Yinqiao De Ding Filter oil machine Co.,Ltd ,is a professional engaged in the modernization of fluid purification processing research and development ,product manufacturing, technical services and equipment sales as one of the high-tech enterprises.
Company as a Chongqing second filter factory ,the 1998 reform ,a wide range of fluid international advanced purification technology .In 2002,company attracted Germany and Britain returned,
Company had development and production more than 100 products with independent intellectual property rights .Products are widely used in electric power ,petroleum ,chemical, metallurgy , mining machinery ,aviation, ship ,railway cement ,paper ,metal processing and others fields , At the same time , saving cost for customer ,reducing energy consumption ,play an important role in reducing pollution.
The company have five unique patent technology ,with high precision ,high stability ,high efficiency ,low energy consumption ,etc .get many successful multinational large projects.
“De Ding oil filter—focus can be experts” slogan was quickly recognized by customers.
1. Are you manufactory or Trade Company?
Q: DeDing is a Commerce Company, and we have our own manufactory as well.
2.Can we see the real running machine?
Q:In our factory there are different kinds of running machine. Welcome to visit us.
3.How can you guarantee the after sale service?
Q:We will send you our experienced senior engineer for installation and training
4.Can you sign contract with us?
Q:Yes, We can sign a contract with you to be more safety.We trust that with us your money will be in safe and your business will be in safe.
QUALITY IS OUR CULTURE
Welcome to our factory on-site inspection
