Product Details
Condition: | New | Type: | Press Filter | Structure: | Vacuum |
Place of Origin: | Chongqing, China | Brand Name: | DEDING | Model Number: | TYA-30 |
Power(W): | 47KW | Weight: | 400KG | Dimension(L*W*H): | 1100x800x1400mm |
Certification: | ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

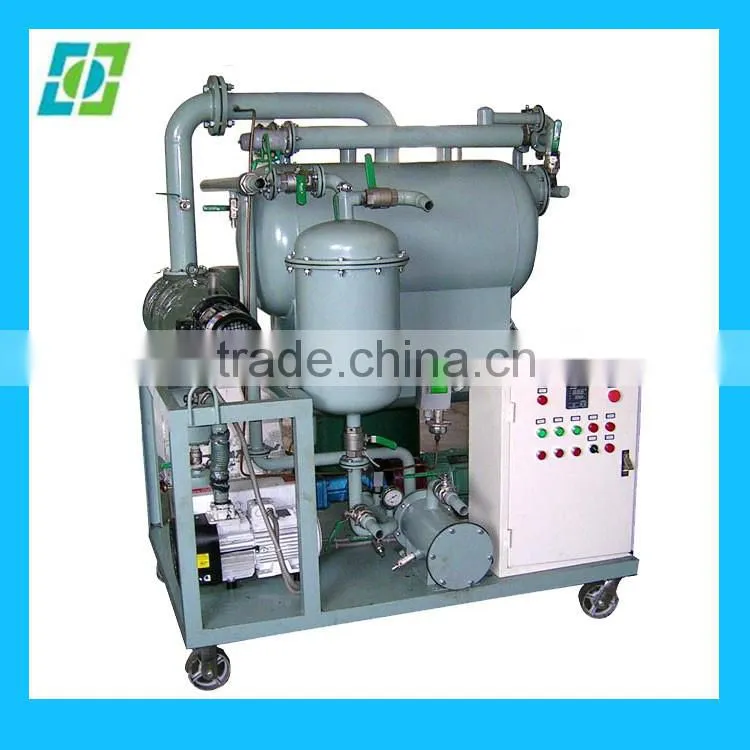

High Filtration Vacuum Energy Saving Oil Purifier Devicer
TYA Series Vacuum Lubricating Oil Filter Machine :
1. Used in machinery manufacturing,metallury,mining,petroleum,chemical,electric power,transportation,railways and other industries,mainly used in the machine oil,hydraulic oil,compressor oil,refrigeration oil,oil heat treatment,stretching oil,gear oil,gasoline engine oil,diesel oil,such as substandard lubricaring oil purification treatment.
2. Through the oil filter completely purfication ,which can effectively remove the oil gas,water,impurities,volatile matter(such as alcohol,gasoline,ammonia) colloid,etc.Improve the oil quality,ensure the hydraulic system,power system,the normal operation of the lubrrication system.
Our TYA Series Vacuum Lubricating Oil Filter Machine Advantages:
1.Easy installation;
2.Easy operation;
3.Low operating cost;
4.Energy saved;
5. Environmental protection
6.Reduction of machine overhauls;
7.Operation unattended.
High Filtration Vacuum Energy Saving Oil Purifier Devicer Model
Index Item | Unit | TYA-20 | TYA-30 | TYA-50 | TYA-100 | TYA-150 | TYA-200 | TYA-300 | ||||||
Flow rate | L/min | 20 | 30 | 50 | 100 | 150 | 200 | 300 | ||||||
Work Vacuum | Mpa | -0.06~-0.095 | ||||||||||||
Working Pressure | ppm | ≤0.4 | ||||||||||||
Water Content | % | ≤5 | ||||||||||||
Gas Content |
| ≤0.1 | ||||||||||||
Mechanical Impurities | % | NO | ||||||||||||
kinematical viscosity | Mm2/3 | GB443-84 | ||||||||||||
Break the submersibility | MgKOH/g | ≤60min(GB/T7605) | ||||||||||||
Cleaness | NAS | ≤NAS6 | ||||||||||||
Constant temperature control range | ℃ | ≤80 | ||||||||||||
Power Supply | V/Hz | 380/50 or as your request | ||||||||||||
Appearance |
| Transparent(visual) | ||||||||||||
Noise | dB | ≤65 | ||||||||||||
Inlet (outlet) diameter | mm | 20 | 30 | 32 | 40 | 42 | 50 | 60 | ||||||
Equipment weight | KG | 380 | 400 | 750 | 950 | 1020 | 1500 | 1800 | ||||||
Dimensions | mm | 1100*800 *1400 | 1100*800 *1400 | 1600*1100 *1850 | 1700*1100 *1850 | 1800*1100 *1950 | 2000*1100 *2000 | 2300*1250 *2300 | ||||||
Remark | The above data for reference only. We can make OEM,ODM |
Vacuum Lubricating Oil Filter Machine Flow Graph
Oil Parameter After Purification
Item | |
Water Content(ppm): | ≤50ppm(GB7600) |
Impurities Degree (Filtration precision) (μm): | ≤5um |
Cleanness | ≤5-8 (NAS1638) |
Gas Content: | ≤0.1% (GB/T423) |
Demulsification value(min): | New Oil≤15min , Running oil≤30min (GB/T7305) |
Acid Value(mgkoH/g): | ≤0.25 (GB/T264) |
Oil After Purification
Chongqing Yinqiao De Ding Filter oil machine Co.,Ltd ,is a professional engaged in the modernization of fluid purification processing research and development ,product manufacturing, technical services and equipment sales as one of the high-tech enterprises.
Company as a Chongqing second filter factory ,the 1998 reform ,a wide range of fluid international advanced purification technology .In 2002,company attracted Germany and Britain returned,
Company had development and production more than 100 products with independent intellectual property rights .Products are widely used in electric power ,petroleum ,chemical, metallurgy , mining machinery ,aviation, ship ,railway cement ,paper ,metal processing and others fields , At the same time , saving cost for customer ,reducing energy consumption ,play an important role in reducing pollution.
The company have five unique patent technology ,with high precision ,high stability ,high efficiency ,low energy consumption ,etc .get many successful multinational large projects.
“De Ding oil filter—focus can be experts” slogan was quickly recognized by customers.
