Home > Industrial Equipment & Components > Filtration Equipment & Parts > Oil Filter > High Performance Turbine Oil Vacuum Refinery Device

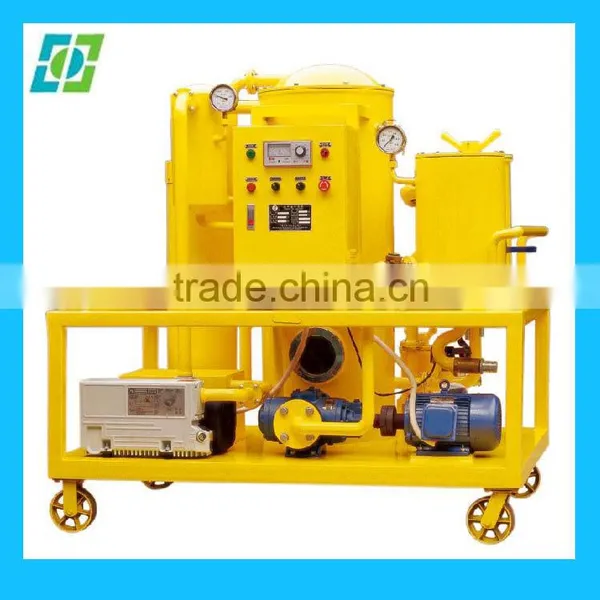

High Performance Turbine Oil Vacuum Refinery Device

Name: High Performance Turbine Oil Vacuum Refinery Device
Brand: DEDING
SKU: 106842345
Availability: InStock

High Performance Turbine Oil Vacuum Refinery Device thumbnail-1

High Performance Turbine Oil Vacuum Refinery Device photo-1

US$ 10,100 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Vacuum

Structure:

Vacuum

Contact Supplier Request Quote Chat Now

Chongqing De Ding Oil Filter Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing / Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Vacuum

Structure Vacuum

Place of Origin Chongqing, China

Brand Name DEDING

Model Number TY-150

Power(W) 66kw

Weight 1000KG

Dimension(L*W*H) 1500x1200x1800m

Certification ISO9001

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Series TY Waste Turbine Oil Vacuum Refinery Machine

Used in machinery manufacturing, metallury, mining, petroleum, chemical, electric power, transportation, railways and other industry.

Effectively remove the oil, gas, water, impurities, volatile matter colloid, etc. Improve the oil quality, ensure the hydraulic system, power system, the normal operation of the lubrrication system.

Series TY Turbine Oil Purifier Machine Model

Index Item	Unit	TY-20	TY-30	TY-50	TY-100	TY-150	TY-200	TY-300
Flow rate	L/min	20	30	50	100	150	200	300
Work Vacuum	Mpa	-0.06~-0.095
Working Pressure	ppm	≤0.4
Water Content	%	≤5
Gas Content		≤0.1
Mechanical Impurities	%	NO
Flash Point(Silence)	℃	≥170(GB/T276)
Break the submersibility	MgKOH/g	≤60min(GB/T7605)
Filtration Precision	μm	1~2μm
Constant temperature control range	℃	≤70
Power Supply	V/Hz	380/50
Appearance		Transparent(visual)
Noise	dB	≤65
Heating Power	KW	15	18	24	45	60	72	84
Total Power	KW	17	20	27	48	66	81	97
Inlet (outlet) diameter	mm	25	25	32	42	50	50	60
Equipment weight	KG	450	500	600	800	1000	1100	1550
Dimensions	mm	1350900 1450	1350950 1500	13501000 1800	15001200 1800	15001200 1800	1600135 01800	16501350 1850
Remark	The above data for reference only.

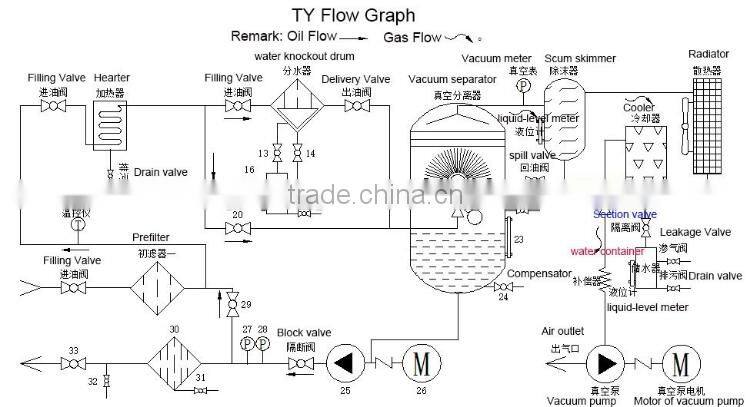

Tubine Oil Filter Machine Flow Graph

Before After

Chongqing Yinqiao De Ding Filter oil machine Co., Ltd, is a professional engaged in the modernization of fluid purification processing research and development, product manufacturing, technical services and equipment sales as one of the high-tech enterprises. Company as a Chongqing second filter factory, the 1998 reform, a wide range of fluid international advanced purification technology. In 2002, company attracted Germany and Britain returned, Company had development and production more than 100 products with independent intellectual property rights. At the same time, saving cost for customer, reducing energy consumption, play an important role in reducing pollution.
