1kw(1000w) 110V/220V 50HZ 60HZ Pure Sine Wave Off Grid Solar DC to AC Inverter

1kw(1000w) 110V/220V 50HZ 60HZ Pure Sine Wave Off Grid Solar DC to AC Inverter thumbnail-1
1kw(1000w) 110V/220V 50HZ 60HZ Pure Sine Wave Off Grid Solar DC to AC Inverter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
thinkpower
Model Number:
TP-1000PS
Contact Supplier Request Quote Chat Now
Wuxi Thinkpower New Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name thinkpower
Model Number TP-1000PS
Output Power 601 - 800KW
Output Type Single
Size 285*146*80mm
Weight 2.5
Input Voltage 12/24/48v
Output Voltage 220-240v
Type DC/AC Inverters
Output Frequency 50/60hz



 Pure sine wave solar off grid inverter, is used for areas short of electricity or city power unavailable ,  easy installation and convenienct use.





Product Features

 High transfrom efficiency, start up fast

 High Surge Protection Power

 Pure sine wave output waveform

 Softstart function

 Strong adaptability and stability
 Safe and reliable with built in fuse
 With automatic over-current and output short circuit protection to avoid damage the equipment







Specifications
Model

TP-1000PS-

121

TP-1000PS-

241

 TP-1000PS-481 TP-1000PS-122 TP-1000PS-242 TP-1000PS-482
Rated power 1000 1000 1000 1000 1000 1000
Peak power 2000 2000 2000 2000 2000 2000
Dc input voltage 12 24 48 12 24 48
Ac output voltage  110 220
No load current 0.7A 0.35A 0.18A 0.7A 0.35A 0.18A
Ac output frequency 60HZ 50HZ
Ac output waveform pure sine wave
Waveform distortion THD<2%( Linear Load)
efficiency 85% 88% 90% 85% 88% 90%
Dc input  voltage range 10.5-15 21-30 42-60 10.5-15 21-30 42-60
Low voltage alarm 10.5+/-0.5 21+/-1 42+/-2 10.5+/-0.5 21+/-1 42+/-2
Low voltage shutdown 10+/-0.5 20+/-1 40+/-2 10+/-0.5 20+/-1 40+/-2
Over voltage protection 15.5+/-0.5 31+/-1 62+/-2 15.5+/-0.5 31+/-1 62+/-2
Low voltage recovery 12+/-0.5 24+/-1 48+/-2 12+/-0.5 24+/-1 48+/-2
Over voltage recovery 14.8 29.5 59 14.8 29.5 59
Protective function Low/Over voltage LED  Red light,
Over load LED Red light,
Short circuit LED Red light, automatic recovery
Input reverse connection Fuse Burn-out
Working temp. 0-40℃
Storage temp. Humidity (-30)-70℃
Dimension 285*146*80mm
Weight 2.5KG

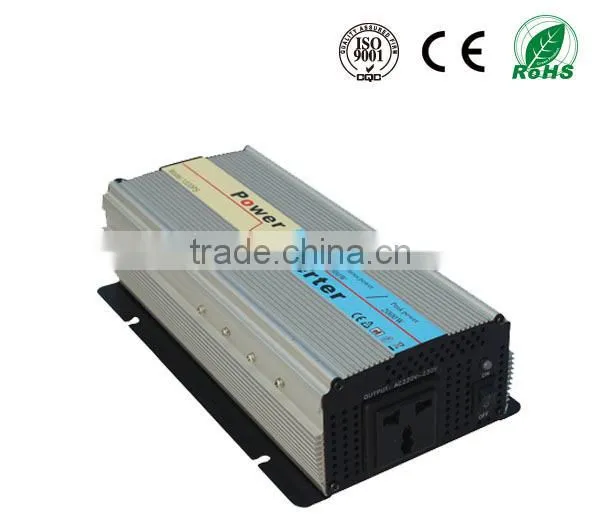

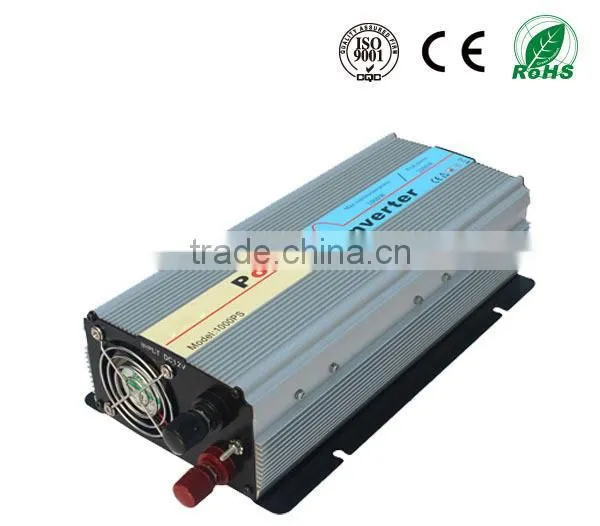

 Product Picture

 1kw(1000w) 110V/220V 50HZ 60HZ Pure Sine Wave Off Grid Solar DC to AC Inverter1kw(1000w) 110V/220V 50HZ 60HZ Pure Sine Wave Off Grid Solar DC to AC Inverter
