Solar Power 5kw(5000w) Pure Sine Wave Off Grid Inverter

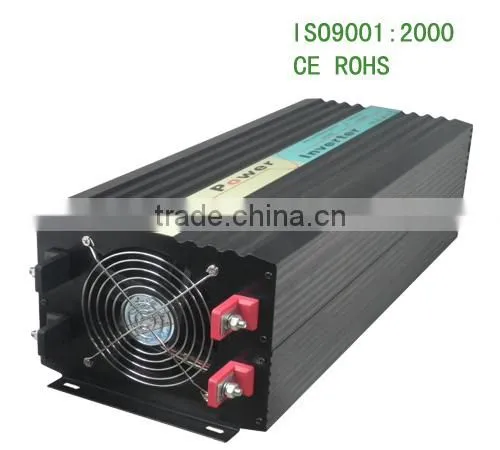

Solar Power 5kw(5000w) Pure Sine Wave Off Grid Inverter thumbnail-1
Solar Power 5kw(5000w) Pure Sine Wave Off Grid Inverter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
thinkpower
Model Number:
TP-5000PS
Contact Supplier Request Quote Chat Now
Wuxi Thinkpower New Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name thinkpower
Model Number TP-5000PS
Output Power 601 - 800KW
Output Type Single
Size 545*200*146MM
Weight 13.5
Input Voltage 12/24/48v
Output Voltage 220-240v
Type DC/AC Inverters
Output Frequency 50/60hz



 Pure sine wave solar off grid inverter, is used for areas short of electricity or city power unavailable ,  easy installation and convenienct use.





Product Features

 High transfrom efficiency, start up fast

 High Surge Protection Power

 Pure sine wave output waveform

 Softstart function

 Strong adaptability and stability
 Safe and reliable with built in fuse
 With automatic over-current and output short circuit protection to avoid damage the equipment







Specifications





Model



TP-5000PS-121



TP-5000PS-241



TP-5000PS-481



TP-5000PS-122



TP-5000PS-

242



TP-5000PS-

482



Rated power



5000W



5000W



5000W



5000W



5000W



5000W



Peak power



10000W



10000W



10000W



10000W



10000W



10000W



DC input voltage



12V



24V



48V



12V



24V



48V



AC output voltage



110VAC



220VAC



No-load current



1.7A



0.85A



0.42A



1.7A



0.85A



0.42A



AC output frequency



60HZ



50HZ



AC output waveform



Pure Sine Wave



Waveform distortion

THD<2%(Linear load)



Efficiency

>85%

>88%

>90%

>85%

>88%

>90%



DC input voltage range



10.5-15V



21-30V



42-60V



10.5-15V



21-30V



42-60V



Low Voltage Alarm

10.5-15V

21-30V

42-60V

10.5-15V

21-30V

42-60V



Low Voltage Shutdown

10.5+/-15V

21-30V

42-60V

10.5-15V

21-30V

42-60V



Over Voltage Protection



15.5+/-0.5V



31+/-1V



62+/-2V



15.5+/-0.5V



31+/-1V



62+/-2V



Low Voltage Recovery



12+/-0.5V



24+/-1V



48+/-2V



12+/-0.5V



24+/-1V



48+/-2V



Over Voltage Recovery



14.8V



29.5V



59V



14.8V



29.5V



59V











Protective function



Low/Over voltage



LED  Red light, automatic recovery



Over load



LED Red light, automatic recovery



Over temperature



LED Red light, automatic recovery



Short circuit



LED Red light, automatic recovery



Input reverse connection



Fuse Burn-out



Working Temp.



0-40C



Storage Temp. Humidity



(-30C)-70C



Dimension



545*200*146MM



Weight



13.5KG







 Product Picture

 Solar Power 5kw(5000w) Pure Sine Wave Off Grid Inverter
