Thinkpower 5kW Solar on Grid System Kit
Negotiable
MOQ: 5 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Thinkpower
Model Number:
S5000TL
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Thinkpower 5000W Gird Connected Home Used PV Kit System Supplier's ChoiceNegotiableMOQ: 5 Units -
Thinkpower 5000W Gird Connected Solar System Kits for Home ApplicationUS$ 3,900 - 4,300MOQ: 5 Sets
-
Thinkpower 5kW Solar Power System KitNegotiableMOQ: 5 Units
-
5kw Solar Energy Home System for Residential Roof ProjectNegotiableMOQ: 5 Units
-
Thinkpower 5kW Home Solar Power KitsUS$ 4,500 - 5,500MOQ: 5 Packs
Place of Origin
Jiangsu, China
Brand Name
Thinkpower
Model Number
S5000TL
Specification
Normal
Application
Home
Output Voltage (V)
220V
Load Power (W)
3000-5000W
Solar Power (W)
5000W
Work Time (h)
24
Specifications
1, High efficiency PV panels, inverter,mounting
2, all CE certified components
3,One-stop shopping
4, Tech support
Thinkpower 5kw high efficiency Solar system kit with high quliaty

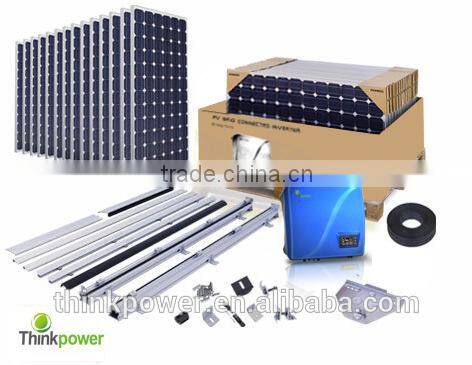

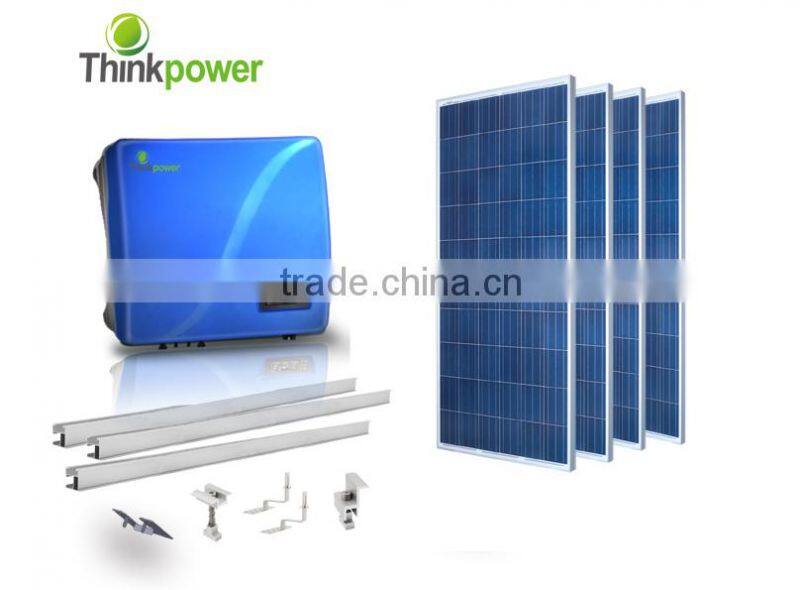

The Thinkpower Solar System Kits are excellent solutions for residential PV installations, it is designed to meet most roof conditions and pre-configured with major components, which simplifies your purchase source, saves overall cost and time.
Product specification
1.High quality and efficiency panel
2. high quality and smart grid connected PV inverter
| Model No | S3600TL | S4400TL | S5000TL |
| DC side/Input parameters | |||
| Max. DC power [W] | 3600 | 4400 | 5000 |
| Max. DC voltage [Vdc] | 550 | 550 | 550 |
| Min. System start/Shut down voltage [Vdc] | 100/150 | 100/150 | 100/150 |
| MPPT voltage range[Vdc] | 100~550 | 100~550 | 100~550 |
| Max. input current [A] | 13.5/13.5 | 13.5/13.5 | 15/15 |
| Number of MPP trackers | 2 | 2 | 2 |
| Strings per MPP tracker | 1 | 1 | 1 |
| AC side/output parameters | |||
| Nominal output power [W] | 3300 | 4000 | 4600 |
| Maximum output power [W] | 3600 | 4400 | 5000 |
| Nominal output voltage/range [V] | 208,220,230, 240/180~270 |
208,220,230, 240/180~270 |
208,220,230, 240/180~270 |
| AC grid frequency/range [Hz] | 50,60/±4.5 auto-selection |
50,60/±4.5 auto-selection |
50,60/±4.5 auto-selection |
| Maximum output current [A] | 16 | 21 | 23 |
| AC connection(with PE) | Single phase | Single phase | Single phase |
| Current distortion(THDi) [%] | <2.5 | <2.5 | <2.5 |
| Power factor [%] | 99.95 | 99.95 | 99.95 |
| Efficiency | |||
| Maximum conversion efficiency[%] | 97.5 | 97.6 | 97.8 |
| European efficiency[%] | 97.1 | 97.2 | 97.3 |
| MPPT efficiency[%] | 99.9 | 99.9 | 99.9 |
| Protection | |||
| DC reverse-polarity protection | yes | yes | yes |
| Short circuit protection | yes | yes | yes |
| Ground fault/residential current monitoring | yes | yes | yes |
| Grid monitoring | yes | yes | yes |
| DC/AC side varistors(thermally protected) | yes | yes | yes |
| General Parameters | |||
| Dimension(L/W/H)[mm] | 480*400*180 | ||
| Weight(kg) | 20.1 | ||
| Embedded DC Switch | Optional | ||
| Night Mode support | Optional | ||
| Night power consumption[W] | < 0.2 | ||
| Isolation type | Transformerless | ||
| Protection degree | IP65 | ||
| Operation temperature[ºC] | -25 ~ 60 | ||
| Heat Dissipation | Convection | ||
| Acoustic noise level[dB] | <25 | ||
| Altitude[m] | <2000 without power derating | ||
| Storage temperature[ºC] | -30 ~ 80 | ||
| Real Time Clock module | yes | ||
| LCD Display | Graphic and digital segment | ||
| Communication Interface | Standard WiF | ||
| Warranty: 5/10/15years yes/optional/optional/optional* More technical characteristics are avaliable on demand and customized. | |||
Warranty
Inverter : 5 years, with optional to 10/25 years
Panel : 10 years material & workmanship/25 years linear output warranty
Solar Racking :10 years material & workmanship/25 years service life
Solar Mounting System Distribution
Product Description
Certification

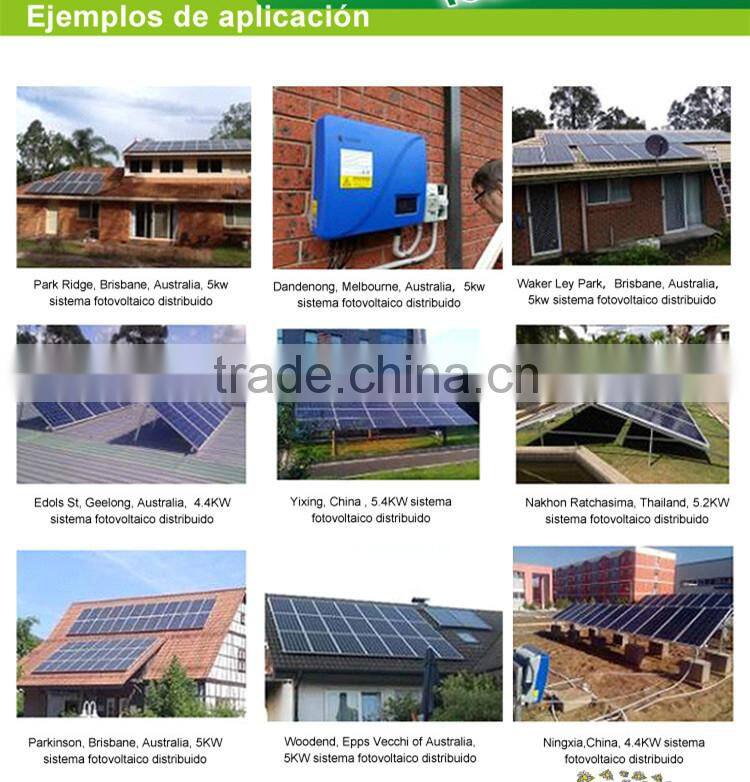

Reference projects
