Help Center3.6 KW Solar Grid Inverter With Dual MPPT, Free WiFI, 99.9% High Efficiency,SAA,IEC,VDE
Related Products
-
4.4 KW Solar Grid Inverter With Dual MPPT, Free WiFI, 99.9% High Efficiency, SAA,IEC,VDENegotiableMOQ: 1 Piece -
ThinkPower S4400TL Grid-tied Photovoltaic Inverter for Solar Project Together With Free Wifi MonitoringNegotiableMOQ: 1 Unit
-
China Leading Inverter Manufacturer High Quality 3.6kw pv Grid-tied InverterNegotiableMOQ: 1 Unit
-
Home Use New Type High Efficiency!!!Solar on Grid Inverter Singe Phrase Dual MPPT With Free Wifi MonitorNegotiableMOQ: 3 Units
-
New Design 5kw IP65 Protection,50/60HZ,high Quality Grid-tied Power Inverter With VDE4105,G83,G59,SAA ApprovedNegotiableMOQ: 3 Units
Specifications
1.Wide MPPT2.LCD display
3.high Efficiency 99.9%
4. Free WiFi
5.Aluminum alloy case

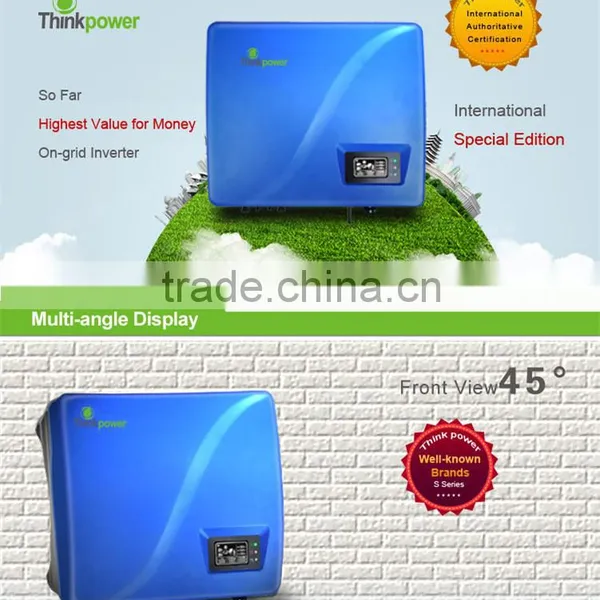

Thinkpower T series grid tied inverter(3.6KW, 4.4KW, 5KW ) were designed for residential and small commercial PV installations.It has CE, TUV,SGS, VDE, AS4777 certifications, can export to most countries.
* IP65 protection,water-proof.
* Excelent low light sensitive
* Strong aluminum alloy casting case
* WiFi module as standard setting
* Standard 5 years warranty,10years available
* Dynamic MPPT efficiency>99.9%
* Wide input voltage range
* 90% inner components adopts international brand.
* Low self consumption
* LCD display, easy to read.
| Model No | S3600TL | S4400TL | S5000TL |
| DC side/Input parameters | |||
| Max. DC power [W] | 3600 | 4400 | 5000 |
| Max. DC voltage [Vdc] | 550 | 550 | 550 |
| Min. System start/Shut down voltage [Vdc] | 100/150 | 100/150 | 100/150 |
| MPPT voltage range[Vdc] | 100~550 | 100~550 | 100~550 |
| Max. input current [A] | 13.5/13.5 | 13.5/13.5 | 15/15 |
| Number of MPP trackers | 2 | 2 | 2 |
| Strings per MPP tracker | 1 | 1 | 1 |
| AC side/output parameters | |||
| Nominal output power [W] | 3300 | 4000 | 4600 |
| Maximum output power [W] | 3600 | 4400 | 5000 |
| Nominal output voltage/range [V] |
208,220,230, 240/180~270 |
208,220,230, 240/180~270 |
208,220,230, 240/180~270 |
| AC grid frequency/range [Hz] |
50,60/±4.5 auto-selection |
50,60/±4.5 auto-selection |
50,60/±4.5 auto-selection |
| Maximum output current [A] | 16 | 21 | 23 |
| AC connection(with PE) | Single phase | Single phase | Single phase |
| Current distortion(THDi) [%] | <2.5 | <2.5 | <2.5 |
| Power factor [%] | >99.95 | >99.95 | >99.95 |
| Efficiency | |||
| Maximum conversion efficiency[%] | 97.5 | 97.6 | 97.8 |
| European efficiency[%] | 97.1 | 97.2 | 97.3 |
| MPPT efficiency[%] | 99.9 | 99.9 | 99.9 |
| Protection | |||
| DC reverse-polarity protection | yes | yes | yes |
| Short circuit protection | yes | yes | yes |
| Ground fault/residential current monitoring | yes | yes | yes |
| Grid monitoring | yes | yes | yes |
| DC/AC side varistors(thermally protected) | yes | yes | yes |
| General Parameters | |||
| Dimension(L/W/H)[mm] | 480*400*180 | ||
| Weight(kg) | 25 | ||
| Embedded DC Switch | Optional | ||
| Night Mode support | Optional | ||
| Night power consumption[W] | <0.2 | ||
| Isolation type | Transformerless | ||
| Protection degree | IP65 | ||
| Operation temperature[ºC] | -25 ~ 60 | ||
| Heat Dissipation | Convection | ||
| Acoustic noise level[dB] | <25 | ||
| Altitude[m] | <2000 without power derating | ||
| Storage temperature[ºC] | -30 ~ 80 | ||
| Real Time Clock module | yes | ||
| LCD Display | Graphic and digital segment | ||
| Communication Interface | Standard WiFi | ||
Standard 5 years warranty, 10 /15 years available.
Wuxi Thinkpower New Energy Tech. Co., Ltd.were founded in 2011, located in Wuxi,, is a professional hightech company specializing in R&D, production, sales and post-sales service of household PV Grid Tied Inverters.
Our small-sized grid connected inverters are in the Industry leading level with the conversion efficiency 97.8%.
Currently, Thinkpower Inverters are exported to over 20 countries around the world (Germany, Australia, Spain, Italy, etc).
Welcome to contact us.
