Home > Electrical & Electronics > Inverter > Power Inverter > 5000W(5kW) Thinkpower Dual MPPT DC to AC Solar Grid-tied Inverte

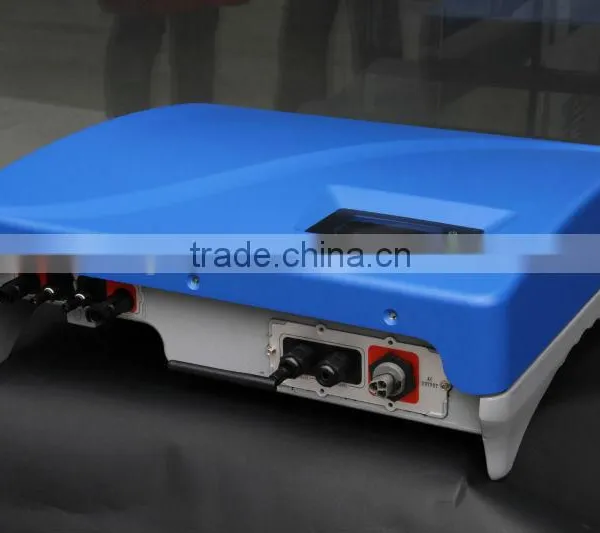

5000W(5kW) Thinkpower Dual MPPT DC to AC Solar Grid-tied Inverte
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Thinkpower
Model Number:
S5000TL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 KW Solar Grid Connected Inverter With Dual MPPT, Free WiFI, 99.9% High Efficiency, SAA,IEC,VDENegotiableMOQ: 1 Piece -
3.6 KW Solar Grid Inverter With Dual MPPT, Free WiFI, 99.9% High Efficiency,SAA,IEC,VDENegotiableMOQ: 1 Piece
-
4.4 KW Solar Grid Inverter With Dual MPPT, Free WiFI, 99.9% High Efficiency, SAA,IEC,VDENegotiableMOQ: 1 Piece
-
ThinkPower S4400TL Grid-tied Photovoltaic Inverter for Solar Project Together With Free Wifi MonitoringNegotiableMOQ: 1 Unit
-
China Leading Inverter Manufacturer High Quality 3.6kw pv Grid-tied InverterNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
Thinkpower
Model Number
S5000TL
Output Power
201 - 400KW
Output Type
Single
Size
480x440x180
Weight
20kG
Input Voltage
Max.550
Output Voltage
208,220,230,240V / 180 - 265V
Type
DC/AC Inverters
Output Frequency
50Hz/60Hz
Output Current
Max.23A

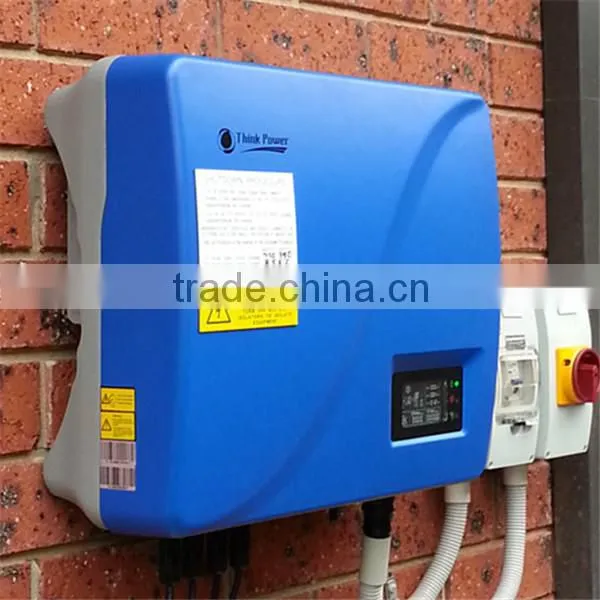

Thinkpower S series grid tied inverter(3.6kW, 4.4kW, 5kW) were designed for residential and small commercial PV installations. it has CE, TUV,SGS, VDE, AS4777 certifications.
1. Feature:
Dual MPPT
IP65 protection
Wide MPPT voltage range
High efficiency up to 97.3%
Build in WIFI monitoring as standard communication.
2. Technical parameters
| Model No | S3600TL | S4400TL | S5000TL |
| DC side/Input parameters | |||
| Max. DC power [W] | 3600 | 4400 | 5000 |
| Max. DC voltage [Vdc] | 550 | 550 | 550 |
| Min. System start/Shut down voltage [Vdc] | 100/150 | 100/150 | 100/150 |
| MPPT voltage range[Vdc] | 100~550 | 100~550 | 100~550 |
| Max. input current [A] | 13.5/13.5 | 13.5/13.5 | 15/15 |
| Number of MPP trackers | 2 | 2 | 2 |
| Strings per MPP tracker | 1 | 1 | 1 |
| AC side/output parameters | |||
| Nominal output power [W] | 3300 | 4000 | 4600 |
| Maximum output power [W] | 3600 | 4400 | 5000 |
| Nominal output voltage/range [V] | 208,220,230, 240/180~270 |
208,220,230, 240/180~270 |
208,220,230, 240/180~270 |
| AC grid frequency/range [Hz] | 50,60/±4.5 auto-selection |
50,60/±4.5 auto-selection |
50,60/±4.5 auto-selection |
| Maximum output current [A] | 16 | 21 | 23 |
| AC connection(with PE) | Single phase | Single phase | Single phase |
| Current distortion(THDi) [%] | <2.5 | <2.5 | <2.5 |
| Power factor [%] | 99.95 | 99.95 | 99.95 |
| Efficiency | |||
| Maximum conversion efficiency[%] | 97.5 | 97.6 | 97.8 |
| European efficiency[%] | 97.1 | 97.2 | 97.3 |
| MPPT efficiency[%] | 99.9 | 99.9 | 99.9 |
| Protection | |||
| DC reverse-polarity protection | yes | yes | yes |
| Short circuit protection | yes | yes | yes |
| Ground fault/residential current monitoring | yes | yes | yes |
| Grid monitoring | yes | yes | yes |
| DC/AC side varistors(thermally protected) | yes | yes | yes |
| General Parameters | |||
| Dimension(L/W/H)[mm] | 480*400*180 | ||
| Weight(kg) | 20.1 | ||
| Embedded DC Switch | Optional | ||
| Night Mode support | Optional | ||
| Night power consumption[W] | < 0.2 | ||
| Isolation type | Transformerless | ||
| Protection degree | IP65 | ||
| Operation temperature[ºC] | -25 ~ 60 | ||
| Heat Dissipation | Convection | ||
| Acoustic noise level[dB] | <25 | ||
| Altitude[m] | <2000 without power derating | ||
| Storage temperature[ºC] | -30 ~ 80 | ||
| Real Time Clock module | yes | ||
| LCD Display | Graphic and digital segment | ||
| Communication Interface | Standard WiF | ||
| Warranty: 5/10/15years yes/optional/optional/optional* More technical characteristics are avaliable on demand and customized. | |||
Product Description

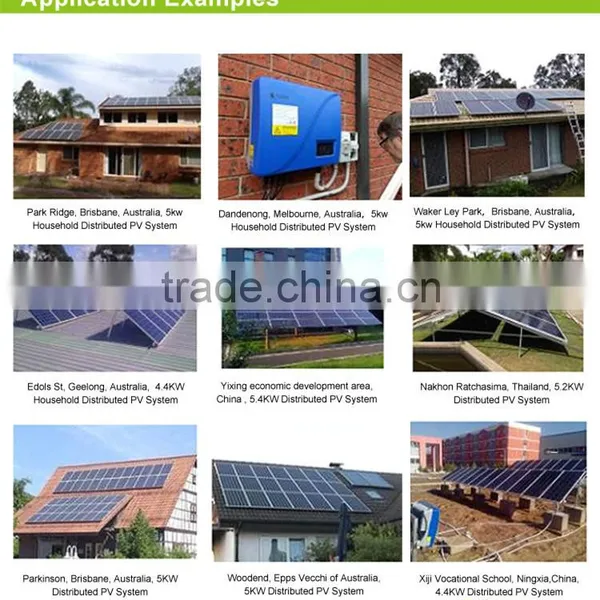

Reference projects
Packaging & Shipping
Company Information
Wuxi Thinkpower New Energy Technology Co.,Ltd.
We focus on technological innovation, take customer demand as guidance, and constantly enrich products. Our small-sized grid-connected inverters are in the industry leading level with the conversion efficiency 97.8%.
Currently, Thinkpower Inverters are exported to over 20 countries around the world
(Germany, Australia, Spain, Italy, etc.), what’s more, the product quality and customer service won universal praise from all partners and user.
if you have any require, please contact us:
Tel: +86 510 8519 2198
