Specifications
P10 outdoor full color 1R1G1B led panels (CE, RoHS, FCC ,ISO certificate)1.China shenzhen alibaba P10 outdoor high brightness led display panels screen specifications:
1. outdoor full color enscapulation DIP546
2.High brightness,high stability
3.wide viewing angle
4. energy-saving,durable
5.vivid led display ,competitve price and best quality
6.Certifications:CE,CCC,ROHS,FCC,IS022008
2.P 10 outdoor 1R1GB led video full color LED panels display screen details:
As a movable media, there are some things different with the fixed installation commercial LED screen:
1. Lock button
2. Hanging cabinets inner structure
3. Hanging beam
4. Bottom Bracket
5. Flight case
We can offer all kinds of rental use LED screen: indoor stage rental LED screen, outdoor events rental LED display screen.
For the rental use LED screen: flight case, lock button & hanging structure is always necessary since the screen needs to move from one site to another very frequently and only use several days for each event.
3. P10 Big stage led panelsdisplay and bus station Advertising LED bar display Screen Outdoor(CE, RoHS, FCC ,ISO certificate) display parameters:
Product No. |
ph10 full color outdoor led commercial advertising display screen |
Physical pixel pitch |
10mm |
Physical pixels per sqm |
10,000 |
Pixel constitution |
1R1G1B |
Cabinet size |
960mm * 9600mm |
Cabinet weight |
65kg |
Cabinet resolution |
96 * 96pixels |
Best viewing distance |
10-500 |
Max. power consumption |
1000W |
Ave.power consumption |
250W |
Brightness |
≥6500CD/m2 |
Driving method |
1/4 scan, current driving |
Best viewing angle |
Horizontal: ≥140°; Vertical: ≥50° |
Frame frequency |
≥60Hz/s |
Refresh rate |
adjustable from 10Hz to 3000Hz |
Display color |
281 trillions |
Input voltage |
AC 110 or AC220 V ±10% ,50 to 60Hz |
MTBF |
10,000 hours |
Life-span |
100,000 hours |
Ingress protection |
panels IP65 |
Working environment |
Temperature: -20°c-+50°c; Humidity: 10%-90%RH |

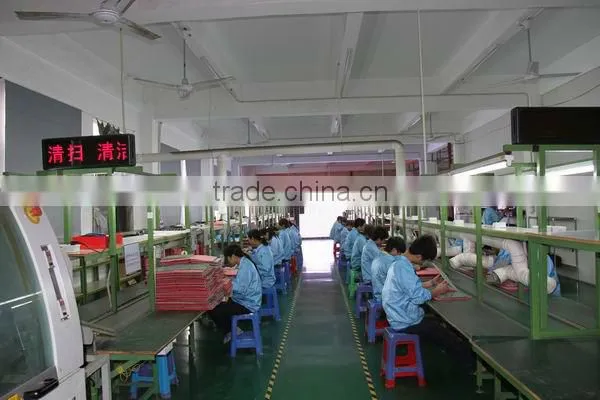

4.Shenzhen led creking Electronic oled panels display company cetifications details :
5.As a movable media, there are some things different with the fixed installation commercial LED screen:
1. Lock button
2. Hanging cabinets inner structure
3. Hanging beam
4. Bottom Bracket
5. Flight case
We can offer all kinds of rental use LED panels display screen: indoor stage rental LED bar display screen, outdoor events rental LED panels display screen.
For the rental use LED screen: flight case, lock button & hanging structure is always necessary since the screen needs to move from one site to another very frequently and only use several days for each event.
More details please contact us
Welcome to shenzhen Creking.
