ADS421 Digital Load Cell
|
Model: ADS421 Digital Load Cell Catalog: Analog /digital weighing junction box Channel : 1 Channel Work voltage: 6-12vdc Signal output: RS485 Application: digital pressure, digital temperature and digital weighing measurement keyword: digital load cell, digital pressure sensor |
|
|
Suitable for the application without strict demand for temperature performance or cost sensitive customers. For the manufacture of digital load cells, weighing indicators, process control weighing instruments, tensile testing machine, and other weighing or force measuring occasions. Features and Specifications: Measuring range: ±15mV A/D Resolution:1000000 Temperature coefficient:≤10ppm/℃(typical) Hardware Interface: RS-485interface, half-duplex. Software Protocol: Free port protocol Dimensions (mm): Rectangle: 55×49×18 / Round: D32×8 A/D conversion, digital calibration, tare, zero setting/tracking, switch-on zero setting,anti-dithering; All the parameters can be set through serial interface; Module addresses are available from 0 to 31. Modules can work through bus communication; Baud rate, parity bit and data output format can be set. 1200~38400bps; Digital filtering: standard filtering or LPF; Sampling speed: 3.125~400Hz; Storage of the parameters with protection against power failure; Operating Voltage: 9V DC(6.5V~12V); Operating Current:≤40mA; Complete protection: wrong wiring protection, over voltage protection, transient voltage suppression; Operating temperature range: -40℃~+70℃; Storage temperature range: -60℃~+90℃ |
|

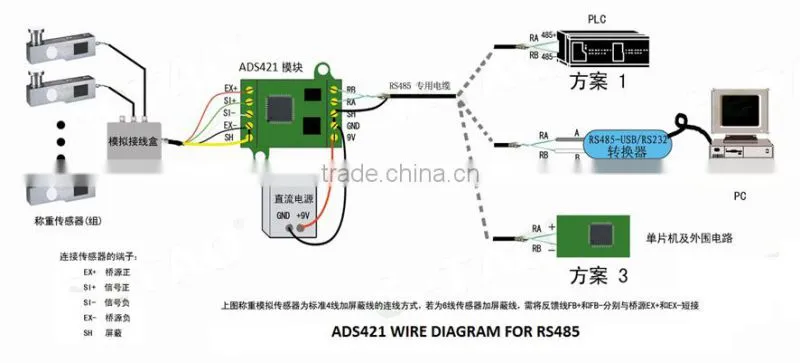

WIRE |
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-7 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 1 year free repair for quality warranty
Testing
FAQ
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
