Melt pressure transducer with flexible tube , explosion proof
Product Description

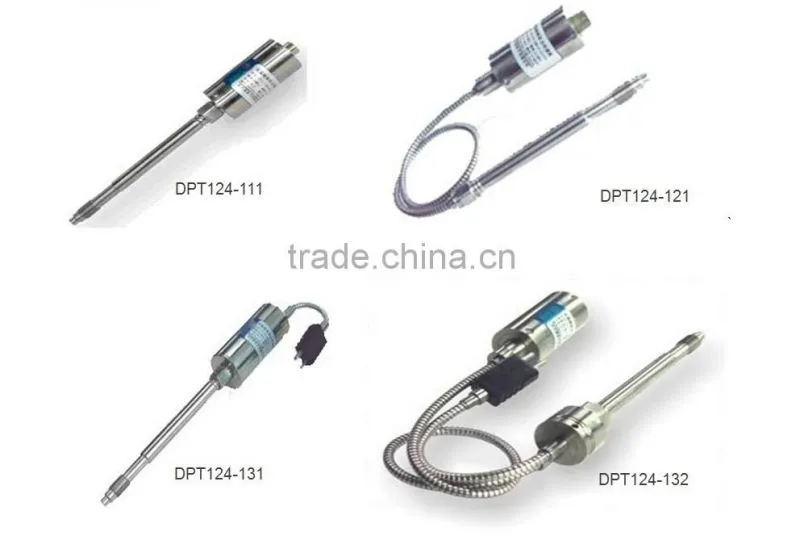

DPT124 Series transmitting instruments for high-temperature fusion pressure transducer/transmitter
Application :
Measuring and controlling pressure of high-temperature articles in the fields of chemical fibers, plastics and rubber or high-temperature resistant fluid.
Features:
*By assimilating advanced technologies of similar international products and using imported raw materials and key elements, the instrument is characteristic of stable operation, reliable performance, high accuracy, strong output signal, excellent dynamic performance and slight high-temperature resistant zero drift. If DPT124 series transmitters are jointly used with DPY series instruments manufactured by us, then all requirements of customers can be fully satisfied. It can be also be used with import instruments without any adjustment or modification. Connecting screws and outgoing connectors are all universal. Transmitting instrument can also be replaced with import ones.
| Model |
DPT124-125 |
||||||||||||||||||
Capability range: |
0~5MPA~200MPA(optional ) |
||||||||||||||||||
Signal output: |
Pressure transducer: 0~5V; 0~10V; 4-20mA; Pressure Transducer: 1.5mV/V; 2mV/V; 3.33mV/V |
||||||||||||||||||
Precision: |
±0.5%FSO |
||||||||||||||||||
Power supply: |
Pressure transducer: 24VDC (12~36)VDC; Pressure Transducer: 10VDC |
||||||||||||||||||
Repetition: |
±0.2%FSO |
||||||||||||||||||
Electronic frame: |
FST bridge |
||||||||||||||||||
Bridge resistance: |
350 ohms±10% |
||||||||||||||||||
Overload pressure: |
2*FSO |
||||||||||||||||||
Self-adjust: |
80%±1% |
||||||||||||||||||
Insulated resistance: |
1000Megohms @50Vdc |
||||||||||||||||||
Film max temperature: |
450ºC |
||||||||||||||||||
Electr-connector: |
Wire |
||||||||||||||||||
Port connector: |
1/2″-20UNF, M14*1.5Or Design by customer |
||||||||||||||||||
Wire Frame | |||||||||||||||||||
|
|
||||||||||||||||||

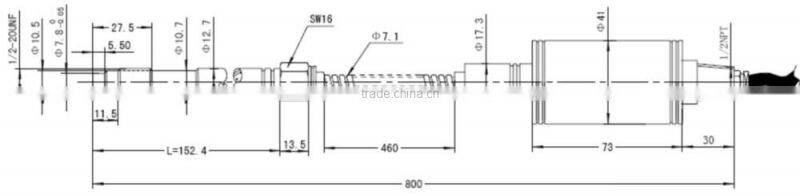

Dimension | |||||||||||||||||||
| |||||||||||||||||||
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
How to place an order
In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please complete the following information and send to our sales when you are going to make an inquiry, thanks!
1. Pressure type (gauge pressure, Absolute pressure, negative pressure):
2. Pressure Range (-1bar to 0-6bar-16bar-160bar-8000bar):
3. Measure medium (air, oil, water, melt):
4. Medium temperature (-250~-20~0~40~100~150~350~600~800~1200c):
5. Work voltage (3vdc, 5vdc, 10vdc, 24vdc):
6. Analog Signal output (mv/v, 0-5vdc, 0.5-4.5vdc, 0-10vdc or 4-20mA):
7. Thread size (M type G type, NPT, UNF):
8. Elect. Connector: (AMP, Hirschman, Sealed thread, Packard, other):
9. Wire length (0-100m):
10. Digital signal output (RS232, RS485, HART, BUS CAN):
11. Material (steel, aluminum):
12. Location display (point dial, LED, LCD):
13. Explosion proof:
14. Anti-corrosion:
15. Purchase quantity:
