1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V Piezoelectric Pressure Transducer

1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V Piezoelectric Pressure Transducer thumbnail-1
1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V Piezoelectric Pressure Transducer thumbnail-2
1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V Piezoelectric Pressure Transducer thumbnail-3
1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V Piezoelectric Pressure Transducer thumbnail-4
1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V Piezoelectric Pressure Transducer photo-1
1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V Piezoelectric Pressure Transducer photo-2
1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V Piezoelectric Pressure Transducer photo-3
1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V Piezoelectric Pressure Transducer photo-4
US$ 30 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
DETAIL, Detail-Pressure transducer
Model Number:
Pressure Tansducer
Contact Supplier Request Quote Chat Now
Hunan Detail Sensing Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name DETAIL, Detail-Pressure transducer
Model Number Pressure Tansducer
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor



Product Description

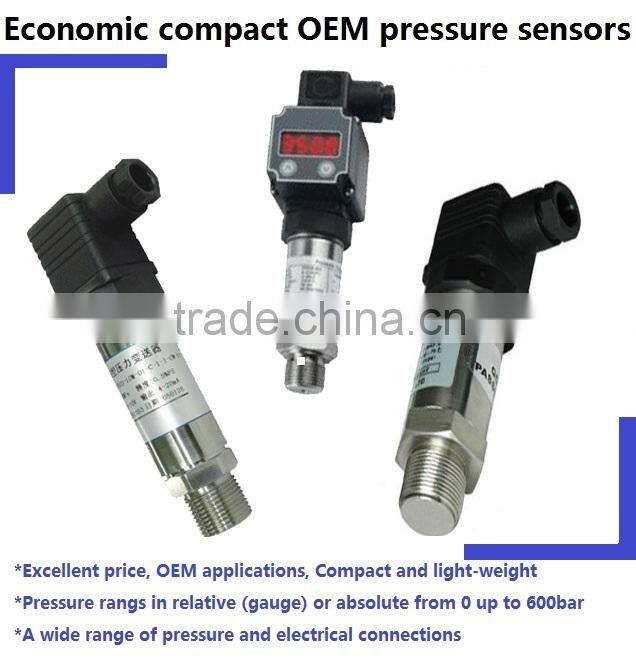

1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V piezoelectric pressure transducer

 1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V piezoelectric pressure transducer



Characters:



 Accuracy: ≤±0.5%F.S.



 Wide working temperature scope



 Automation temperature compensation.



 Excellent overload, Shock and erosion.



 Anticorrosive diaphragm and port.



 OEM economic selection



 Mini dimension types



 2 times range standard overload.



 3 times range burst pressure



 CE approved







Applications:



 Engine Fuel Pressure measurement



 Refrigeration and Air Compressor



 Hydraulic pressure controller



 Petrochemical industry



 Air-conditioner production line testing



 Pressure meter



 Laboratory equipment



 Water pressure measurement



 Saving water to irrigate



 Liquid and Gas pressure measurement





1-5V,0-10V,1-6V,1-10V,0.5-4.5V and 0-5V piezoelectric pressure transducer





Profiles:

0-5V Pressure transducer ,Voltage output transducers (0-5V ,1-5V,1-6V,1-10V,0.5-4.5V....)include integral signal conditioning which provide a much higher output than a millivolt transducer.These transducers are not as susceptible to electrical noise as millivolt transducers and can therefore be used in much more industrial environments.



Specifications:

Model Parameter:



Pressure Range:

-1-0-1 Bar.....1000 Bar Optional can be customized

Pressure Type:

Gauge pressure; Absolute pressure optional

Overload:

200% F.S.

Burst Pressure

300% F.S.

Accuracy:

(Linearity Hysteresis

Repeatability)

≤ ±0.25%F.S

≤ ±0.5%F.S

optional

Stability:

Standard: 0.2%F.S±0.05%

Working Temp:

-40°C~125°C can be customized

Storage Temp:

-40°C~125°C

Temperature Compensation:

-20°C~75°C

Medium compatible:

Compatible with 316L Stainless Steel

Electronic Wire:

2 Wire

3 Wire can be customized

Output:

4~20mA

0~5V

0~10 V

0.5~4.5 V can be customized

Power Supply:

12~36 V DC

12~36 V DC

15~36Vdc

5 V DC can be customized

Insulate resistance:

>10M Ω  @50V

Electronic connection:

Terminal Box (DIN Hirschman Connector) can be customized

Pressure

connect port:

1/4’’NPT male 1/4’’NPT Female G1/2’’ male G1/4’’

7/16’’-20 UNF male optional. ( can be customized )

Response time:

≤20ms

Certificate approving:

Exia II CT5 and CE Certificate.

EMC Standard:

electromagnetic radiation:EN50081-1/-2

electromagnetic susceptibility:EN50082-2

Water Proof:

IP65

Weight:

Net weight is about 0.20KG, Full Packing weight is about 0.35KG (Included 3 Meters Cable)

Remarks:

Special applications request can be customized







Ordering guide:

 In order to recommend you the most suitable sensor , please show us  following necessary info according to  your practical situation.

 1.What is your medium ? Liquid or Gas, or other.

 2.Working temperature ? -40°C~100°C or other

 3.Pressure range ?  0~600Bar or other

 4.Output signal? 4-20mA, 0-5V, 0-10V, 0.5-4.5V or other

 5.Electronic connection ? DIN, 5PIN, 4PIN and direct dow leads available  (by customized)

 6.Pressure port: G1/4, G1/2, 1/4NPT, 1/2NPT (by customized)

Packaging & Shipping



Price, Package and Service



1. Price : EXW, FOB, C&F

2. Payment: T/T in advance, PayPal, Western Union.

3. Packing : standard export packing, including instructions and certificate

4. Leading time : 3-20 working days according to order quantity

5. OEM available

6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder

7. 7 days free replace & 1 year free repair for quality warranty
