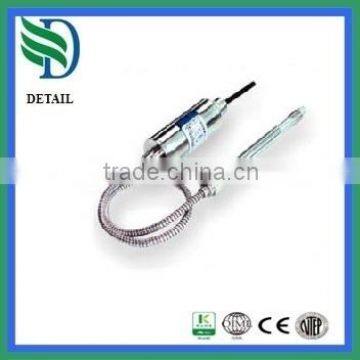

High temperature strain gage 3.33mV melt pressure sensor
- 2000 Piece / Pieces per Month
- shenzhen
- T/T
Product Details
Place of Origin: | Hunan, China | Brand Name: | DETAIL | Model Number: | DPT124 series |
Usage: | Pressure Sensor | Output: | Analog Sensor |
Product Description
High temperature strain gage 3.33mV melt pressure sensor
Profiles:
DPT124 Series melt pressure Transducer’s instruments for high-temperature fusion pressure Transducer is applicable for
measuring and controlling pressure of high-temperature articles in the fields of chemical fibers, plastics and rubber or high-
temperature resistant fluid. By assimilating advanced technologies of similar international products and using imported raw
materials and key elements, the instrument is characteristic of stable operation, reliable performance, high accuracy, strong
output signal, excellent dynamic performance and slight high-temperature resistant zero drift. If HPT124 series Transducers
are jointly used with PY series instruments manufactured by us, then all requirements of customers can be fully satisfied.
It can be also be used with import instruments without any adjustment or modification. Connecting screws and outgoing
connectors are all universal. Transducer’s instrument can also be replaced with import ones.
Characters:
| Applications:
|
Products Show:
Model: Parameter: | DPT124 Series Melt Pressure Transducers |
Model No.: | DPT124-111; HPT124-121; HPT124-131; HPT124-132 |
Pressure Type: | Gauge Pressure |
Pressure Range: | 0-10 Bar……1500 Bar / 0-150Psi……20000Psi G Optional. |
Power Supply: | 24V DC |
Electronic Wire: | 5Cores or 6 Cores/Pins/Wires |
Output: | 4-20 mA; 0-10V; 0-5V optional. |
Overload: | 1.2 times Full Range. |
Burst Pressure: | 1.5 times Full Range. |
Accuracy: (Linearity; Hysteresis; Repeatability) | ≤ ±0.5%F.S; ≤ ±0.25%F.S; optional |
Stability: | 0.2%F.S |
Working Temp: | 0℃~400℃ |
Storage Temp: | -40℃~125℃ |
Medium compatible: | Various media compatible with the 316L stainless steel |
Repeatability: | ±0.2%F.S.O |
Hysteresis: | ±0.2%F.S.O |
Permanent Stability (1 Year): | 0.3% F.S.O |
Bridge impedance: | 350 ohms±10% |
Insulation Resistance: | ≥3000 MΩ |
Electronic connection: | Fixed cable Explore Proof and water proof IP67; 5 Pin Plug; 6 Pin Plug IP65; Terminal Box (Hirschman) IP65. |
Process connect port: | 1/2’’-20UNF Male; M14*1.5; M20*1.5… (by customized) |
Thermocouple type | J,K,E, PT100 Optional |
Response time: | ≤10 ms |
Certificate approve: | CE Certificate. |
Explore Proof: | Exd II CT5 |
EMC Standard: | electromagnetic radiation:EN50081-1/-2 electromagnetic susceptibility:EN50082-2 |
Remarks: | Special applications request by customized |
1. Customized Product
Detail Sensing provides OEM Pressure Sensors and Custom-Design services.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to
customer's application.
2. Quality Guarantee
We guarantee product quality for 12 months starting from the date of delivery. For any unproper situation, please feel free to let us know.
3. Shipment & packing
Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required. By plane or by ship is available, too. Please discuss details with our sales.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
4. Contact us
We have an active and experienced sales team to serve you on technical questions and business issues.
Just leave us message or click the Online Service for questions and enquiries.
Within 24 working hours, we will come to you at the first time!
How to place an order
In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please complete the following information and send to our sales when you are going to make an inquiry, thanks!
1. Pressure type (gauge pressure, Absolute pressure, negative pressure):
2. Pressure Range (-1bar to 0-6bar-16bar-160bar-8000bar):
3. Measure medium (air, oil, water, melt):
4. Medium temperature (-250~-20~0~40~100~150~350~600~800~1200c):
5. Work voltage (3vdc, 5vdc, 10vdc, 24vdc):
6. Analog Signal output (mv/v, 0-5vdc, 0.5-4.5vdc, 0-10vdc or 4-20mA):
7. Thread size (M type G type, NPT, UNF):
8. Elect. Connector: (AMP, Hirschman, Sealed thread, Packard, other):
9. Wire length (0-100m):
10. Digital signal output (RS232, RS485, HART, BUS CAN):
11. Material (steel, aluminum):
12. Location display (point dial, LED, LCD):
13. Explosion proof:
14. Anti-corrosion:
15. Purchase quantity:
