Best selling fuel level sensor for automobiles

Name: Best selling fuel level sensor for automobiles
Brand: DETAIL
Price: USD $50 - 300 / Piece

FOB Price

USD $50 - $300 / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port shenzhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Hunan, China	Brand Name:	DETAIL	Model Number:	DPT424
Usage:	Level Sensor	Output:	Analog Sensor

Product Description

Best selling fuel level sensor for automobiles

Profiles:

DPT424 capacitance liquid-level sensor is the customized sensor meter for precise measuring of the liquid level of automobile

oil tanks, sealed tankers, trucks fuel tank, locomotives tanks and oil depots, etc.

The whole sensor is free of any mobile or elastic part and is featured with the good impact resistance, convenient installation,

high reliability, high precision, and stable performance. It can not only be installed on various occasions requiring precise level

measuring of gasoline, diesel, water and hydraulic oil, etc, but also be Application for measuring of various non-conductive

liquids.

In addition, it can be used for conductive medium measuring on occasions with quite poor conditions, quite serious

electromagnetic interference, or dramatic stirring. Sensor support client’s local calibration zero and span, so that sensor can

use very easy for different mediums and with a very high precision reading data.

Characters:

Accuracy: ≤±0.5%F.S.
High stability and reliability
Precise linear and temperature compensation
Support local ZERO and SPAN calibration
Adjustable damp output time
Strong interference resistance
Strong shock resistance
Surge, over-current and polarity resistant design
Applicable for various liquids

Applications:

Diesel Tank Level Measurement
Liquid level measurement
Gasoline level measurement
Underground fuel tank level measurement
Industry Process Level Measurement
Auto, Truck fuel tank level measurement
Rooter, railway engine, tanker oil and fuel
level measurement
Sealed tank liquid level measurement
And so on

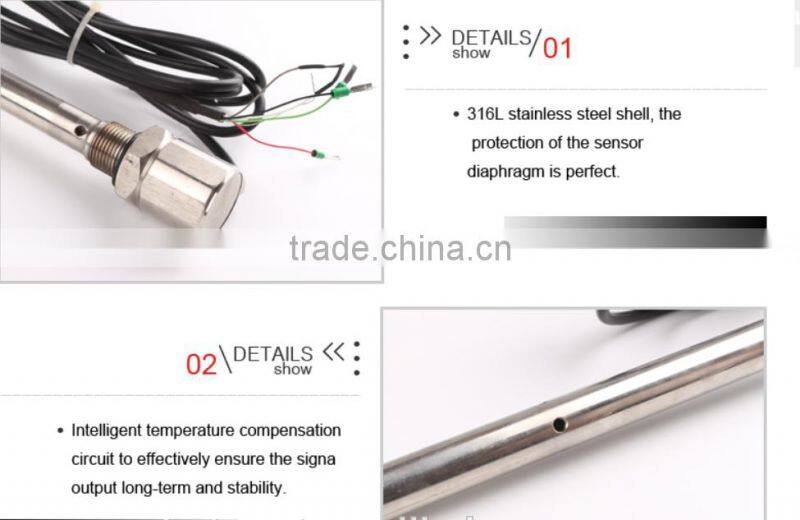

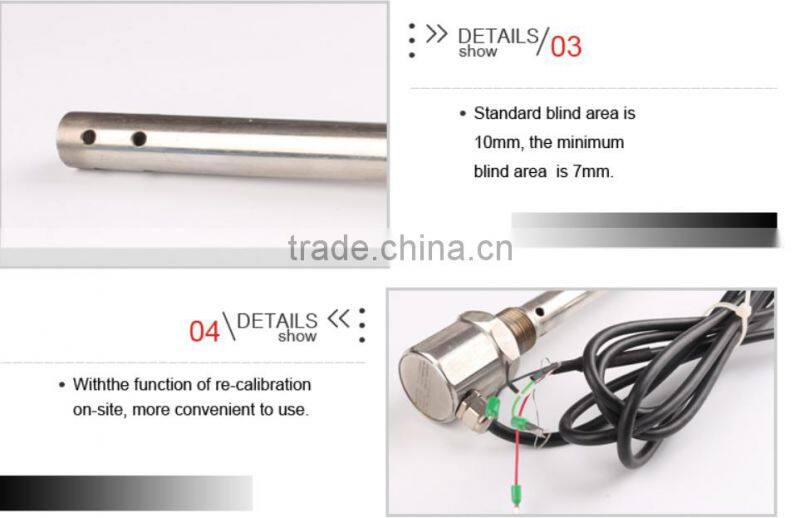

Products Show:

Specification

Model: Parameter:	DPT424 Series Capacitance Level Sensors
Pressure Range:	0-300 mm...1800mm optional
Probe Diameter:	Φ16 mm
Overload:	Standard atmosphere pressure or -1 Bar~40 Bar avaliable
Accuracy: (Linearity; Hysteresis; Repeatability)	≤ ±1.0%F.S Typical ≤ ±0.5%F.S; Optional
Resolution:	0.01 mm
Blind Zone:	15 mm
Stability:	Standard: 0.01%F.S/3 years, Max: 0.02%F.S/3years
Working Temp:	-30~85℃ standard type,-40℃~125℃ are customized.
Storage Temp:	-50℃~125℃
Medium compatible:	Various media compatible with the 304 stainless steel
Electronic Wire:	2 Wires	3 Wires	4-5 Wires
Output:	4-20 mA	0-5V	RS485
Power Supply:	11~33 V dc	12VDC or 11~33 V dc	11~33 V dc
Zero Temperature Drift	0.005%/20℃
Temperature output:	Suitable for CAN communication
Electronic connection:	Fixed cable by stainless steel cap and Explore Proof and water proof IP67
Process connect port:	G1/2’’ male, M20*1.5 male, Flanges 2.5’’… (by customized)
Response time:	First time starting time≈2s; working status≤200 ms
Medium compatible:	Diesel, gasoline, water and others fuel or liquid is customized
Certificate approve:	CE Certificate and Exia II CT6 and Exd II CT5
EMC Standard:	electromagnetic radiation:EN50081-1/-2 electromagnetic susceptibility:EN50082-2
Remarks:	Special applications request by customized

Packaging & Shipping

Our Services

1. Customized Product

Detail Sensing provides OEM Pressure Sensors and Custom-Design services.

With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.

2. Quality Guarantee

We guarantee product quality for 12 months starting from the date of delivery. For any unproper situation, please feel free to let us know.

3. Shipment & packing

Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required. By plane or by ship is available, too. Please discuss details with our sales.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.

4. Contact us

We have an active and experienced sales team to serve you on technical questions and business issues.

Just leave us message or click the Online Service for questions and enquiries.

Within 24 working hours, we will come to you at the first time!
