China Supplier Pressure Sensor
- 2000 Piece / Pieces per Month
- shenzhen
- T/T
Product Details
Place of Origin: | Hunan, China | Brand Name: | DETAIL | Model Number: | DPT201 |
Product Description
China Supplier Pressure Sensor
Product Description

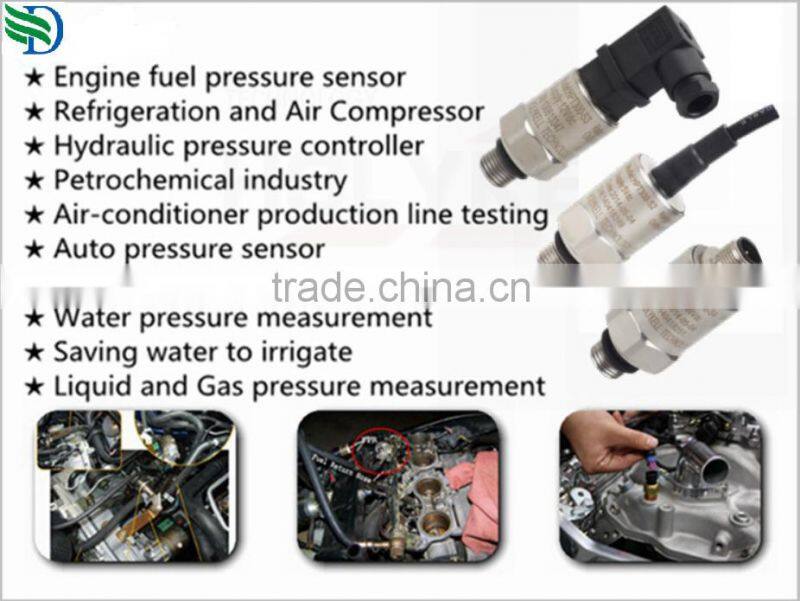

This DPT201 pressure sensor applied in the engine fuel pressure, hydraulic pressure and gas pressure industries, which is adopt the Flush Ceramic piezoresistive technology and the advanced circuit design to avoid influences on the product caused by the temperature, humidity, mechanical fatigue and medium, thus to improve its permanent stability in the industrial environment. Its pressure chamber is made of 316L stainless steel welted and with O-rings, free of leakage troubles. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are installed inside the transmitter and the transmitter is featured with the strong interference resistance, wide temperature compensation scope and flexible & various output forms, etc. The series products provide several optional pressure connectors and electric output forms for customers.
Model: Parameter: | China Supplier Pressure Sensor DPT201 | ||||
Pressure Range: | -1-0-1 Bar.....600 Bar Optional | ||||
Pressure Type: | Gauge pressure; Negative pressure; Absolute pressure optional | ||||
Overload: | 150% F.S. | ||||
Burst Pressure | 200% F.S. | ||||
Accuracy: (Linearity Hysteresis Repeatability) | ≤ ±1.0%F.S ≤ ±0.5%F.S ≤ ±0.25%F.S (Customized) Optional. | ||||
Stability: | Standard: 0.2%F.S±0.05% | ||||
Medium Temp: | -30℃~85℃ | ||||
Ambient Temp: | -20℃~80℃ | ||||
Storage Temp: | -40℃~85℃ | ||||
Temperature Compensation: | -10℃~70℃ | ||||
Zero temp drift: | ≤0.02%F.S/℃/year | ||||
Housing material: | 304 Stainless Steel | ||||
Diaphragm material: | Piezoresistive Flush Ceramic | ||||
Process material: | 304/316 Stainless Steel optional | ||||
Medium compatible: | Compatible with 304/316 Stainless Steel | ||||
Electronic Wire: | 2 Wires | 3 Wires | |||
Output: | 4~20mA | 0~5V | 0~10 V | 0.5~4.5 V | By Customized |
Power Supply: | 12~36 V DC | 12~36 V DC | 15~36Vdc | 5 V DC | By Customized |
Insulate resistance: | >100M Ω @50V | ||||
Electronic connection: | Terminal Box (DIN43650 Hirschman Connector, IP65) Directly sealed cable IP67; M12 4 Pins connector IP65; Small Hirschman Connector; connection are optional. | ||||
Pressure connect port: | 1/8’’NPT male, 1/4’’NPT male 1/4’’NPT Female, G1/2’’ male, G1/4’’male/female, 7/16’’-20 UNF male/female are optional. (by Customized) | ||||
Response time: | ≤10ms | ||||
Certificate approving: | CE Certificate. | ||||
EMC Standard: | electromagnetic radiation:EN50081-1/-2 electromagnetic susceptibility:EN50082-2 | ||||
Water Proof: | IP65 to IP67 | ||||
Weight: | Net weight is about 0.10KG, Full Packing weight is about 0.5KG (Included 3 Meters Cable) | ||||
Remarks: | Special applications request by Customized |
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
1. Customized Product
Detail Sensing provides OEM Pressure Sensors and Custom-Design services.

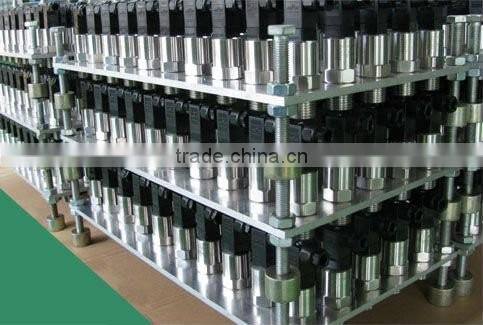

With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.
2. Quality Guarantee
We guarantee product quality for 12 months starting from the date of delivery. For any unproper situation, please feel free to let us know.
3. Shipment & packing
Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required. By plane or by ship is available, too. Please discuss details with our sales.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
4. Contact us
We have an active and experienced sales team to serve you on technical questions and business issues.
Just leave us message or click the Online Service for questions and enquiries.
Within 24 working hours, we will come to you at the first time!
