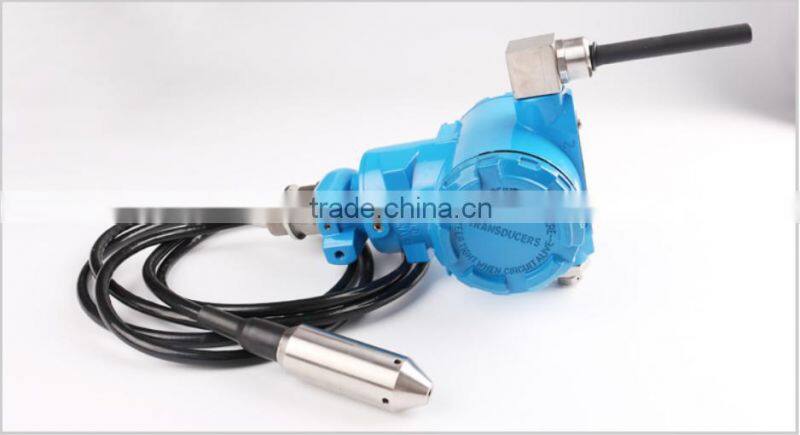

Zigbee wireless pressure transmitter for water tank
Profiles:

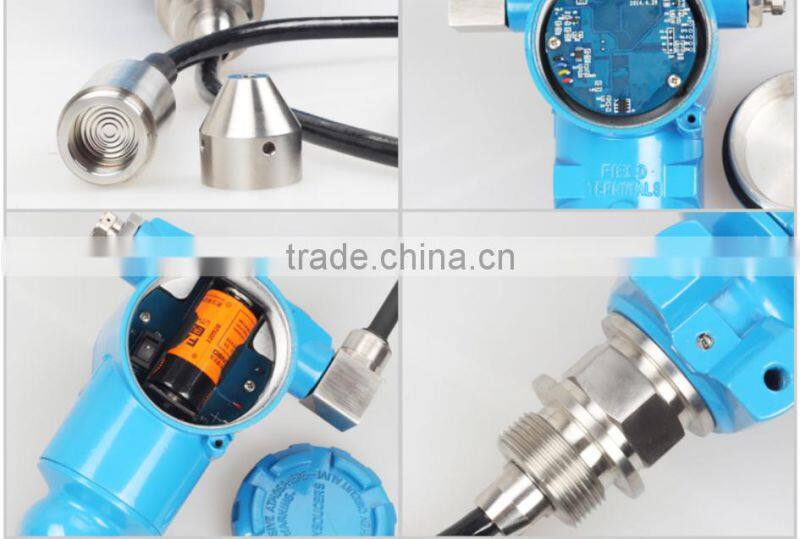

DPT421 is full sealed submersible level sensor. It is made by building in high stable and reliable piezo-resistive silicon pressure sensor and high accurate circuit board into the stainless steel housing. Integrated construction and standard signal provide the user easy and convenient application in the local working place. The special cable connects with housing, can be immerged into the media for a long time.
DPT421 level sensor has smart structure, high accuracy and good stability; it can be used for water or liquid measure and control of medicine, metallurgy, electricity, mine, city water supply and drainage and hydrology, etc.
DPT421 level transmitters is based on Zigbee wireless protocol and max transfer distance up to 400 meters, if add a wireless signal router, distance up to 800 meters.
Characters:
| Applications:
|
Products Show:
Model: Parameter: | DPT421 universal remote transmitter |
Pressure Range: | -1 Bar-0-0.1 Bar…..50 Bar / 0-1M……..500M H2O Optional |
Overload: | 150% F.S. |
Burst Pressure | 300% F.S. |
Accuracy: (Linearity; Hysteresis; Repeatability) | ≤ ±0.5%F.S (standard) ≤ ±0.25%F.S (customized) ≤ ±0.1%F.S (customized) Including non-lin., rep. and hys. Optional |
Long Stability: | Standard: 0.1%F.S±0.05% |
Medium Temp Span: | -20℃~70℃ |
Ambient Temp Span: | -10~60℃ |
Storage Temp: | -30℃~80℃ |
Temperature Compensation: | -10℃~60℃ |
Medium compatible: | Compatible with 316 Stainless Steel |
Output: | Wireless Zigbee Protocol |
Power Supply: | 3.6V Li-Battery or 10…36VDC for outside power |
Zero Temp. Drift: | 0.03%FS/℃(≤100kPa); 0.01%FS/℃(>100kPa) |
FS Temp. Drift: | 0.03%FS/℃(≤100kPa); 0.01%FS/℃(>100kPa) |
Electronic connection: | Sensor water proof IP68; Electronic Indicator IP65. |
Response time: | ≤10ms |
Pressure Type: | Gauge pressure; Absolute pressure optional. |
Certificate approving: | ExdⅡCT6 and CE Certificate. |
EMC Standard: | electromagnetic radiation:EN50081-1/-2 electromagnetic susceptibility:EN50082-2 |
Weight: | Net weight is about 2.2KG, Full Packing weight is about 3.0KG (Not Include Cable) |
Remarks: | Special applications request by Customized |
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
1. Customized Product
Detail Sensing provides OEM Pressure Sensors and Custom-Design services.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.
2. Quality Guarantee
We guarantee product quality for 12 months starting from the date of delivery. For any unproper situation, please feel free to let us know.
3. Shipment & packing
Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required. By plane or by ship is available, too. Please discuss details with our sales.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
4. Contact us
We have an active and experienced sales team to serve you on technical questions and business issues.
Just leave us message or click the Online Service for questions and enquiries.
Within 24 working hours, we will come to you at the first time!
