High Temperature Melt Pressure Sensors, Transmitters

Name: High Temperature Melt Pressure Sensors, Transmitters
Brand: DETAIL
SKU: 106808701
Availability: InStock

US$ 100 - 200 MOQ: 1 Piece

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

DETAIL

Model Number:

DPT124

Hunan Detail Sensing Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name DETAIL

Model Number DPT124

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

Product Description

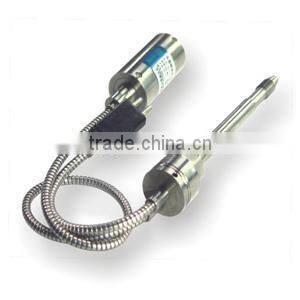

High temperature melt pressure sensors, transmitters

Applications:Compression molding machine, Plastic extruder machine, Plastic injection molding.

DPT124-131 (Melt pressure and temperature sensor-dual measurement)
Pic
Apply to melt pressure measuring and controlling of equipment in rubber, plastic and chemical industry.
characteristic
Precision more than 0.5%FS
stainless steel housing
Self-adjust 80%
High stability Repetition
Capability range:	0~5MPA~200MPA(Optional )
Signal output:	Pressure transmitter: 0~5V; 0~10V; 4-20mA;
	Pressure sensor: 1.5mV/V; 2mV/V; 3.33mV/V
Precision:	±0.5%FSO
Power supply:	Pressure sensor: 10/12/24VDC (12~36)VDC;
Repetition:	±0.2%FSO
Electronic frame:	FST bridge
Bridge resistance:	350 ohms±10%
Thermocouple type	J,K,E, DPT100
Overload pressure:	2*FSO
Self-adjust:	80%±1%
Insulated resistance:	1000Megohms @50Vdc
Film max temperature:	350ºC
Electr-connector:	6,8Core pluger,Or order by customer
Port connector:	1/2″-20UNF, M14*1.5Or Design by customer

DPT124-132 (Melt pressure and temperature sensor -dual measurement)
Pic
Apply to melt pressure measuring and controlling of equipment in rubber, plastic and chemical industry.
characteristic
Precision more than 0.5%FS
stainless steel housing
Self-adjust 80%
High stability Repetition
Capability range:	0~5MPA~200MPA(Optional )
Signal output:	Pressure transmitter: 0~5V; 0~10V; 4-20mA;
	Pressure sensor: 1.5mV/V; 2mV/V; 3.33mV/V
Precision:	±0.5%FSO
Power supply:	Pressure sensor: 10/12/24VDC (12~36)VDC;
Repetition:	±0.2%FSO
Electronic frame:	FST bridge
Bridge resistance:	350 ohms±10%
Thermocouple type	J,K,E, DPT100
Overload pressure:	2*FSO
Self-adjust:	80%±1%
Insulated resistance:	1000Megohms @50Vdc
Film max temperature:	350ºC
Electr-connector:	6,8Core pluger,Or order by customer
Port connector:	1/2″-20UNF, M14*1.5Or Design by customer

DPT124-221 (melt pressure and temperature gauge - dual measurement)
Pic
Designed with BD component and especial Electronic frame, the meter can be circumvolved by 270°for view, easy to install, adjust at zero point. Apply to pressure measuring and controlling in oil, chemist, pharmacy and food.
characteristic
Film insulate Electronic frame
Pressure value monitor, without power supply.
Dial plate can be installed with differ axle.
With signal amplifier Signal output
Capability range:	0~15MPA~16MPAr(Optional ) Standard:0~MPA; 0~70MPA
Precision:	±1.5%FS
Zero point adjust:	±6%FS
Overload pressure:	1.5*FS
Film temperature:	750℉(400ºC)
Thermocouple type:	PT100; K; E; J
Housing :	Stainless steel and Safety glass
Port connector:	1/2″-20UNF, M18*1.5( Especial )
Connector	6 Core Plug or Hirschman connector
