Home > Products > pressure sensor > Ultra High Temperature Pressure Sensor, 0-1600centigrade, 0-5V Pressure Transmitter
Ultra High Temperature Pressure Sensor, 0-1600centigrade, 0-5V Pressure Transmitter
- 1000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- New 913A0124H01 York FRICK low-pressure pressure sensor, pressure range 0-200psi
- New 913A0124H02 York FRICK high-pressure pressure sensor, pressure range 0-500psi
- HBM S Type S9M Force Load Cell
- HBM CFT+ Force Sensor
- HBM C15 Force Transducer With 4MV/V Signal Output
- HBM CFT Series Piezoelectric Force Transducer
Product Details
Place of Origin: | Hunan, China | Brand Name: | DETAIL | Model Number: | DPT202HT |
Product Description
Ultra High Temperature Pressure Sensor, 0-1600centigrade, 0-5V Pressure Transmitter
Model:DPT202HT Category:common pressure sensor Range:0-2000bar temperature:0~200c-1200c-1600c signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485 Application:oil pressure measure, air pressure measure, ualt high temperature pressure measure Characteristic:ultra high temperature pressure sensor, 1000c pressure sensor | |

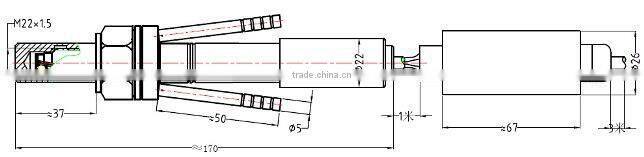

reference picture
Diameter:26mm | |
Technology parameter: | |
capability range | 0-10Bar~2000Bar(Optional) |
pressure type | Gauge pressure, Absolute pressure(vacuum pressure) |
signal output | 1.5mv or 2.0mv/v,3.3mv, 0-5vdc, 0-10vdc, 4-20mA |
Precision(%FS) | 0.5%FS |
sluggish repeat (nor-linearity)(%FS) | ≤0.1~≤0.2 |
excursion at zero point(%FS/4h) | ≤0.1~≤0.2 |
temperature excursion(zero & delicacy)(%FS/℃) | ≤0.01~≤0.02 |
long term stability(%FS/year) | ≤0.1~≤0.3 |
execute voltage (V) | 6-12vdc (12VDC) |
temperature compensate (℃) | 0~150 |
environment temperature (℃) | -20~+85 |
Medium temperature(℃) | 0~200c-1200c-1600c |
Overload (%) | 150 |
load resistance (Ω) | R=(U-12.5)/0.02-RD U=POWER SUPPLY,RD=Wire resistance |
response time(ms) | ≤1 |
Measure medium | Oil, gas, water and so on |
House | 1Cr18Ni9Ti or 316SSL |
Connect thread | M22×1.5, or by customer. |
explosion proof grade | NA |
water proof grade | IP67 |
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
1. Customized Product
Detail Sensing provides OEM Pressure Sensors and Custom-Design services.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to
customer's application.
2. Quality Guarantee
We guarantee product quality for 12 months starting from the date of delivery. For any unproper situation, please feel free to let us know.
3. Shipment & packing
Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required. By plane or by ship is available, too. Please discuss details with our sales.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
4. Contact us
We have an active and experienced sales team to serve you on technical questions and business issues.
Just leave us message or click the Online Service for questions and enquiries.
Within 24 working hours, we will come to you at the first time!
How to place an order
In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please complete the following information and send to our sales when you are going to make an inquiry, thanks!
1. Pressure type (gauge pressure, Absolute pressure, negative pressure):
2. Pressure Range (-1bar to 0-6bar-16bar-160bar-8000bar):
3. Measure medium (air, oil, water, melt):
4. Medium temperature (-250~-20~0~40~100~150~350~600~800~1200c):
5. Work voltage (3vdc, 5vdc, 10vdc, 24vdc):
6. Analog Signal output (mv/v, 0-5vdc, 0.5-4.5vdc, 0-10vdc or 4-20mA):
7. Thread size (M type G type, NPT, UNF):
8. Elect. Connector: (AMP, Hirschman, Sealed thread, Packard, other):
9. Wire length (0-100m):
10. Digital signal output (RS232, RS485, HART, BUS CAN):
11. Material (steel, aluminum):
12. Location display (point dial, LED, LCD):
13. Explosion proof:
14. Anti-corrosion:
15. Purchase quantity:
