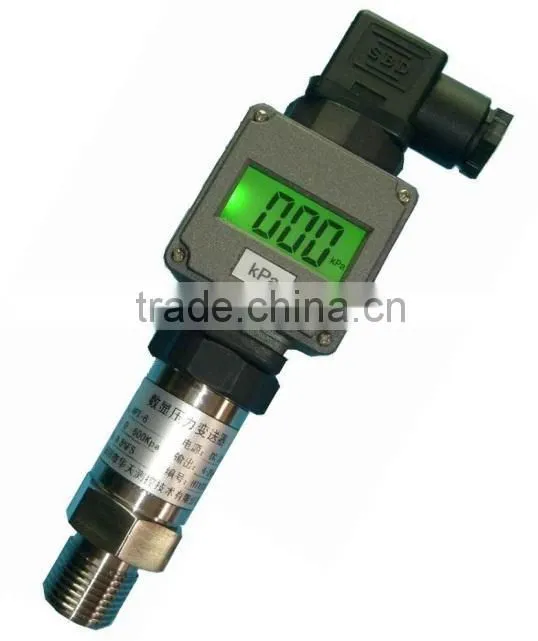

DPT281 600bar Air Pressure Transmitter With Digital Indicator

DPT281 600bar Air Pressure Transmitter With Digital Indicator thumbnail-1
DPT281 600bar Air Pressure Transmitter With Digital Indicator photo-1
US$ 65 - 165 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
DETAIL
Model Number:
DPT281 pressure transmitter with digital indicator
Contact Supplier Request Quote Chat Now
Hunan Detail Sensing Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name DETAIL
Model Number DPT281 pressure transmitter with digital indicator



Product Description

DPT281 600bar air pressure transmitter with digital indicator



Profiles:



DPT281 pressure transducer/transmitters use high quality imported piezoresistive pressure sensor with isolated stainless



steel diaphragm as signal sensing element, through automatic testing, laser trimming compensating zero and sensitivity in



wider temperature range the amplifier circuit is in stainless steel housing, transforming sensor signal into standard output



signal. Through strict component making, semi-finished product and allfinished product testing and aging, the transmitter is



stable and reliable, having excellent flexibility, sensitivity and diversity. The product is widely used for pressure measure and



control of petroleum, chemi-industry, metallurgy, power station and hydrology, etc.















Characters:

  • Accuracy: ≤±0.5%F.S.
  • Wide working temperature scope
  • Advanced digital temperature compensation.
  • Excellent resistance against impact, overload,
    Shock and erosion.
  • Highly-efficient lighting absorption
    and strong RFI & EMI resistance
  • 4-1/2 bits LED display for pressure or level
  • 1.5 times range standard overload.
  • 3 times range burst pressure

Applications:

  • Industrial course testing and control
  • Automatic testing systems
  • Petrochemical industry
  • Hydraulic and pneumatic systems
  • Pump station and water treatment systems
  • Laboratory equipment
  • High temp gas pressure measurement
  • Automatic detection systems
  • Saving water to irrigate
  • And so on



 DPT281 600bar air pressure transmitter with digital indicator

Specification

Model:

Parameter:

DPT281 LED Indicator   Pressure Transducer & Transmitter

Pressure Range:

-1 Bar-0-0.05 Bar.....1000 Bar  Optional

Pressure Type:

Gauge pressure; Absolute pressure; Negative pressure optional.

Overload:

150% F.S.

Burst Pressure

300% F.S.

Accuracy:

(Linearity Hysteresis

Repeatability)

≤ ±0.5%F.S; ≤ ±0.25%F.S by customized.

Including non-lin., rep. and hys.

Optional

Long Stability:

Standard: 0.2%F.S±0.05%

Working Temp:

-20℃~85℃ or -30℃~150℃ by customized

Storage Temp:

-40℃~125℃

Temperature Compensation:

-10℃~65℃(standard); -20℃~70℃ (customized)

Medium compatible:

Compatible with 316L Stainless Steel or 1Cr18Ni9Ti stainless steel

Electronic Wire:

2 Wires

3 Wires

Output:

4~20mA

0~5V

1~5 V

Power Supply:

12~36 V DC

12~36 V DC

12~36Vdc

Zero Temp. Drift:

0.03%FS/℃(≤100kPa),  0.02%FS/℃(>100kPa)

FS Temp. Drift:

0.003%FS/℃(≤100kPa),  0.002%FS/℃(>100kPa)

Body materials:

304 stainless steel; 316L Stainless steel (standard); 1Cr18Ni9Ti stainless steel optional

Local display:

4 -1/2 bits LED local display

LED

Indicator

Specifications:

Dimension: 43*38*17.5 mm;  Non-linear: ±0.02%F.S.;  Display scope: -9999 to +9999

Sampling rate 10 times / sec.;  Working tem range: -30 to +80℃

Overload display ‘ERR’; Backlight suitable for dark environment application.

Electronic connection:

DIN Hirschman Terminal Box

4 Pins and IP65.

Cable length:

Cable or no By Customized.

Cable length standard with 2 meters.

Cable diameter about 6 mm

Pressure

connect port:

1/4’‘NPT male 1/2’‘NPT Female

G1/2’’; G1/4’’male optional. (By Customized)

Dimension:

Length: 183 mm (standard); Body diameter: 27 mm (standard).  *special size by requested*

Water Proof:

IP65

Response time:

≤10ms







 Apply to oil pressure measure,  viscous medium pressure measure

DPT281 600bar air pressure transmitter with digital indicator

Packaging & Shipping



Price, Package and Service



1. Price : EXW, FOB, C&F

2. Payment: T/T in advance, PayPal, Western Union.

3. Packing : standard export packing, including instructions and certificate

4. Leading time : 3-20 working days according to order quantity

5. OEM available

6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder

7. 7 days free replace & 1 year free repair for quality warranty

DPT281 600bar air pressure transmitter with digital indicator





Our Services



1. Customized Product

Detail Sensing provides OEM Pressure Sensors and Custom-Design services.

With know-how technique and mass production capability, we are able to provide the specified sensing solution according to

customer's application.

2. Quality Guarantee

We guarantee product quality for 12 months starting from the date of delivery. For any unproper situation, please feel free to let us know.

3. Shipment & packing

Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required.  By plane or by ship is available, too. Please discuss details with our sales.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.

4. Contact us

We have an active and experienced sales team to serve you on technical questions and business issues.

Just leave us message or click the Online Service for questions and enquiries.

Within 24 working hours, we will come to you at the first time!







Company Information

 DPT281 600bar air pressure transmitter with digital indicator





FAQ



How to place an order

In order to recommend you the most suitable pressure transmitter and make an  accurate quotation, please complete the following information and send to our sales  when you are going to make an inquiry, thanks!


1. Pressure type (gauge pressure, Absolute pressure, negative pressure):
2. Pressure Range (-1bar to 0-6bar-16bar-160bar-8000bar):
3. Measure medium (air, oil, water, melt):
4. Medium temperature (-250~-20~0~40~100~150~350~600~800~1200c):
5. Work voltage (3vdc, 5vdc, 10vdc, 24vdc):
6. Analog Signal output (mv/v, 0-5vdc, 0.5-4.5vdc, 0-10vdc or 4-20mA):
7. Thread size (M type G type, NPT, UNF):
8. Elect. Connector: (AMP, Hirschman, Sealed thread, Packard, other):
9. Wire length (0-100m):
10. Digital signal output (RS232, RS485, HART, BUS CAN):
11. Material (steel, aluminum):
12. Location display (point dial, LED, LCD):
13. Explosion proof:
14. Anti-corrosion:
15. Purchase quantity:
