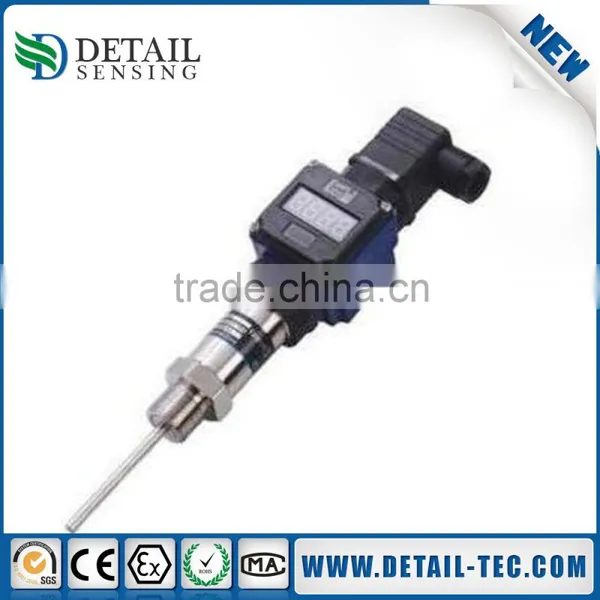

High Performance 4-20mA pt100 temperature transmitter
- 1000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- New 913A0124H01 York FRICK low-pressure pressure sensor, pressure range 0-200psi
- New 913A0124H02 York FRICK high-pressure pressure sensor, pressure range 0-500psi
- HBM S Type S9M Force Load Cell
- HBM CFT+ Force Sensor
- HBM C15 Force Transducer With 4MV/V Signal Output
- HBM CFT Series Piezoelectric Force Transducer
Product Details
Place of Origin: | Hunan, China | Brand Name: | DETAIL | Model Number: | DPT604 temperature transmitter |
Product Description
Digital pt100 temperature sensor for water pipes
Specification
Model: Parameter: | DPT604 Temperature sensor | ||
Pressure Range: | -1 Bar-0-0.05 Bar.....1000 Bar Optional | ||
Pressure Type: | Gauge pressure; Absolute pressure; Negative pressure optional. | ||
Overload: | 150% F.S. | ||
Burst Pressure | 300% F.S. | ||
Accuracy: (Linearity Hysteresis Repeatability) | ≤ ±0.5%F.S; ≤ ±0.25%F.S by customized. Including non-lin., rep. and hys. Optional | ||
Long Stability: | Standard: 0.2%F.S±0.05% | ||
Working Temp: | -50℃~0℃; -50℃~50℃; 0℃~80℃; 0℃~100℃; 0℃~120℃;0℃~150℃, 0℃~400℃ | ||
Storage Temp: | -40℃~125℃ | ||
Temperature Compensation: | -10℃~65℃(standard); -20℃~70℃ (customized) | ||
Medium compatible: | Compatible with 316L Stainless Steel or 1Cr18Ni9Ti stainless steel | ||
Electronic Wire: | 2 Wires | 3 Wires | |
Output: | 4~20mA | 0~5V | 1~5 V |
Power Supply: | 12~36 V DC | 12~36 V DC | 12~36Vdc |
Zero Temp. Drift: | 0.03%FS/℃(≤100kPa), 0.02%FS/℃(>100kPa) | ||
FS Temp. Drift: | 0.003%FS/℃(≤100kPa), 0.002%FS/℃(>100kPa) | ||
Body materials: | 304 stainless steel; 316L Stainless steel (standard); 1Cr18Ni9Ti stainless steel optional | ||
Local display: | 4 -1/2 bits LED local display | ||
LED Indicator Specifications: | Dimension: 43*38*17.5 mm; Non-linear: ±0.02%F.S.; Display scope: -9999 to +9999 Sampling rate 10 times / sec.; Working tem range: -30 to +80℃ Overload display ‘ERR’; Backlight suitable for dark environment application. | ||
Electronic connection: | DIN Hirschman Terminal Box 4 Pins and IP65. | ||
Cable length: | Cable or no By Customized. Cable length standard with 2 meters. Cable diameter about 6 mm | ||
Pressure connect port: | 1/4’‘NPT male 1/2’‘NPT Female G1/2’’; G1/4’’male optional. (By Customized) | ||
Dimension: | Length: 183 mm (standard); Body diameter: 27 mm (standard). *special size by requested* | ||
Water Proof: | IP65 | ||
Response time: | ≤10ms |
