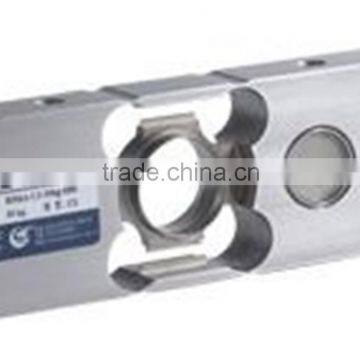

DLC609D Kitchen Scale, Platform Scale Load Cell

Name: DLC609D Kitchen Scale, Platform Scale Load Cell
Brand: DETAIL
SKU: 106807889
Availability: InStock

US$ 30 - 60 MOQ: 1 Piece

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

DETAIL

Model Number:

DLC609D

Hunan Detail Sensing Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen GuangZhou ChangSha

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name DETAIL

Model Number DLC609D

Type Other

Power Supply 9-36VDC

Accuracy 0.0012kg

DLC609D kitchen scale, platform scale load cell

Model: DLC609D Category: single point load cell Range: 6,12,15,30,60kg Dimension: 1305018.5MM/ 1305023.5mm Material: Alloy aluminum/17-4PH stainless steel Application:Platform scale, pricing scale, kitchen scale, postal scale Characteristic: Platform scale weight sensor, counting scale weight sensor

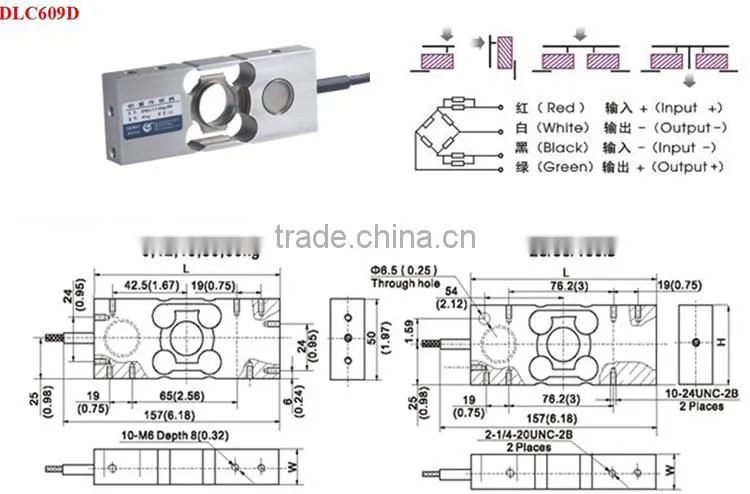

DIMENSION SIZE
CAPACITY	L		H		W
6,12,15,30KG	130 (5.12)		50 (1.96)		18.5 (0.73)
60KG	130 (5.12)		50 (1.96)		23.5 (0.92)
Specifications
capacity		kg		6/12/15/30/60
Accuracy class				C2		C3
Maximum number of verification intervals		n max		2000		3000
Minmum load cell verification interval		v min		Emax/5000		Emax/10000
Combined error		(%FS)		≤0.030		≤0.020
Creep		(%FS/30min)		≤0.024		0≤.016
Temperature effect on sensitivity		(%FS/10℃)		≤0.017		≤0.011
Temperature effect on zero		(%FS/10℃)		≤0.023		≤0.015
Output sensitivity (note 1)		(mv/v)		2.0 ±0.2/2.0 ±0.002/3.0 ±0.2
Input resistance (note 2)		(Ω)		400±20
Output resistance		(Ω)		351±2
Insulation resistance		(MΩ)		≥5000(50VDC)
Zero balance		(%FS)		1.5
Temperature, compensated		(℃)		-10~+40
Temperature, allowed		(℃)		-35~+65
Excitation, Recommended		(V)		5~12(DC)
Excitation, Max		(V)		18(DC)
Safe overload		(%FS)		150
Ultimate overload		(%FS)		300
Corner correction				0.02% load value/ 100mm
