DLC605 platform weighing scale, electronic counting scale load cell
|

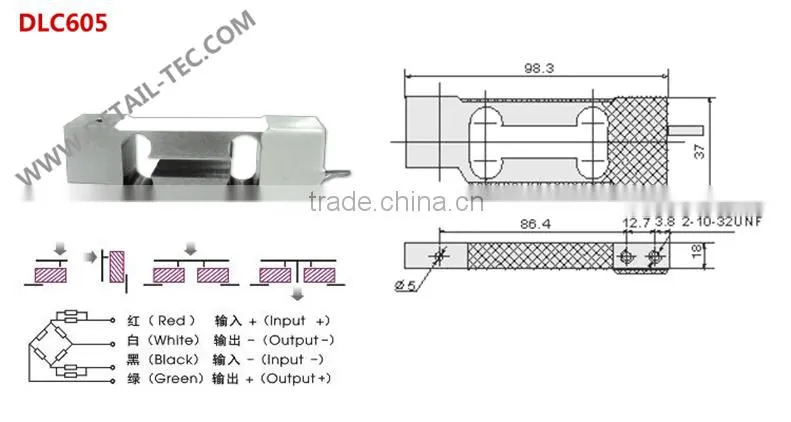

Model: DLC605 Category: single point load cell Range: 0.3kg,1.5kg,3kg,12kg Dimension: 98.3*37*18mm Material: Alloy aluminum Application: electronic counting scale,Platform scale, pricing scale, kitchen scale Characteristic: Platform scale weighing sensor, pricing scale weighing | |||||||||||||
|
REF PIC | |||||||||||||
other model | |||||||||||||
model |
dimension |
Rated load |
Precision |
error |
Rated output |
wire |
thread |
||||||
DLC605D |
110 *33*10 |
0.3~6KG |
C2 |
0.02%FS |
0.9±0.1mv/v |
Ø4*420 |
4*M6 |
||||||
DLC605X |
110 *33*6 |
3~40KG |
C2 |
0.02%FS |
1.6±0.1mv/v |
Ø3*420 |
4*M6 |
||||||
DLC605SA |
110 *33*10 |
3~40KG |
C2 |
0.02%FS |
0.9±0.1mv/v |
ø5*420 |
4*M6 |
||||||
other dimension | |||||||||||||
Rated load |
0.3KG |
1.5KG |
3KG |
12KG |
|||||||||
B |
10 |
18 |
18 |
18 |
|||||||||
Specification | |||||||||||||
comprehensive error: |
0.02%FS |
output resistance: |
350±3Ω |
||||||||||
Rated output: |
1.9±0.003mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||||
Non-linearity: |
0.02%FS |
Excitation voltage: |
9~12VDC |
||||||||||
Hysteresis: |
0.02%FS |
compensated temp: |
-10~+40ºC |
||||||||||
Repeatability: |
0.01%FS |
use temperature: |
-20~+60ºC |
||||||||||
Creep: |
0.02%FS/30MIN, |
temp effect on zero: |
0.03%FS/10ºC |
||||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
||||||||||
Input resistance: |
405±10Ω |
defend grade: |
IP65 |
||||||||||
Aplication:
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (3-20 days) according to your Qty
4.Customized size and spec/OEM available
