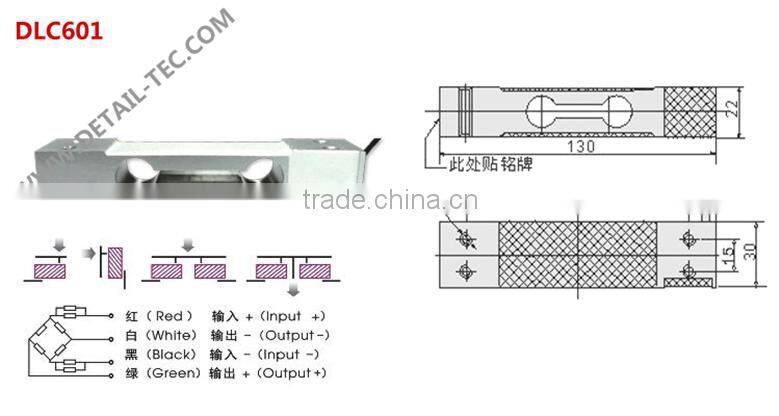

DLC601 100kg platform weighing scale, electronic scale load cell

Model: DLC601

Category: single point load cell

Range:3kg,5kg,6kg,10kg,15kg,20kg,30kg,40kg,50kg,60kg,100kg,120kg

Dimension: 130*30*22mm

Material: Alloy aluminum

Application: Platform scale, pricing scale, electronic scale, kitchen scale,

Characteristic: Platform scale load cell, pricing scale load cell

REF  PIC

other model

model

Dimension

Rated load

Precision

error

Rated output

wire

thread

DLC601S

100 *22*30

3~100KG

C3, C2

0.017%FS

2±0.1mv/v

ø5*420

4*M6

DLC601J

130*23.5*22

3~120KG

C2

0.02%FS

2±0.1mv/v

Ø4*420

4*M6

DLC601X

130*29*11

0.3~2KG

C2

0.02%FS

2±0.1mv/v

Ø4*420

4*M3

DLC601AA

130*22*40

3~120KG

C3, C2

0.017%FS

2±0.1mv/v

Ø4*420

4*M6

Specification

comprehensive error:

0.017%FS

output resistance:

405±10Ω

Rated output:

2±0.003mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.017%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.02%FS

compensated temp:

-10~+40ºC

Repeatability:

0.01%FS

use temperature:

-20~+60ºC

Creep:

0.017%FS/30MIN

temp effect on zero:

0.017% and 0.03%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.014% and 0.02%FS/10ºC

Input resistance:

405±10Ω

defend grade:

IP65
